DATRON CNC Milling Machines

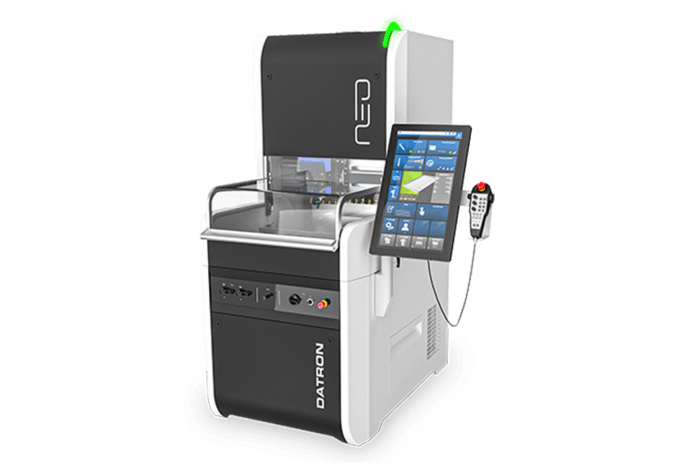

neo Entry
by DATRON
Entry-level DATRON neo: compact 3+1-axis high-speed mill with a 1.0 kW / 27,000 rpm spindle and DATRON next Entry control.
3+1
Axes
520 mm x 420 mm x 220 mm
Traverse path (X x Y x Z)
500 mm x 400 mm x 175 mm (Z = portal passage)
Working area (X x Y x Z)
Ideal For
- Shops starting out in CNC milling
- Plug-and-play setup in a very small footprint
neo Entry Features
Standard features that set this machine apart in demanding manufacturing environments.
Built-In Extras
- 500 x 400 x 175 mm working area in a compact footprint
- Mineral-cast portal construction and machine bed on a steel stand
- 12-station tool-holding fixture
- Minimum-quantity cooling lubrication with 2-nozzle spray ring
- 1.0 kW high-frequency spindle with speeds up to 27,000 rpm
- DATRON next Entry control on a 24″ multi-touch screen with hand-held control unit
DATRON neo Entry CNC Milling Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Axes
- 3+1
- Traverse path (X x Y x Z)
- 520 mm x 420 mm x 220 mm
- Working area (X x Y x Z)
- 500 mm x 400 mm x 175 mm (Z = portal passage)
- Machining spindle
- 1.0 kW HF spindle; direct shank
- Spindle speed
- up to 27,000 rpm
- Tool magazine
- 12 stations tool-holding fixture with tool length probe (optional)
- Machining table
- Mineral-cast portal construction and machine bed, aluminum table, steel stand
- Control system / software
- DATRON next Entry (no additional software options available)
- Operating terminal
- 24″ multi-touch screen with user-friendly hand-held control unit
- Component measurement
- 3D probe Entry (optional)
- Minimum-quantity cooling lubrication
- 2,5 liters coolant tank; 2-nozzles spray ring
- Linear absolute encoders
- –
- Positioning feed
- Up to 12 m/min
- Feed
- Up to 12 m/min
- Installation dimensions with operating terminal (W x D x H)
- 1,320 mm x 1,300 mm x 1,880 mm
- Installation dimensions without operating terminal (W x D x H)
- 805 mm x 1,300 mm x 1,880 mm
- Weight
- Approx. 700 kg
| Axes | 3+1 |
| Traverse path (X x Y x Z) | 520 mm x 420 mm x 220 mm |
| Working area (X x Y x Z) | 500 mm x 400 mm x 175 mm (Z = portal passage) |
| Machining spindle | 1.0 kW HF spindle; direct shank |
| Spindle speed | up to 27,000 rpm |
| Tool magazine | 12 stations tool-holding fixture with tool length probe (optional) |
| Machining table | Mineral-cast portal construction and machine bed, aluminum table, steel stand |
| Control system / software | DATRON next Entry (no additional software options available) |
| Operating terminal | 24″ multi-touch screen with user-friendly hand-held control unit |
| Component measurement | 3D probe Entry (optional) |
| Minimum-quantity cooling lubrication | 2,5 liters coolant tank; 2-nozzles spray ring |
| Linear absolute encoders | – |
| Positioning feed | Up to 12 m/min |
| Feed | Up to 12 m/min |
| Installation dimensions with operating terminal (W x D x H) | 1,320 mm x 1,300 mm x 1,880 mm |
| Installation dimensions without operating terminal (W x D x H) | 805 mm x 1,300 mm x 1,880 mm |
| Weight | Approx. 700 kg |
neo Entry Questions
Answers to common questions about the neo Entry.
The DATRON neo Entry has a working area of 500 mm x 400 mm x 175 mm (Z = portal passage), with a traverse path of 520 mm x 420 mm x 220 mm.
Machining spindle: 1.0 kW HF spindle; direct shank, up to 27,000 rpm. Tool magazine: 12 stations tool-holding fixture with tool length probe (optional).
DATRON machines are quoted per configuration and application. Contact AMT Machine Tools with your parts and production requirements, call 416-675-7760, or request a quote online and we will configure and quote the right DATRON milling machine.
