Hanwha CNC Machine Tool
Why Choose Hanwha CNC Machine Tool?
Six series, one manufacturer
From the compact XP automatic lathes to the three-path XDI32 and the Ø42 mm STL turret-type, the full Hanwha lineup covers a wide range of part diameters and complexity levels, so Canadian shops can standardize on one platform as their production needs grow.
Purpose-built for high-precision industries
Hanwha machines are documented in medical (titanium and stainless implant parts), dental (the dedicated XM20), automotive, electronics, and industrial applications. The tooling ecosystem — including whirling, gear hobbing, and internal coolant-driven units — is designed to handle the demanding materials and tight tolerances those industries require.
Fanuc and Siemens control options
Many models in the XD, XDI, XE, and STL series are available with either Fanuc or Siemens CNC, letting your programming team work in the control environment they already know without retraining or rewiring processes.
Backed by AMT — Canadian sales and support
AMT Machine Tools is the authorized Hanwha dealer in Canada. We provide pre-sale application consultation, installation, operator training, and ongoing technical support. You are not dealing with a cross-border distributor — you have a Canadian team behind your machine.

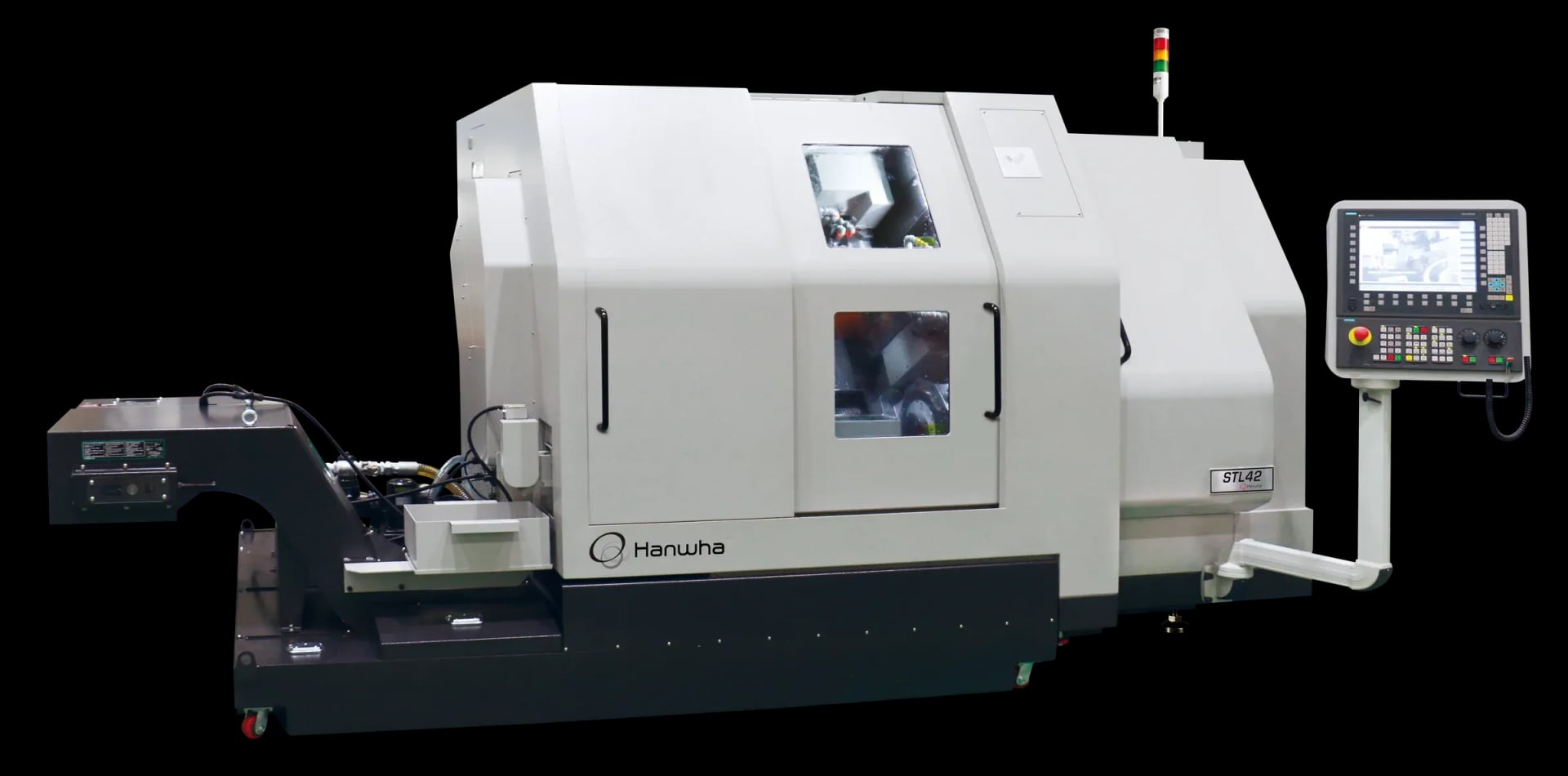

STL42
Nine-axis turret-type Swiss lathe with Siemens 840D control, 42 mm bar capacity, and up to 49 combined gang/turret tool positions for demanding high-mix production.
Hanwha STL42 Swiss-Type CNC Lathe
Max. Machining Diameter
42 mm
NC Controller
Siemens 840D
Number of Axes
9
Main Spindle Speed
6,000 rpm
The Complete Hanwha CNC Machine Tool Lineup
Each system is engineered for specific applications. Compare specs to find the right fit.
Turret-Type Swiss Lathe
STL38
Nine-axis turret-type Swiss lathe with Siemens 840D control, 38 mm bar capacity, and customer-configurable gang-plus-turret tooling supporting up to 49 combined tool positions.
- Max. Machining Diameter
- 32–38 mm
- NC Controller
- Siemens 840D
- Number of Axes
- 9
- Main Spindle Speed
- 6,500 rpm
3-Path Swiss-Type Lathe
XDI32
Three-path, 9-axis opposite-gang Swiss lathe with Fanuc 31iB control, 32 mm bar capacity, and independent tool stages for maximum simultaneous cutting and minimal cycle time.
- Max. Machining Diameter
- 32 mm
- NC Controller
- Fanuc 31iB
- Number of Paths / Axes
- 3 paths / 9 axes
- Main Spindle Speed
- 6,500 rpm
Sliding-Headstock Swiss Lathe
XD42
Heavy-duty 5/6-axis Swiss-type CNC lathe designed for Ø42mm bar stock, combining hydraulic chucking, a high-torque built-in spindle motor, and flexible back-tool and cross-drilling options for complex large-diameter parts.
- Max. Machining Diameter
- Ø42 mm
- Z1 Stroke (Guide Bush / Non-G/B)
- 207 mm (H) / 100 mm (N)
- Main Spindle Speed
- 6,000 rpm
- Main Spindle Motor
- 5.5 / 7.5 kW
Sliding-Headstock Swiss Lathe

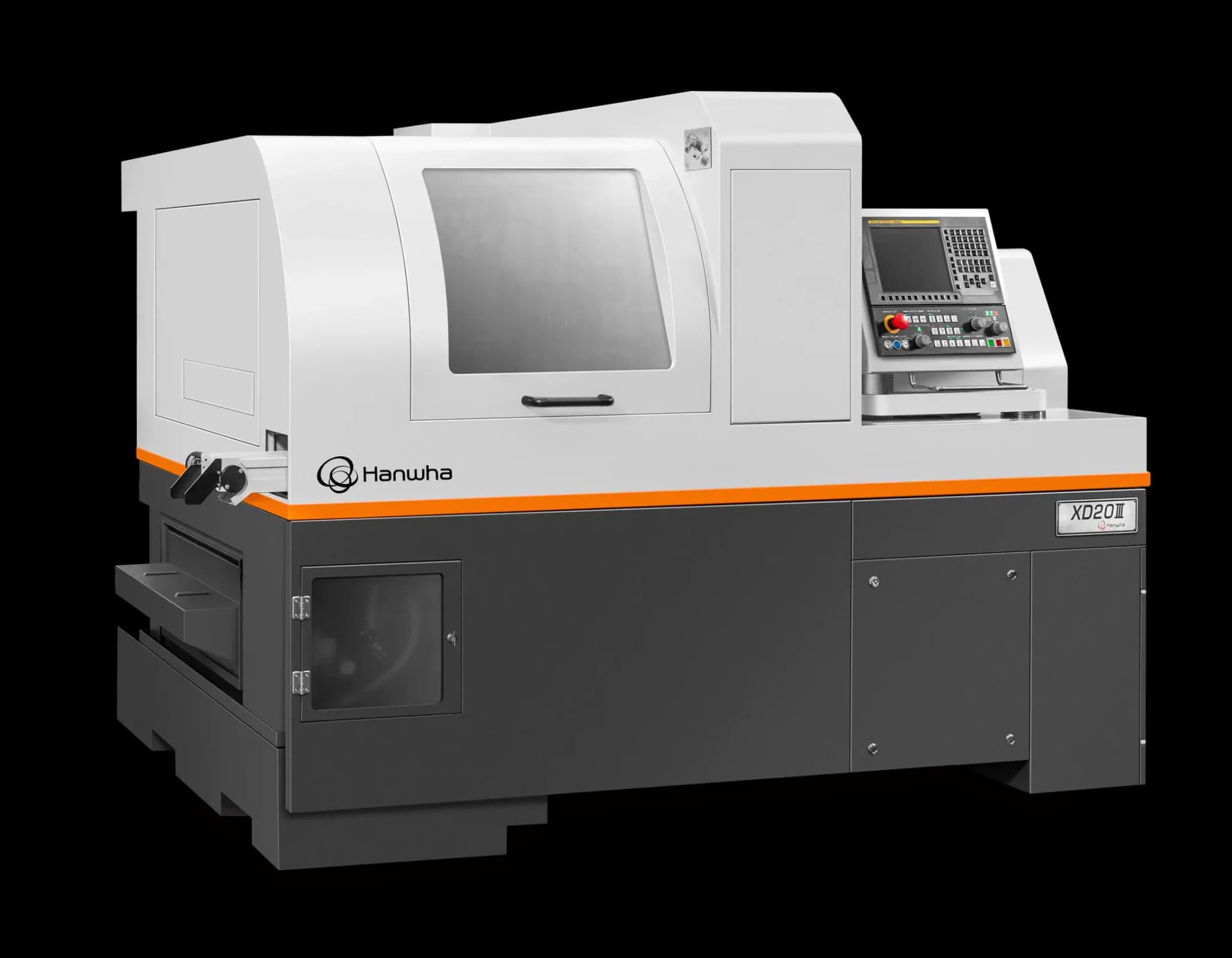

XD20/26III
Third-generation Hanwha XD sliding-headstock Swiss lathe with a Y2-axis back tool unit, convertible guide bush, and Fanuc or Siemens control for Ø20 and Ø26 mm bar stock.
- Max. Machining Diameter
- Ø20 / Ø26 mm
- Z1 Stroke (Guide Bush)
- 240 mm
- Main Spindle Speed
- 10,000 rpm (Ø20) / 8,000 rpm (Ø26)
- NC Controller
- Hanwha Fanuc-i / Siemens 828D
Sliding-Headstock Swiss Lathe

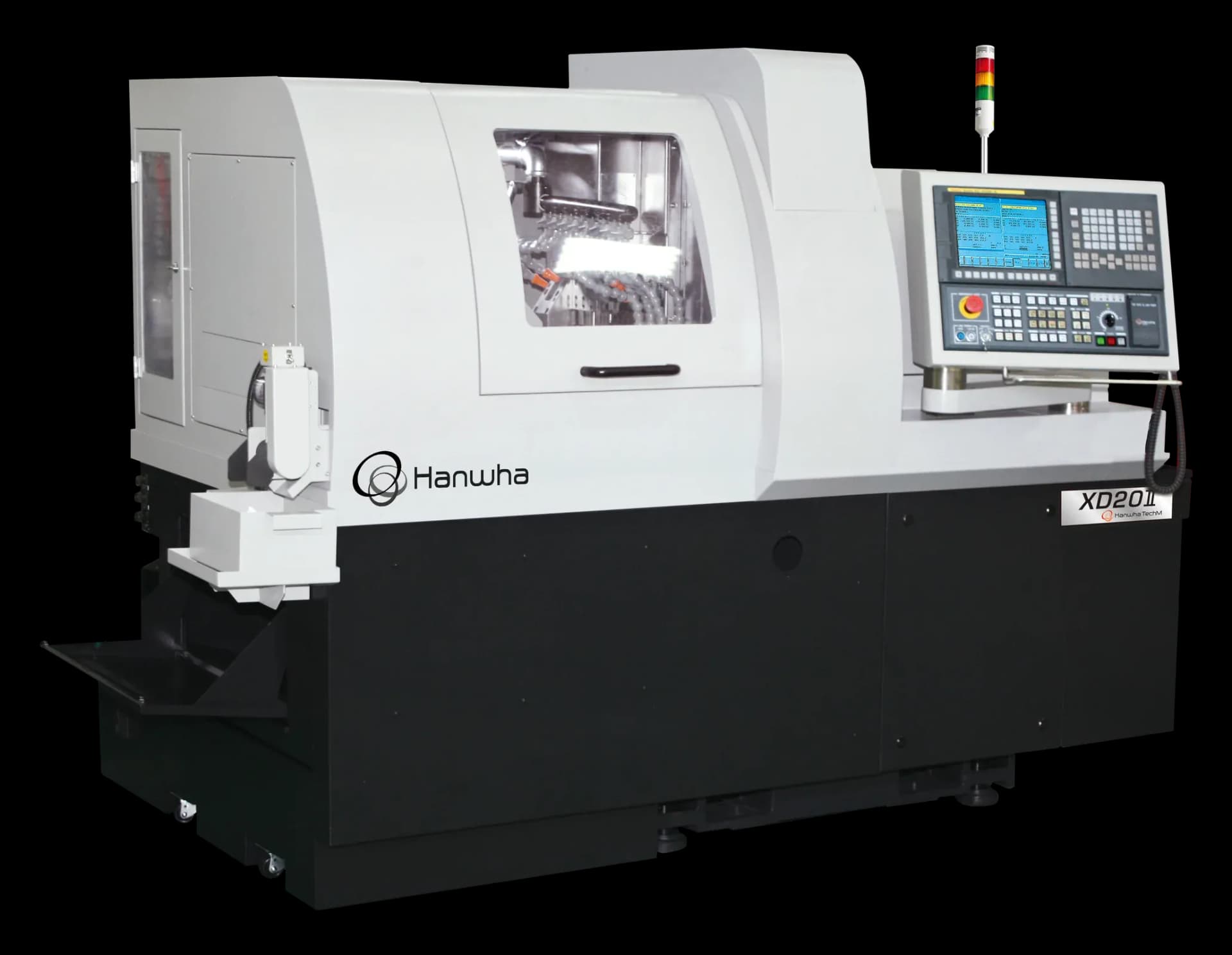

XD20/26II
Hanwha's best-selling 5-axis sliding-headstock Swiss lathe for Ø20 and Ø26 mm bar, with a wide range of modular cross and back tool options and Fanuc or Siemens control.
- Max. Machining Diameter
- Ø20 / Ø26 mm
- Z1 Stroke (Guide Bush — Fanuc)
- 210 mm
- Z1 Stroke (Guide Bush — Siemens)
- 240 mm
- Main Spindle Speed
- 10,000 rpm (Ø20) / 8,000 rpm (Ø26)
Sliding-Headstock Swiss Lathe

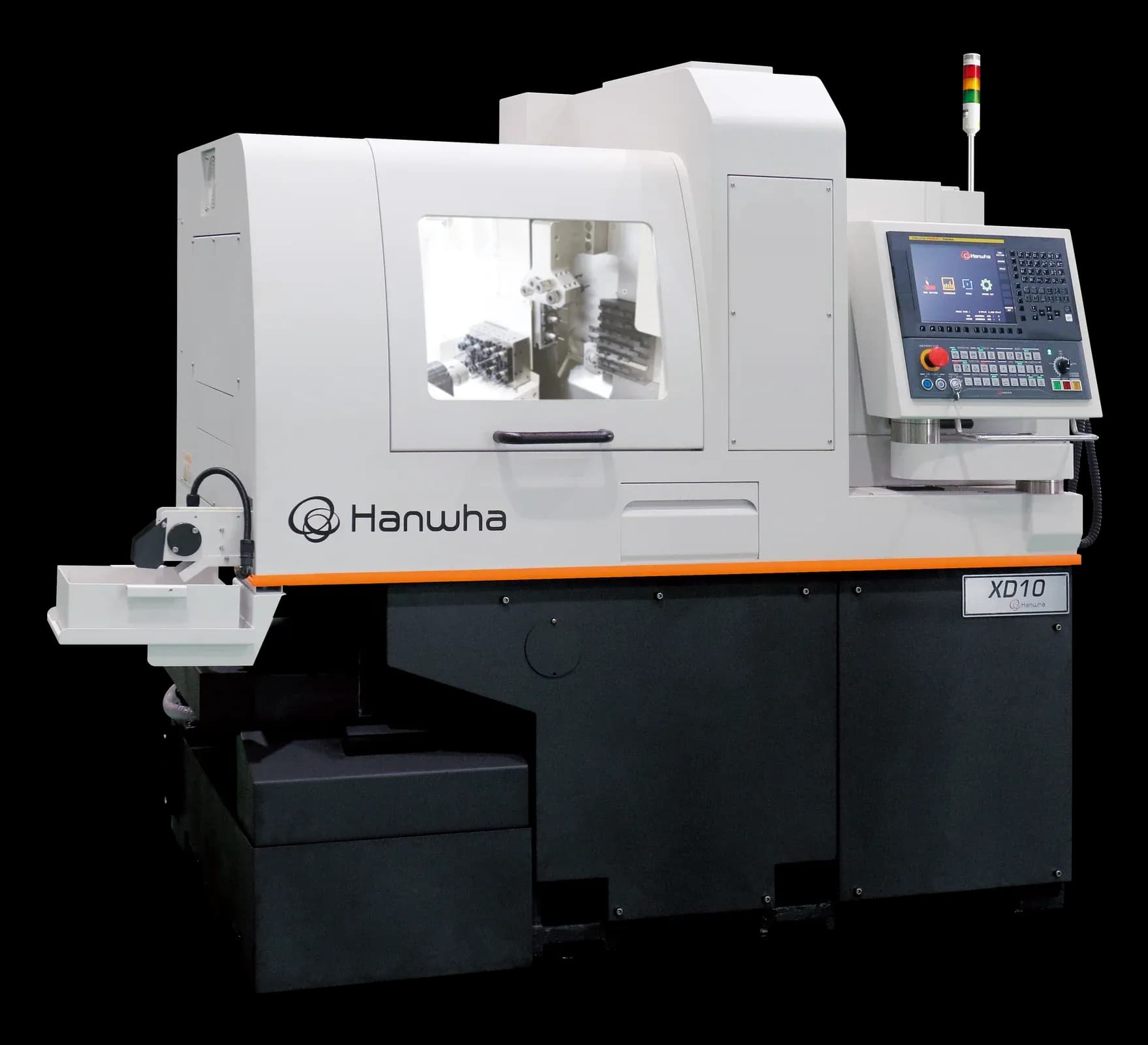

XD10
Compact Hanwha XD10 high-productivity Swiss-type lathe for Ø10 mm bar with a 15,000 rpm main spindle, Y2-axis back tool unit, and 5 or 6-axis configuration for small precision parts.
- Max. Machining Diameter
- Ø10 mm
- Z1 Stroke
- 155 mm
- Main Spindle Speed
- 15,000 rpm
- Main Spindle Motor
- 2.2 / 3.7 kW
Sliding-Headstock Swiss Lathe

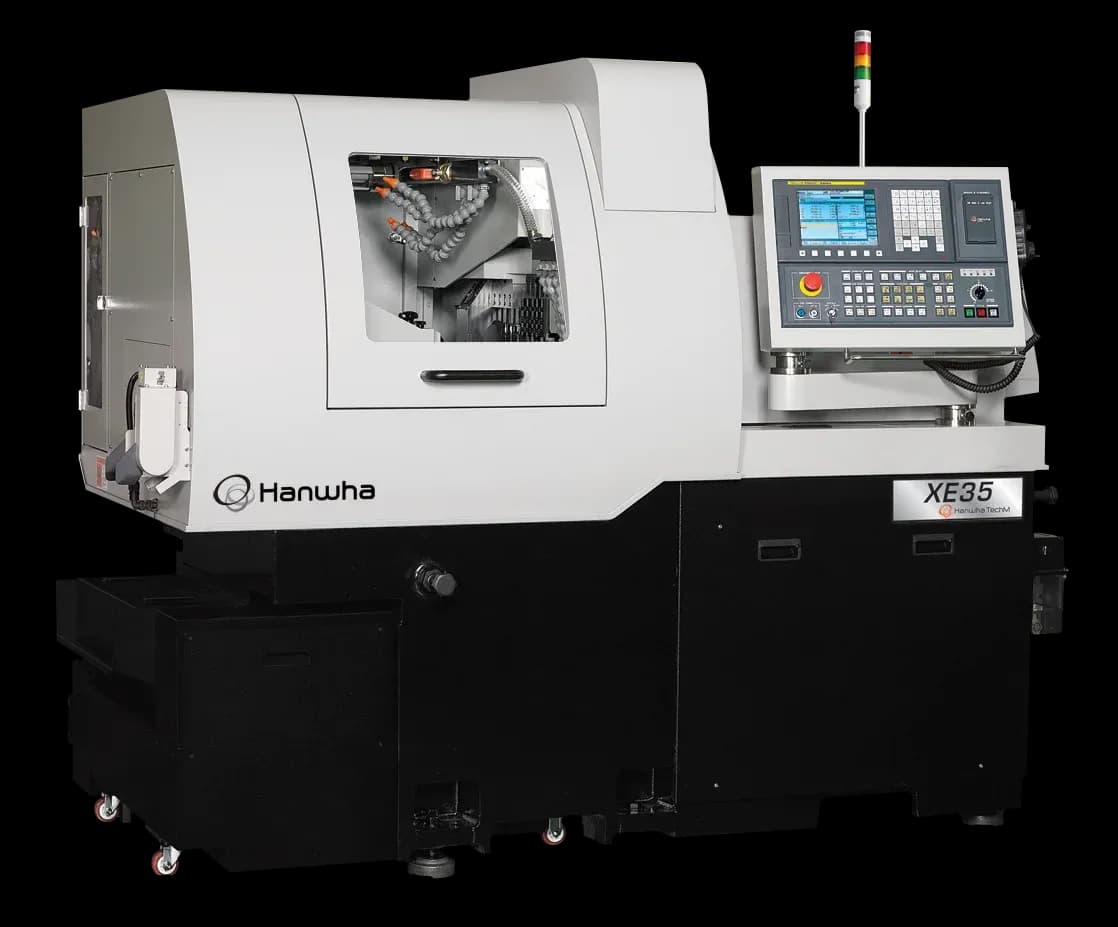

XE35
A reliable 5-axis sliding-headstock Swiss lathe for bar stock up to Ø35 mm, offering a compact and cost-effective entry point into the Hanwha XE series.
- Max. Machining Diameter
- Ø35 mm
- NC Controller
- Hanwha Fanuc-i
- Number of Axes
- 5
- Main Spindle Speed
- 6,500 rpm
Sliding-Headstock Swiss Lathe

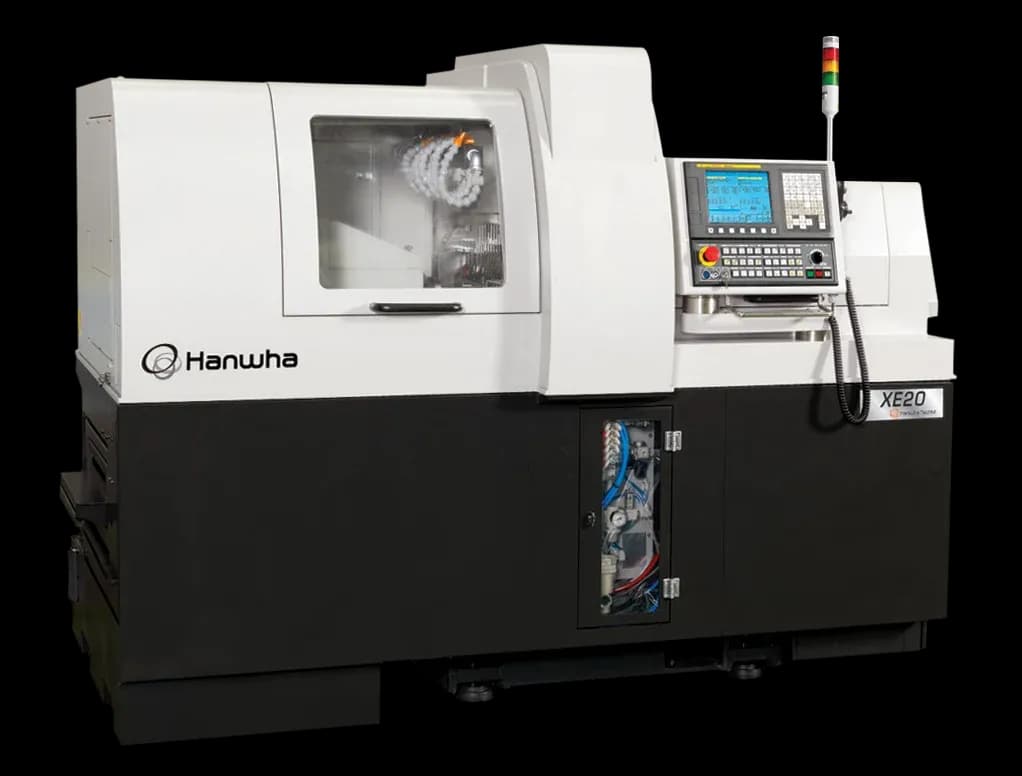

XE20/26
A reliable 5-axis sliding-headstock Swiss lathe available in Ø20 mm and Ø26 mm bar capacities, combining a high-speed main spindle with flexible cross and back tooling at an accessible price point.
- Max. Machining Diameter
- Ø20 mm (XE20) / Ø26 mm (XE26)
- NC Controller
- Hanwha Fanuc-i
- Number of Axes
- 5
- Main Spindle Speed
- 10,000 rpm (Ø20) / 8,000 rpm (Ø26)
Swiss-Type Lathe for Dental Parts

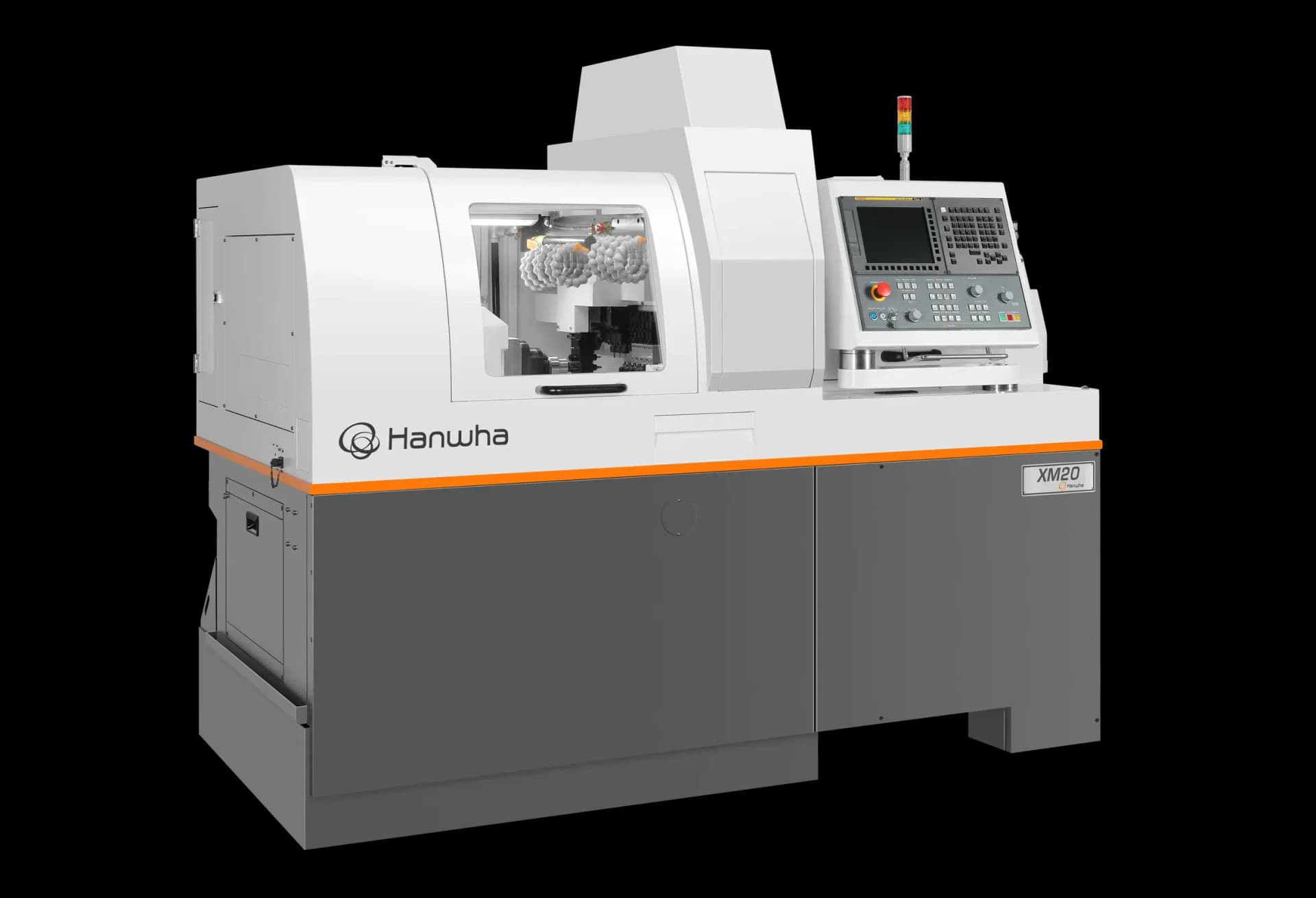

XM20
A 7-axis Swiss-type automatic lathe purpose-built for dental components, delivering stable high-precision output through a structure engineered to minimise thermal deformation.
- Max. Machining Diameter
- Ø20 mm (option: Ø25 mm)
- NC Controller
- Fanuc 32i-B Plus
- Number of Axes
- 7
- Main Spindle Speed
- 10,000 rpm
Sliding-Headstock Swiss Lathe

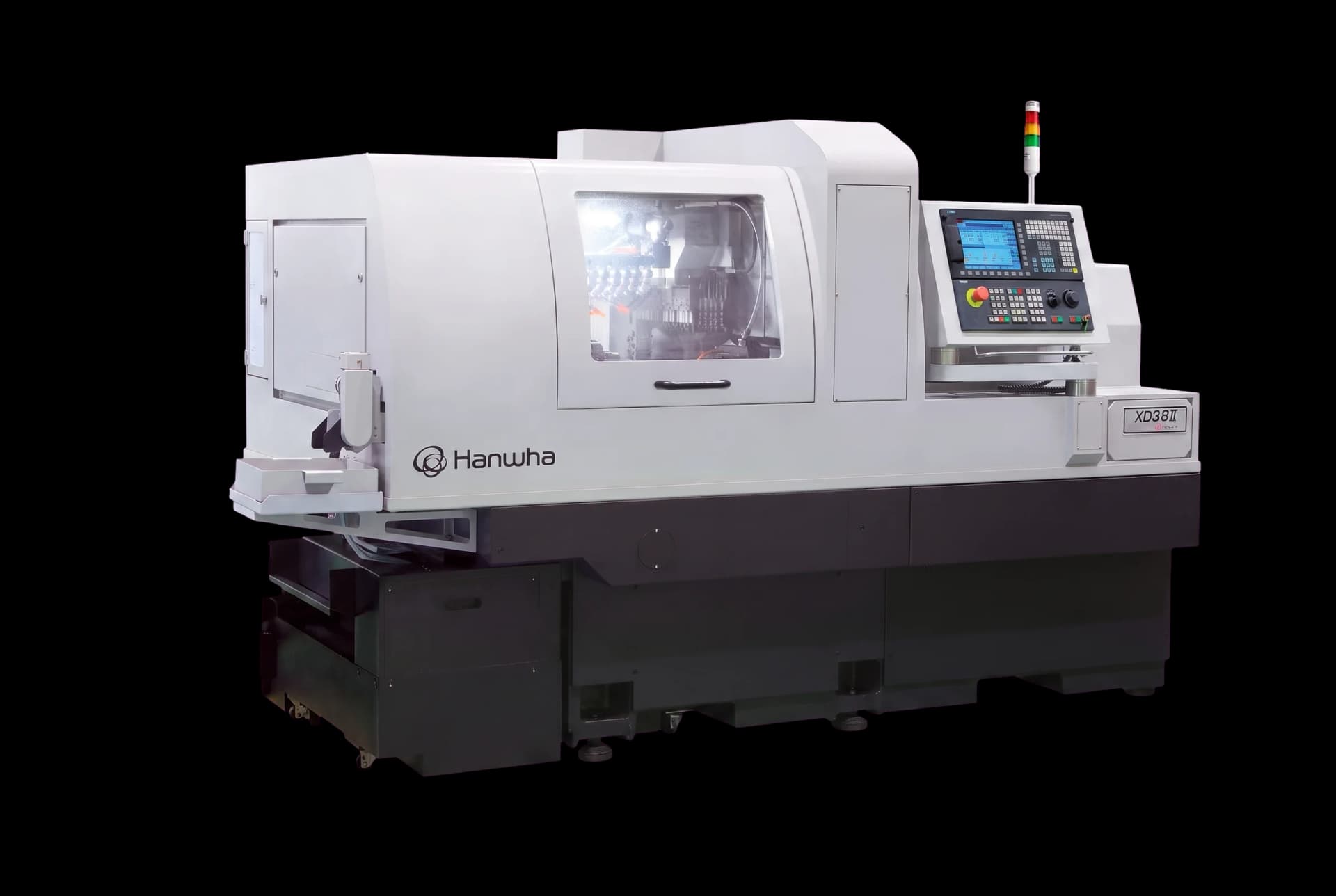

XD38II-R
Heavy-duty 5/6-axis Swiss lathe for Ø38mm bar stock featuring extended Z1 and cross-axis strokes, an enlarged tool-to-tool distance, and best-in-class cross-drill motor output for demanding cutting and milling applications.
- Max. Machining Diameter
- Ø38 mm
- Z1 Stroke (Guide Bush / Non-G/B)
- 320 mm (H) / 120 mm (N)
- Main Spindle Speed
- 6,500 rpm
- Main Spindle Motor
- 5.5 / 7.5 kW (Fanuc) / 23 kW (Siemens)
Sliding-Headstock Swiss Lathe

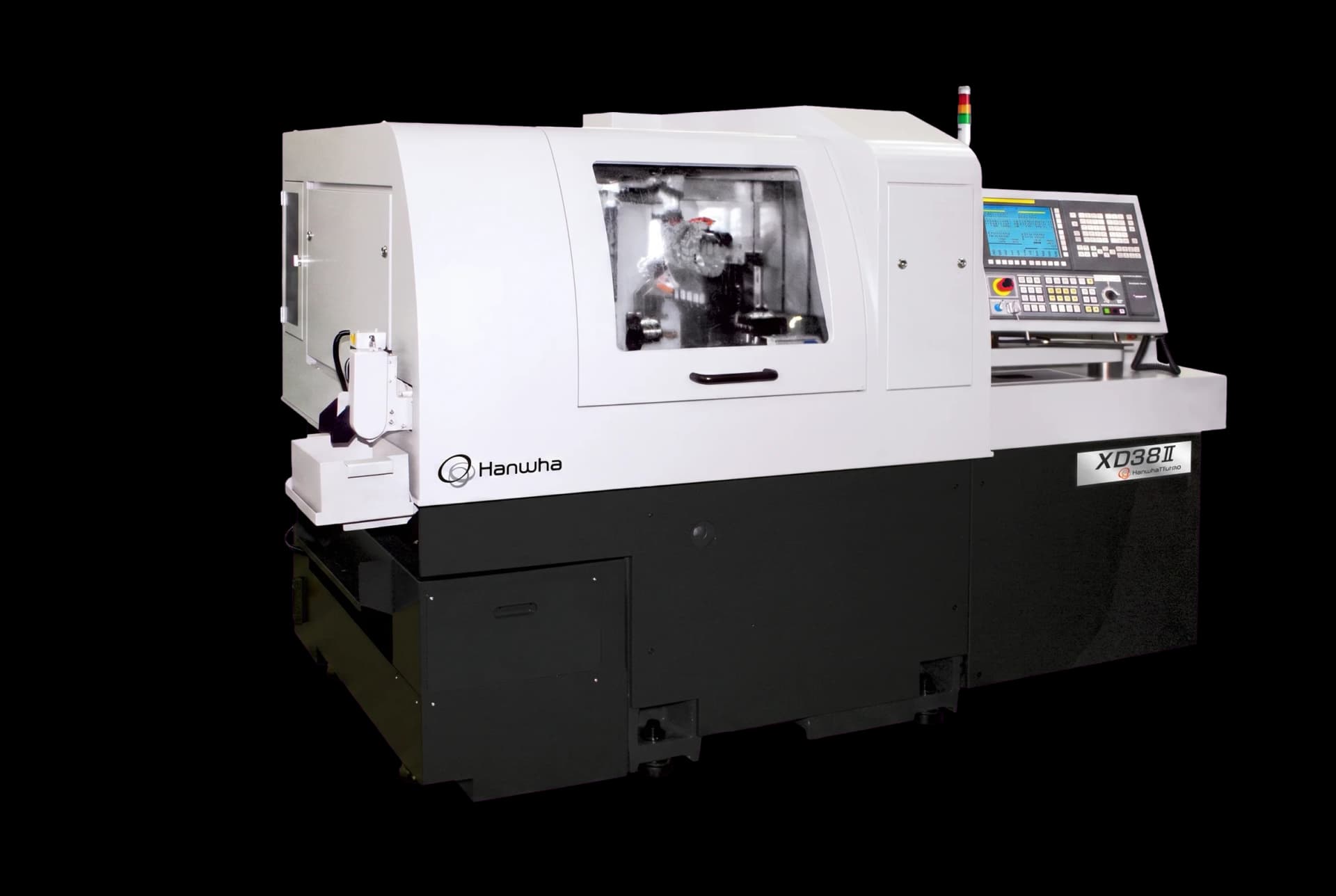

XD38II
Versatile 5/6/7-axis Swiss-type CNC lathe for Ø38mm bar stock with a broad choice of guide-bush configurations, sub spindle motor types, and a customisable back-tool layout scaling from 4 to 8 positions.
- Max. Machining Diameter
- Ø32 / 38 mm
- Z1 Stroke (by config)
- 320 mm (H) / 80 mm (N) / 142 mm (H) + 80 mm (N) for NH / 320 mm (He)
- Main Spindle Speed
- 6,500 rpm
- Main Spindle Motor
- 5.5 / 7.5 kW
Sliding-Headstock Swiss Lathe

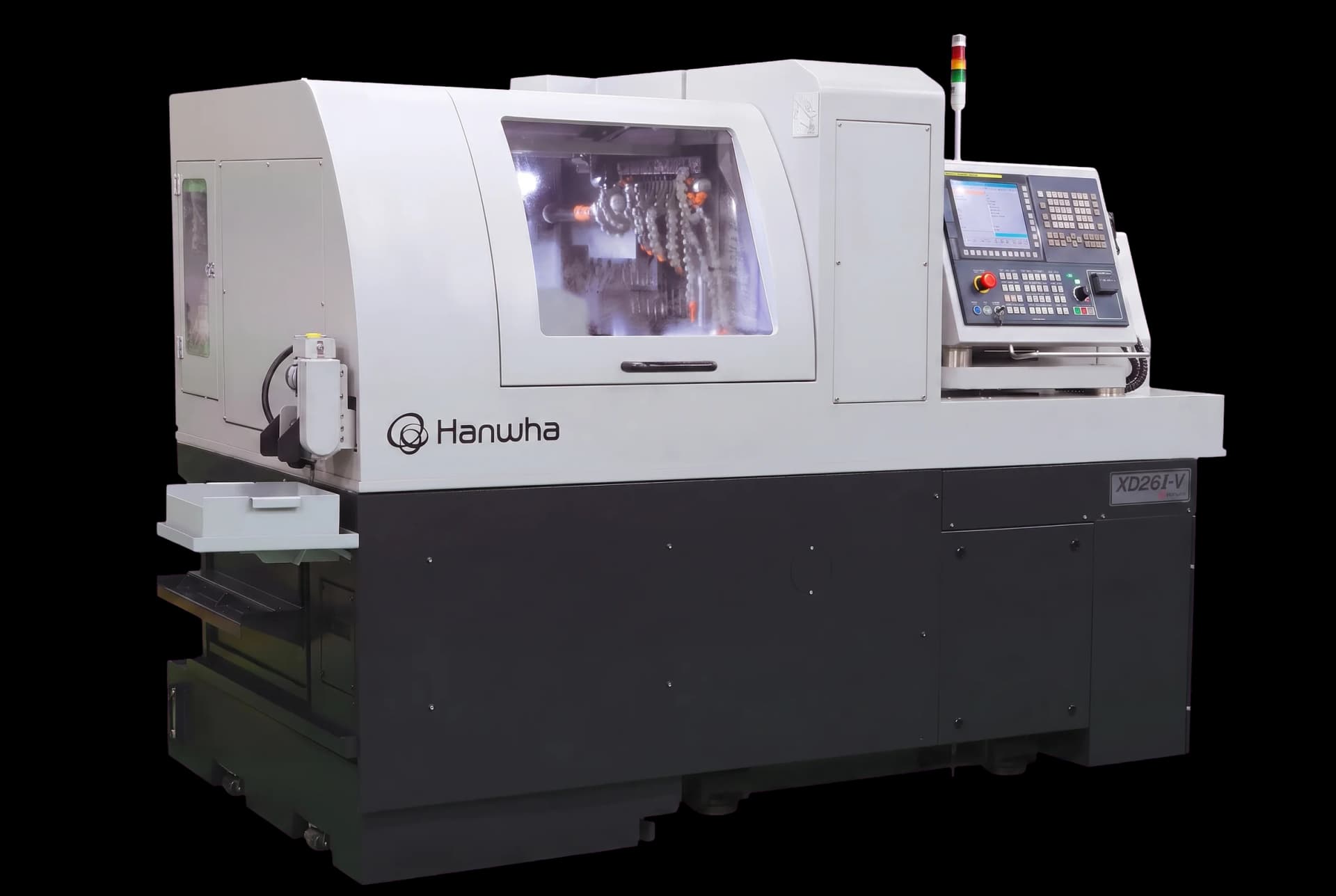

XD20/26II-V
High-complexity Hanwha XD20/26II-V sliding-headstock Swiss lathe with B-axis cross tooling and Y2-axis back tooling for multi-feature parts up to Ø20 and Ø26 mm in a single setup.
- Max. Machining Diameter
- Ø20 / Ø26 mm
- Z1 Stroke (Guide Bush)
- 210 mm
- Main Spindle Speed
- 10,000 rpm (Ø20) / 8,000 rpm (Ø26)
- NC Controller
- Fanuc 32i-B / Siemens 828D (B-axis: Siemens 840D)
Sliding-Headstock Swiss Lathe

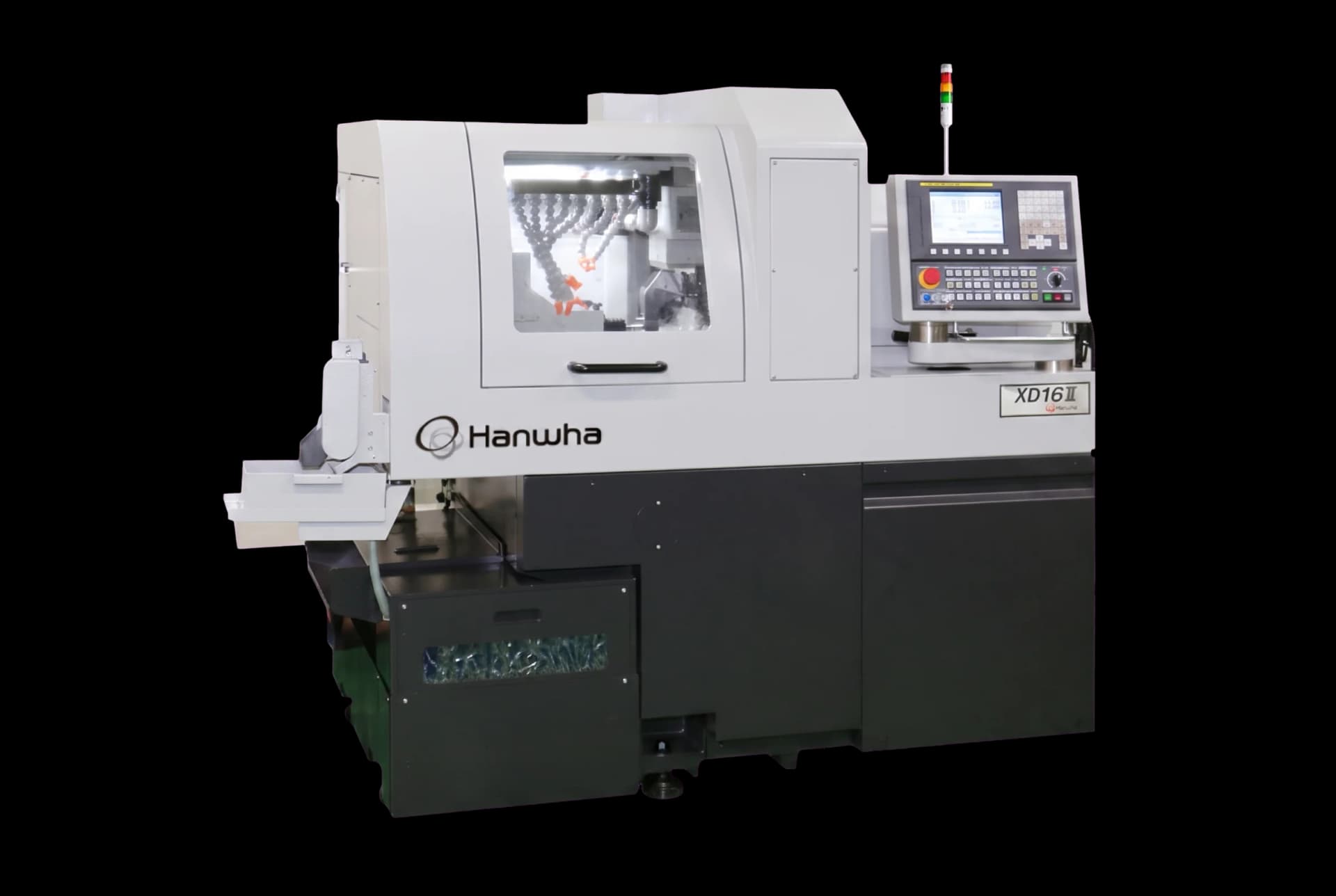

XD16III
High-speed 5-axis Hanwha XD16III sliding-headstock Swiss lathe for Ø16 mm bar, with a 15,000 rpm main spindle, gear-driven back tool, and Hanwha Fanuc-i control.
- Max. Machining Diameter
- Ø16 mm
- Z1 Stroke (Guide Bush)
- 155 mm
- Main Spindle Speed
- 15,000 rpm
- Main Spindle Motor
- 2.2 / 3.7 kW
4-Axis Automatic Lathe

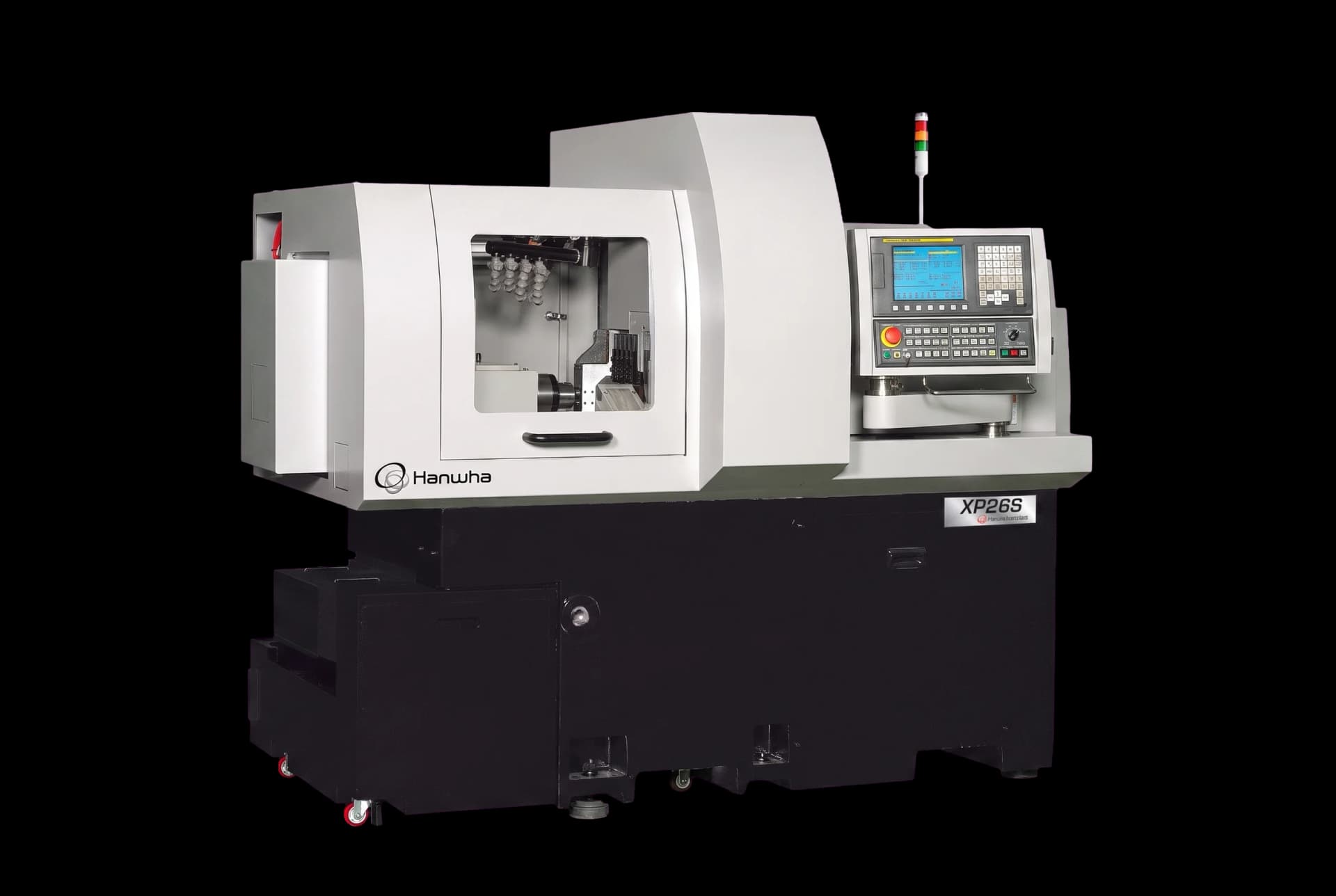

XP20/26/32S
A compact, cost-efficient 4-axis CNC automatic lathe available in Ø20 mm, Ø26 mm, and Ø32 mm bar capacities, designed as a high-precision, high-productivity upgrade path for shops currently running cam-operated automatic lathes.
- Max. Machining Diameter
- Ø20 mm (XP20S) / Ø26 mm (XP26S) / Ø32 mm (XP32S)
- NC Controller
- Hanwha Fanuc-i
- Number of Axes
- 4
- Main Spindle Speed
- 8,000 rpm
4-Axis Automatic Lathe

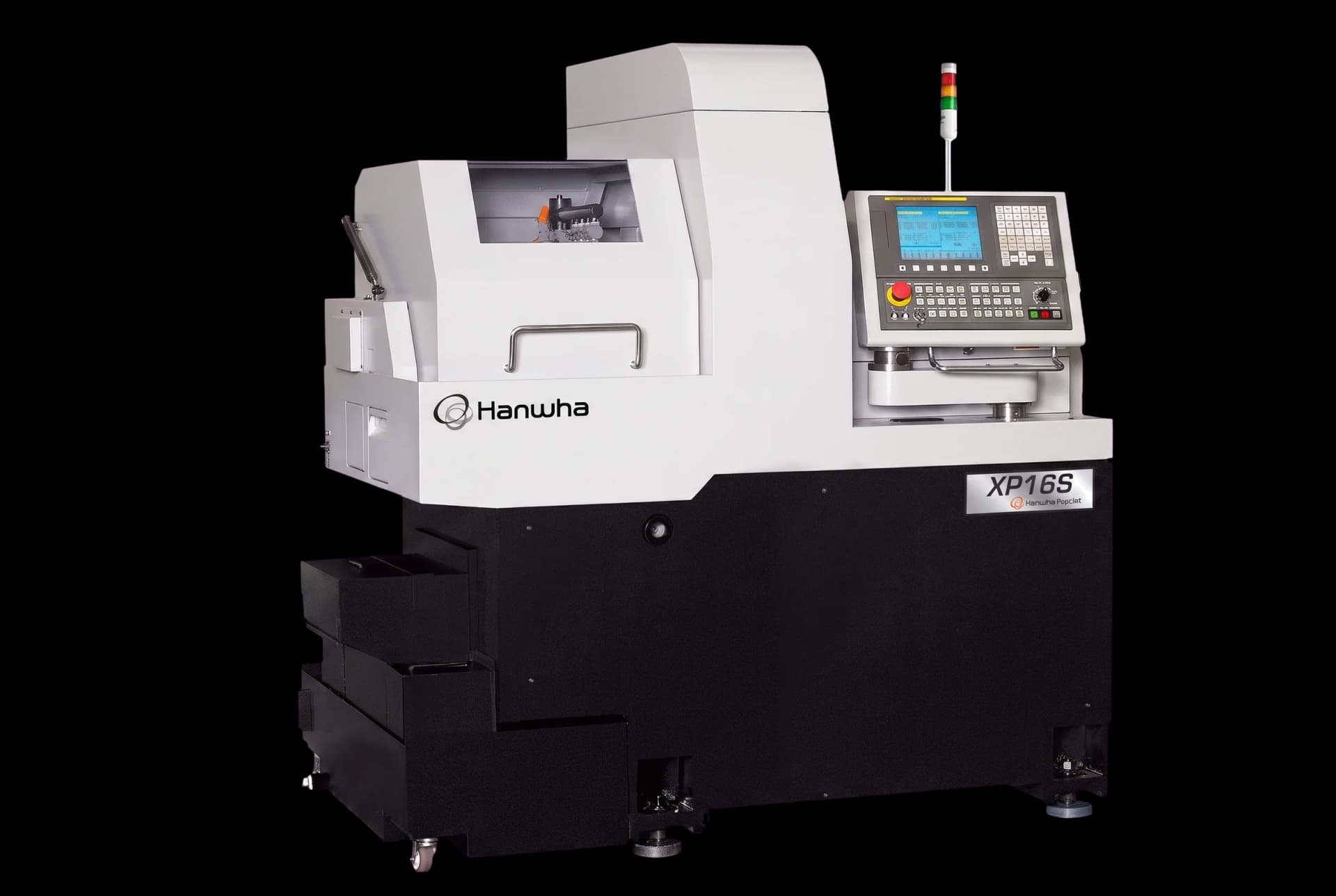

XP12/16S
A compact and cost-efficient 4-axis CNC automatic lathe for small-diameter bar stock up to Ø12 mm and Ø16 mm, with a high-speed 12,000 rpm main spindle suited to fast-cycling precision parts in brass, aluminium, and stainless.
- Max. Machining Diameter
- Ø12 mm (XP12S) / Ø16 mm (XP16S)
- NC Controller
- Hanwha Fanuc-i
- Number of Axes
- 4
- Main Spindle Speed
- 12,000 rpm
Hanwha CNC Machine Tool Questions
Answers to common questions about our hanwha cnc machine tool products.
Yes. AMT Machine Tools is the authorized Canadian dealer for Hanwha CNC Swiss lathes. We provide sales, application consultation, installation, training, and after-sale technical support. Hanwha's North American operations are run by Hanwha Machinery America Inc. in Schaumburg, IL, which backs the machines sold through AMT.
The Hanwha lineup runs from Ø10 mm (XD10, XP12/16S) at the small end up to Ø42 mm (STL42, XD42) at the large end, with a range of models in between covering Ø16 mm, Ø20 mm, Ø26 mm, Ø32 mm, and Ø38 mm. Most models are available in two diameter variants — for example, the XD20/26 series accepts either Ø20 or Ø26 mm bar stock.
Yes. The Hanwha XM20 is a Swiss-type CNC lathe developed specifically for dental component machining, released in 2024. It is designed for the small-diameter, high-precision titanium work typical of dental implant and abutment production.

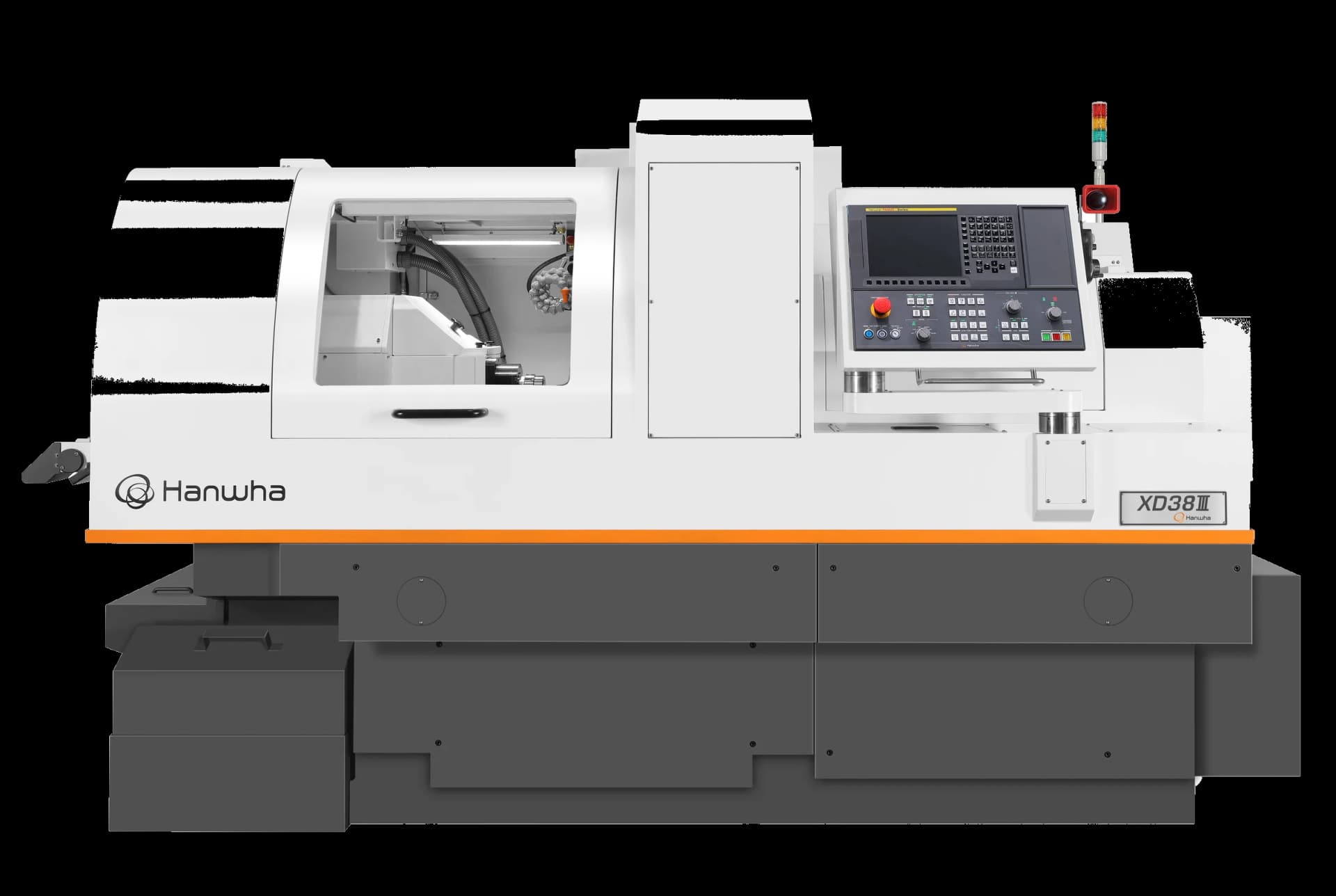

Both are available depending on the model. The STL series uses Siemens, the XDI32 uses Fanuc, the XD42 uses Fanuc, and several mid-range models including the XD38III, XD38II-R, XD20/26III, and XD20/26II-V are available with either Fanuc or Siemens. The XP automatic lathes use Fanuc throughout. AMT can advise which control options apply to a specific model when you enquire.
Hanwha Swiss lathes are used across medical and dental, automotive, electronics, aerospace and defence, and hydraulics and industrial fittings. The machines are suited to small-diameter, high-precision parts in materials including titanium, stainless steel, aluminium alloy, brass, and free-machining steels.
The XD series are sliding-headstock Swiss-type lathes with gang or comb-style tool layouts, covering Ø10 to Ø42 mm. The STL series (STL38, STL42) uses a turret tool layout instead of a gang, offering a different tooling architecture suited to shops that prefer turret-style setup. Both series produce high-precision turned parts; the choice often comes down to tooling preference and the part mix in your shop.
Ready to Discuss Your Hanwha CNC Machine Tool Solution?
Our team has 62+ years of experience helping Canadian manufacturers find the right CNC equipment for their production needs.
