XD20/26III

by Hanwha

Third-generation Hanwha XD sliding-headstock Swiss lathe with a Y2-axis back tool unit, convertible guide bush, and Fanuc or Siemens control for Ø20 and Ø26 mm bar stock.

Ø20 / Ø26 mm

Max. Machining Diameter

240 mm

Z1 Stroke (Guide Bush)

10,000 rpm (Ø20) / 8,000 rpm (Ø26)

Main Spindle Speed

XD20/26III
Sliding-Headstock Swiss Lathe

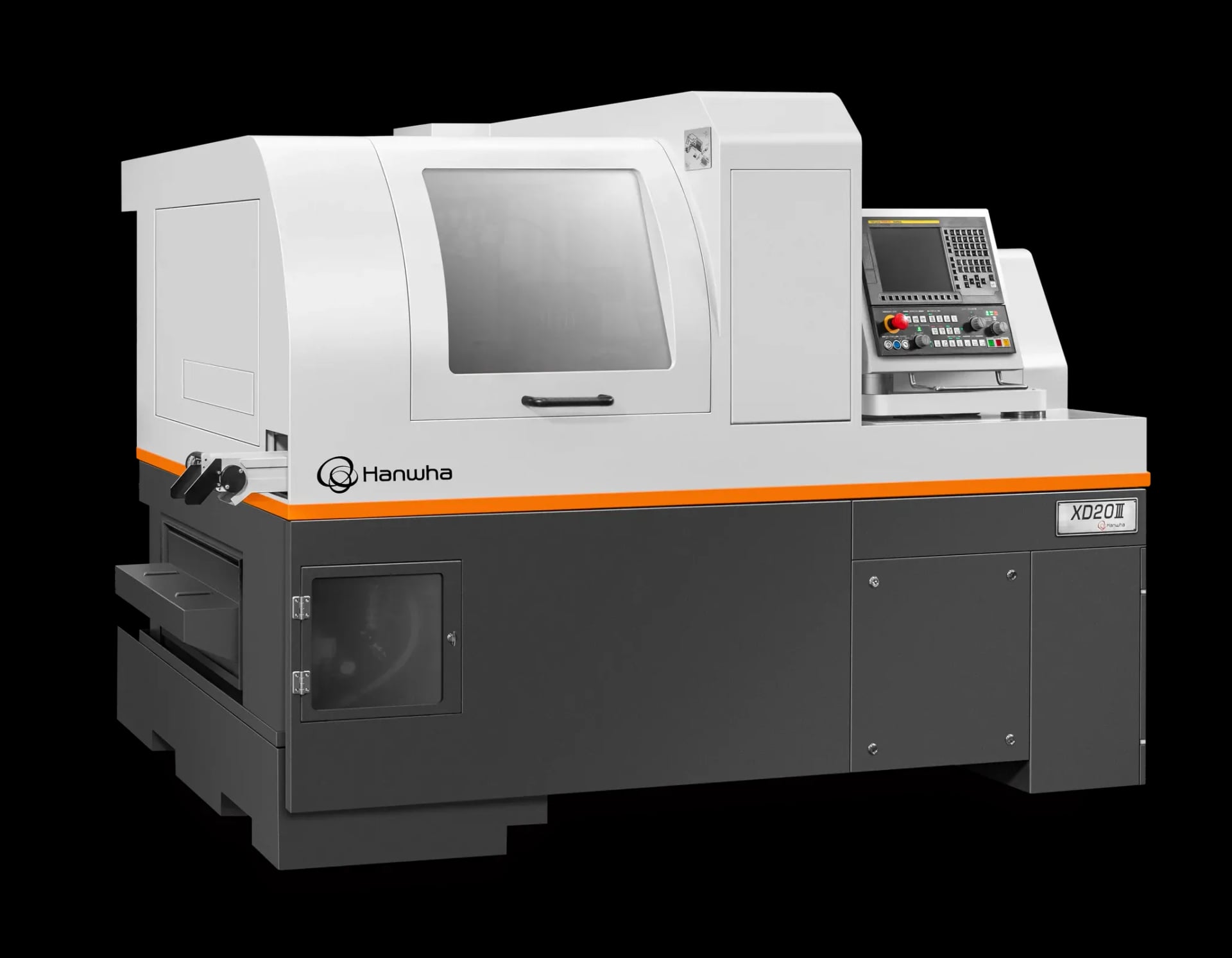

The Hanwha XD20/26III is the third-generation evolution of Hanwha's popular mid-diameter XD platform, handling bar capacities of up to Ø20 mm or Ø26 mm in a single convertible machine. The headline addition over its predecessor is a standard Y2-axis back tool post carrying eight ER16 tools (four fixed, four driven) that enables complex backworking operations without requiring a separate machine pass. A gear-driven modular back tool design makes routine tool changes straightforward and keeps the back-tool system compatible with XD20/26II tooling. The guide bush unit is convertible between guide bush (H) and non-guide bush (N) configurations, giving shops the flexibility to run both long slender parts and shorter workpieces efficiently on the same machine. With a guide bush, Z1 stroke extends to 240 mm for Ø20 mm bar or 240 mm for Ø26 mm bar; without it, stroke is 60 mm (Ø20) or 80 mm (Ø26). The main spindle reaches 10,000 rpm for the 20 mm variant and 8,000 rpm for the 26 mm variant, powered by a 2.2/3.7 kW motor (Ø20) or 2.2/5.5 kW motor (Ø26) on Fanuc, and 16 kW on Siemens. The cross drilling and milling unit carries five ER16 tools as standard (1.0 kW Fanuc / 1.02 kW Siemens motor), with an option to upgrade to a more powerful 2.2 kW Fanuc motor for heavier cross-milling work. The front tool post holds five ER16M tools at Ø25 mm shank, while the OD gang carries six □12 mm holders for Ø20 mm or five □16 mm holders for Ø26 mm. An optional off-centre drill unit adds two ER16 positions. The sub-spindle runs at 8,000 rpm and is motor-driven, with an off-centre drill option available. AMT Machine Tools supplies and supports the XD20/26III across Canada.

Ideal For

  • Job shops running mixed Ø20 and Ø26 mm bar work on a single machine
  • Shops transitioning from XD20/26II seeking more back-tool capability
  • High-mix precision turning in automotive, medical, and electronics
  • Operations requiring both guide bush and non-guide bush flexibility
  • Canadian precision machining facilities seeking Hanwha dealer support
Key Features

XD20/26III Features

Standard features that set this machine apart in demanding manufacturing environments.

Precision & Performance

  • Y2-axis back tool post with eight ER16 positions (four fixed, four driven) enables complex backworking in a single setup
  • Third-generation structural upgrades deliver improved rigidity and thermal stability compared to XD20/26II
  • Cross drilling and milling unit with five gear-modular ER16 tools; optional upgrade to 2.2 kW Fanuc motor for heavier cross-milling
  • Motor-driven sub-spindle with optional off-centre drill unit for secondary operations

Built-In Extras

  • Convertible guide bush (NH) configuration switches between guide bush and non-guide bush modes to suit both long and short workpiece runs
  • Extended Z1 stroke of 240 mm in guide bush mode accommodates longer turned components
  • Compatible with XD20/26II tooling modules on the back tool system, protecting existing tooling investment
  • Choice of Hanwha Fanuc-i or Siemens 828D control system to match shop-floor preferences
Full Specifications

Hanwha XD20/26III Swiss-Type CNC Lathe Technical Details

Complete specifications, standard features, and optional upgrades.

Max. Machining Diameter
Ø20 mm / Ø26 mm
Z1 Stroke (Guide Bush, H)
240 mm
Z1 Stroke (Non-Guide Bush, N — Ø20)
60 mm
Z1 Stroke (Non-Guide Bush, N — Ø26)
80 mm
Bar / Chuck Size — Main (Ø20)
TF25
Bar / Chuck Size — Sub (Ø20)
TF25
Guide Bush (Ø20)
TD25-NS
Bar / Chuck Size — Main (Ø26)
TF32
Bar / Chuck Size — Sub (Ø26)
TF32
Guide Bush (Ø26)
CD25
Configuration
NH (convertible guide bush)
FAQ

XD20/26III Questions

Answers to common questions about the XD20/26III.

The XD20/26III handles bar stock up to Ø20 mm or Ø26 mm. Both capacities are available in one convertible machine — the guide bush and chuck sizes differ between the two configurations (TF25/TD25-NS for Ø20 mm; TF32/CD25 for Ø26 mm).

The XD20/26III is available with either a Hanwha Fanuc-i control or a Siemens 828D control. Both options support the machine's full 5-axis (plus Y2) capability.

The XD20/26III is the third-generation model. Its key upgrade over the XD20/26II is a standard Y2-axis back tool post carrying eight ER16 tools, an enhanced machine structure for better rigidity, and an option for a more powerful cross-drill motor (2.2 kW Fanuc). The back tool system also uses the same modular tooling as the XD20/26II, so existing tool holders transfer across.
