Why Choose Revolution Machine Works Rotary Transfer Machines?
Three ways to get rotary-transfer capacity
A traditional turnkey rebuild, a CNC-converted Servomat, or a new Italian-built DM2 Technomat — one supplier covers the full range from a like-new cam machine to a fully programmable Fanuc CNC transfer machine, so you buy exactly the capability the job needs.
Remanufactured to OEM specification
Rebuilt Hydromats start from a proven Hydromat casting and table, with every unit, valve, drive, and control rebuilt back to original specification and certified — delivering the output of a new machine at a fraction of the cost, backed by an 18-month parts-and-labour warranty.
Modern CNC conversion
RMW was the first in the industry to fit stand-alone DM2 Fanuc CNC ballscrew units to a rebuilt Hydromat base. A Servomat replaces cam-and-hydraulic actuation with programmable servo axes, so changeovers that once meant new cams become a program edit.
Backed by AMT in Canada
AMT Machine Tools provides pre-sale application consultation, installation, and after-sale support for every RMW machine sold in Canada. You are working with a Canadian team, not sourcing a rebuild across the border unsupported.
HW 25/12
Turnkey remanufactured Hydromat-type rotary transfer machine for parts up to 1 inch (25 mm) round, with 12 horizontal and 6 vertical stations and a 0.500-second index.
HW 25/12 Rebuilt Hydromat Rotary Transfer Machine
Max. Round Capacity
1 in (25 mm)
Horizontal Stations
12
Vertical Stations
6
Index Time
0.500 sec
The Complete Revolution Machine Works Rotary Transfer Machines Lineup
Each system is engineered for specific applications. Compare specs to find the right fit.
Rebuilt Hydromat
HB 45/12
Turnkey remanufactured Hydromat-type rotary transfer machine for parts up to 1 3/4 inch round, with 12 horizontal and 6 vertical stations and a 0.700-second index.
- Max. Round Capacity
- 1 3/4 in
- Horizontal Stations
- 12
- Vertical Stations
- 6
- Index Time
- 0.700 sec
Rebuilt Hydromat
HB 32/45-16
Turnkey remanufactured Hydromat-type rotary transfer machine for parts up to 1 3/4 inch round, with 16 horizontal and 8 vertical stations for the most complex parts in the rebuilt line.
- Max. Round Capacity
- 1 3/4 in
- Horizontal Stations
- 16
- Vertical Stations
- 8
- Index Time
- 0.8 sec
Rebuilt Hydromat
HS 12
Turnkey remanufactured Hydromat-type rotary transfer machine for large blanks up to a 4-inch cube, with 12 horizontal and 6 vertical stations and part lengths to 8 inches.
- Max. Blank
- 4 in cube
- Max. Round Capacity
- 1 3/4 in
- Horizontal Stations
- 12
- Vertical Stations
- 6
Rebuilt Hydromat

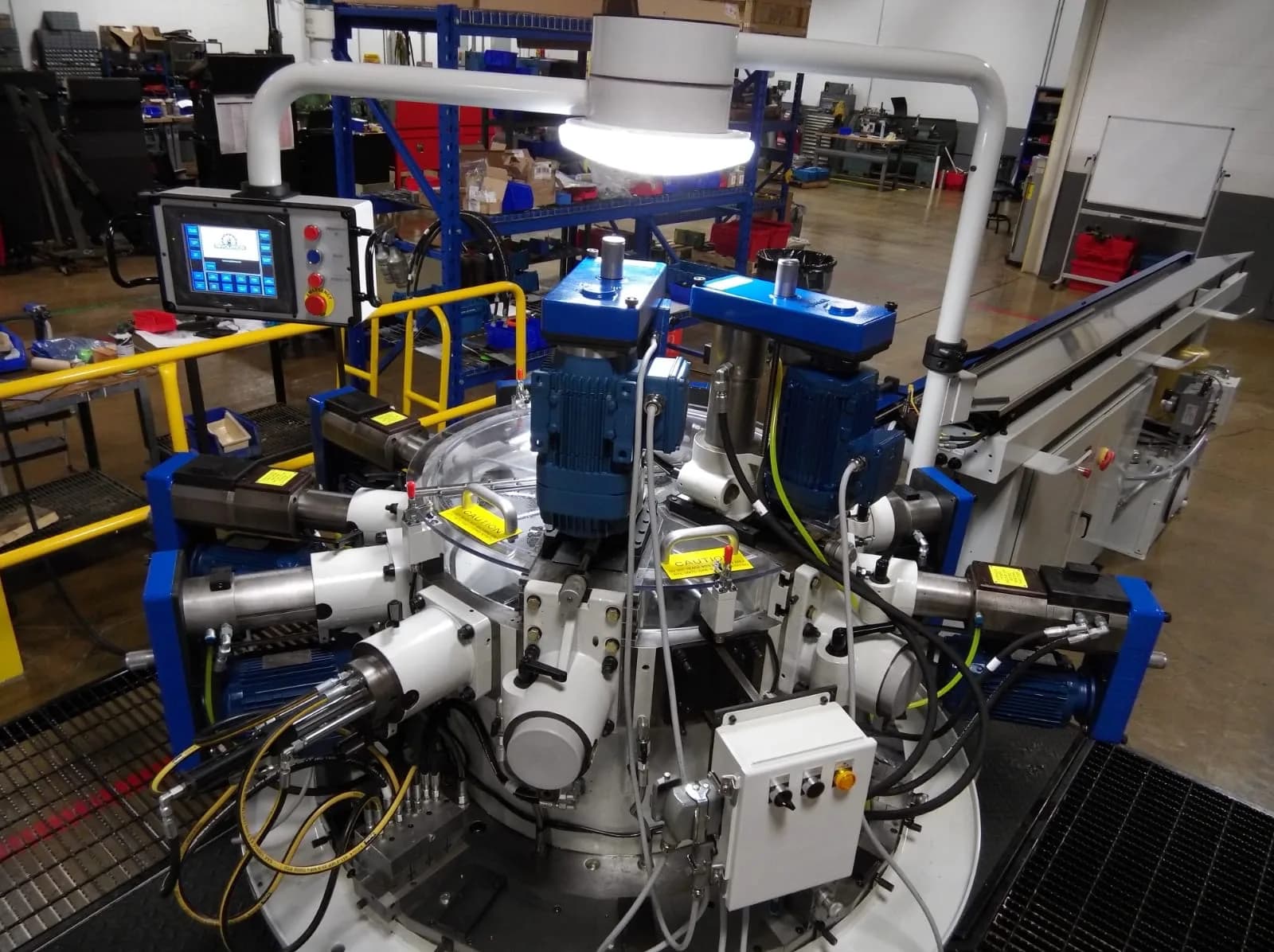

HS 16
Turnkey remanufactured Hydromat-type rotary transfer machine for large blanks up to a 3-inch cube, with 16 horizontal and 8 vertical stations for complex large-envelope parts.
- Max. Blank
- 3 in cube
- Max. Round Capacity
- 1 3/4 in
- Horizontal Stations
- 16
- Vertical Stations
- 8
Servomat

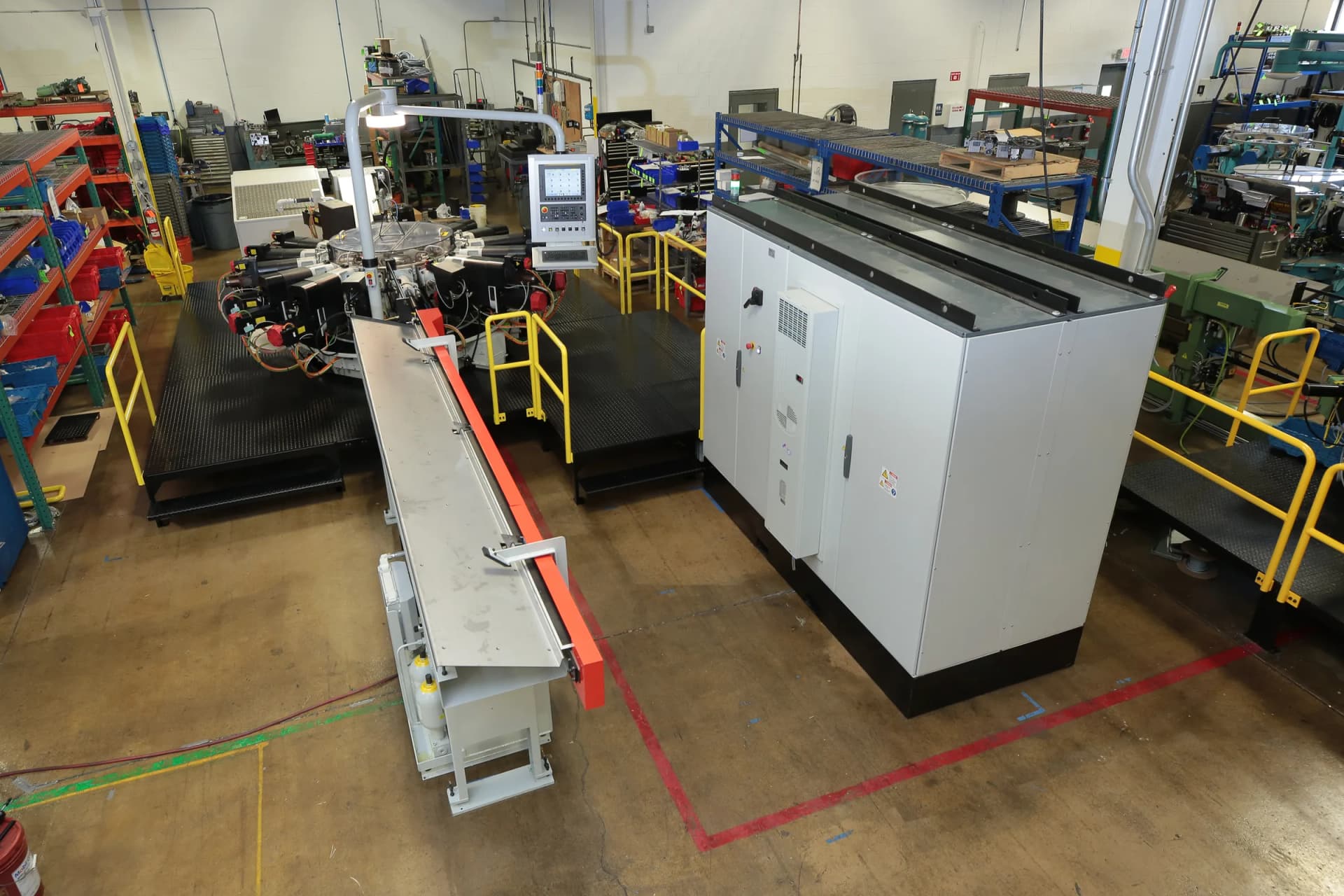

Servomat 25mm-12
CNC-converted rotary transfer machine for parts up to 1 inch (25 mm) round — a rebuilt Hydromat base fitted with DM2 Fanuc CNC ballscrew units and Fanuc 30iB control.
- Max. Round Capacity
- 1 in (25 mm)
- Horizontal Stations
- 12
- Vertical Stations
- 6
- Index Time
- 0.500 sec
Servomat

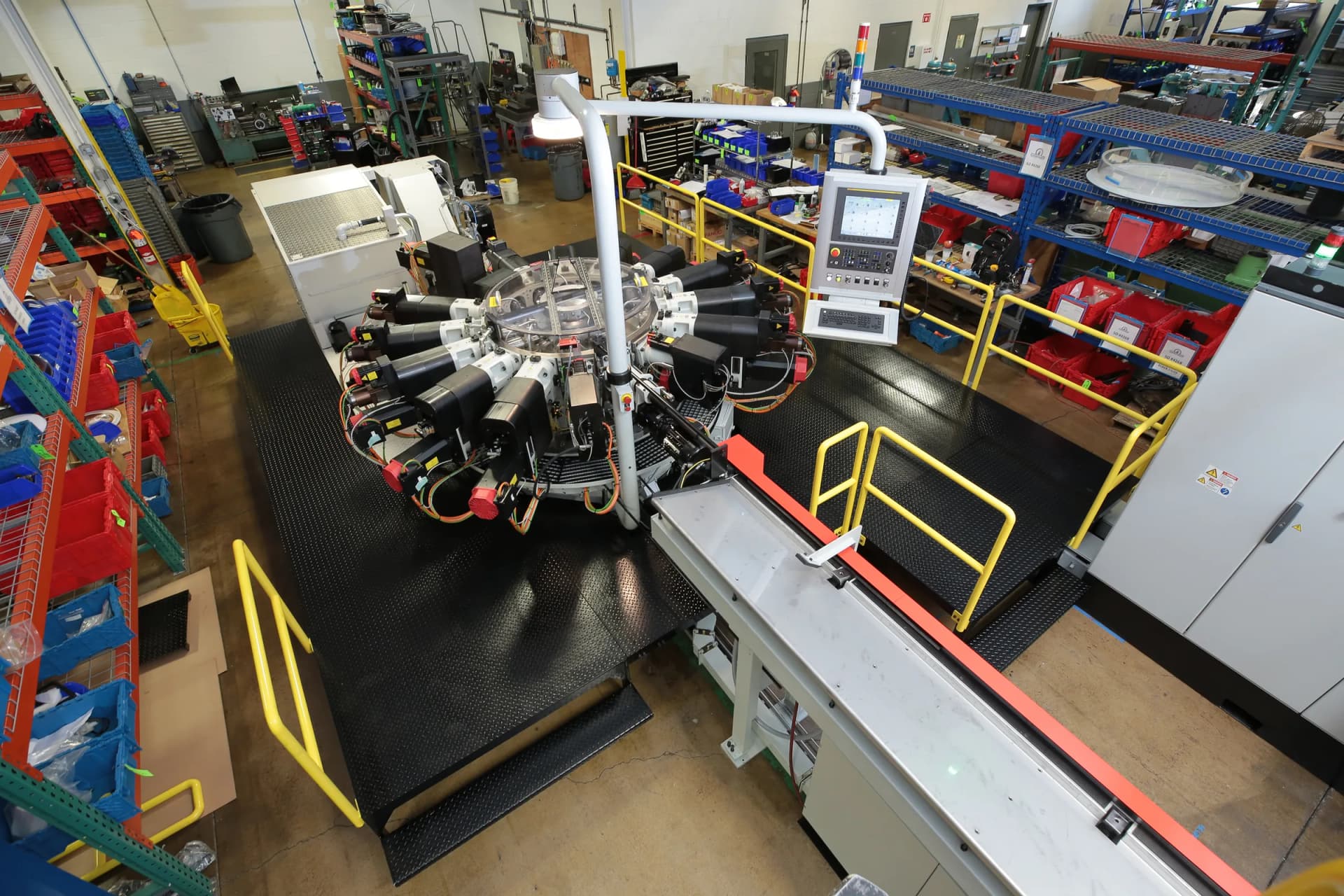

Servomat 45mm-12
CNC-converted rotary transfer machine for parts up to 1 3/4 inch round — a rebuilt Hydromat base with DM2 Fanuc CNC ballscrew units, 12/6 stations, and Fanuc 30iB control.
- Max. Round Capacity
- 1 3/4 in
- Horizontal Stations
- 12
- Vertical Stations
- 6
- Index Time
- 0.700 sec
Servomat

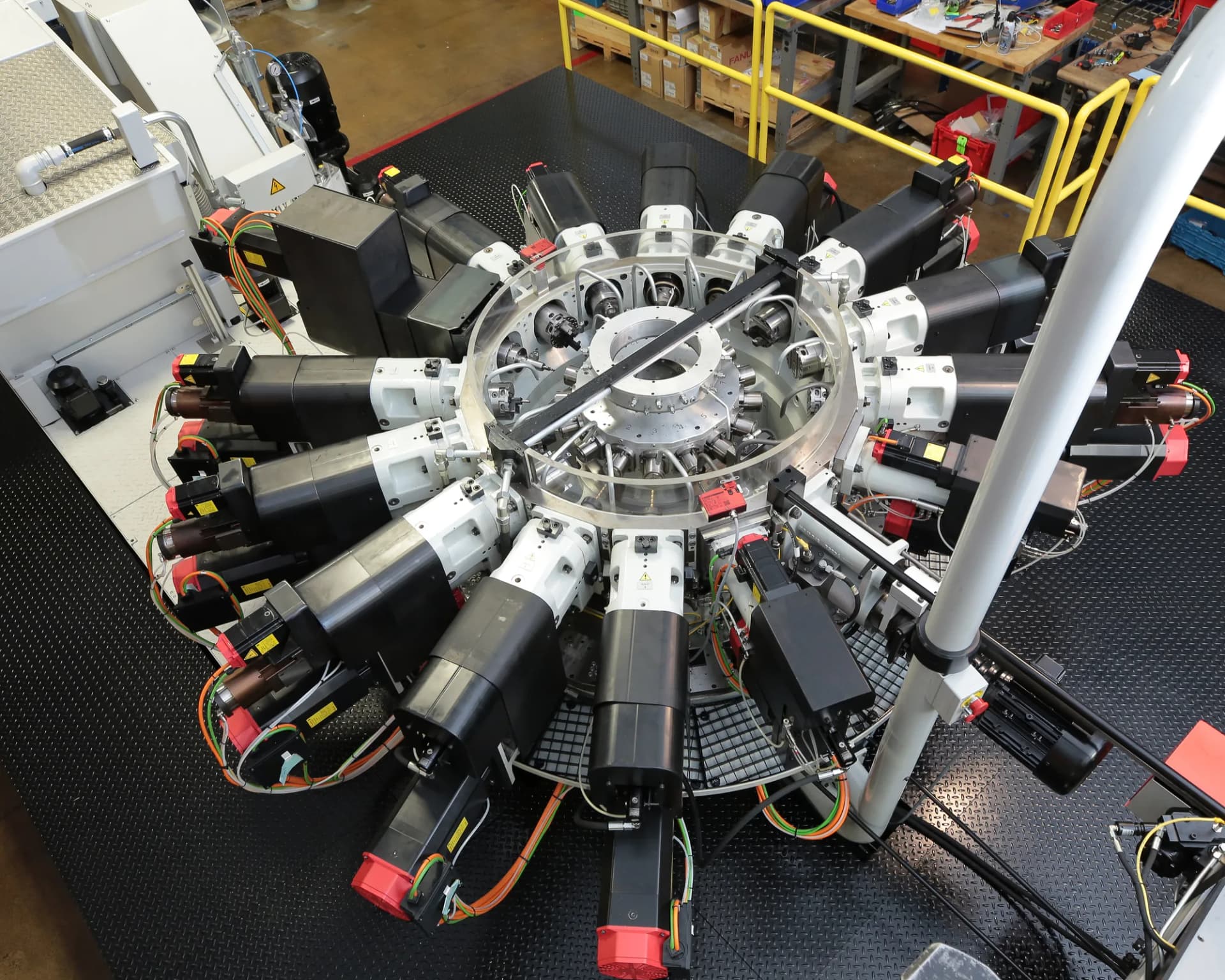

Servomat 45mm-16
CNC-converted rotary transfer machine with 16 horizontal and 8 vertical stations for the most complex CNC parts up to 1 3/4 inch round, under Fanuc 30iB control.
- Max. Round Capacity
- 1 3/4 in
- Horizontal Stations
- 16
- Vertical Stations
- 8
- Index Time
- 0.8 sec
Servomat

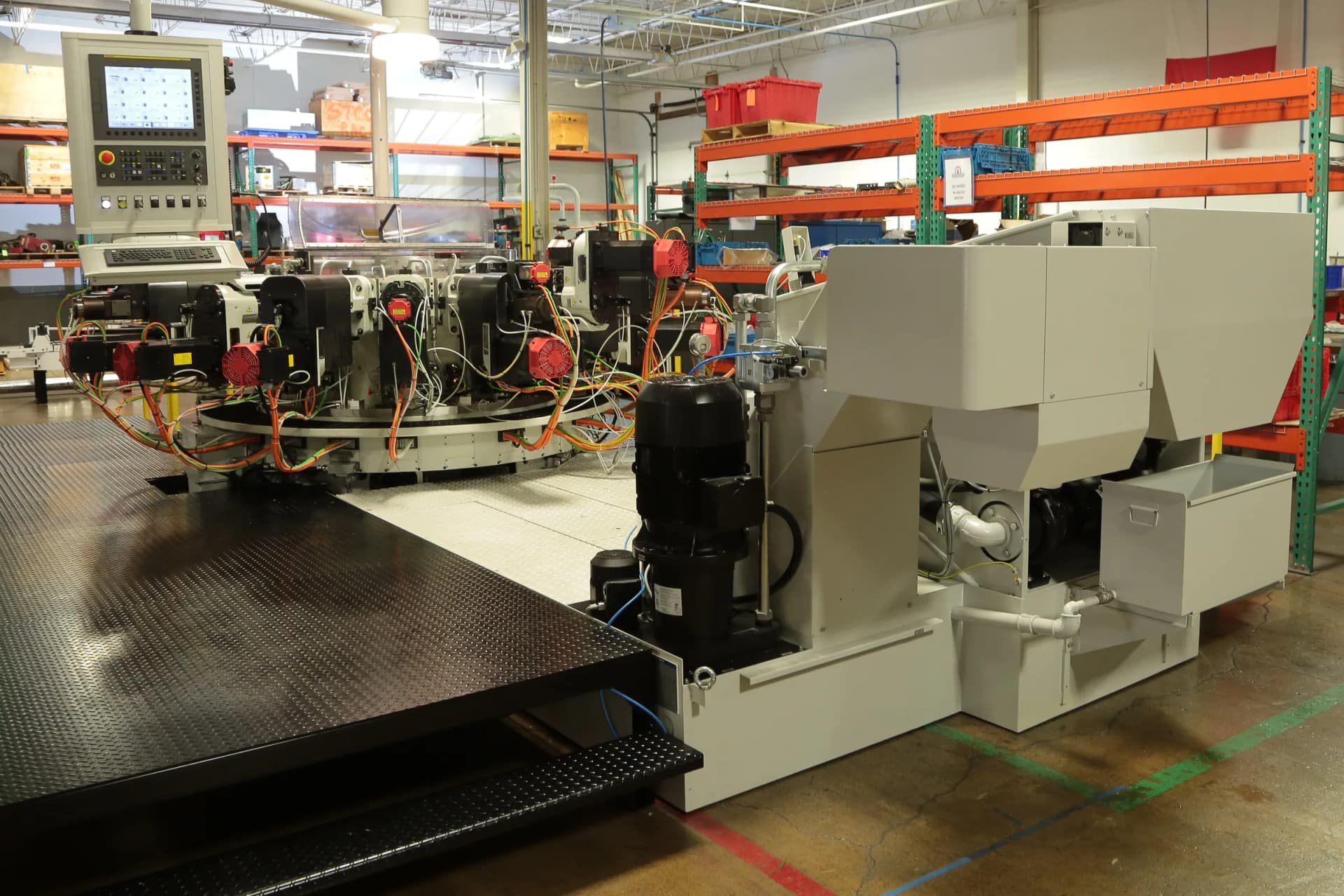

Servomat HS 12
CNC-converted large-blank rotary transfer machine — a rebuilt HS 12 base with DM2 Fanuc CNC ballscrew units for blanks up to a 4-inch cube and 8-inch part length.
- Max. Blank
- 4 in cube
- Max. Round Capacity
- 1 3/4 in
- Horizontal Stations
- 12
- Vertical Stations
- 6
Servomat

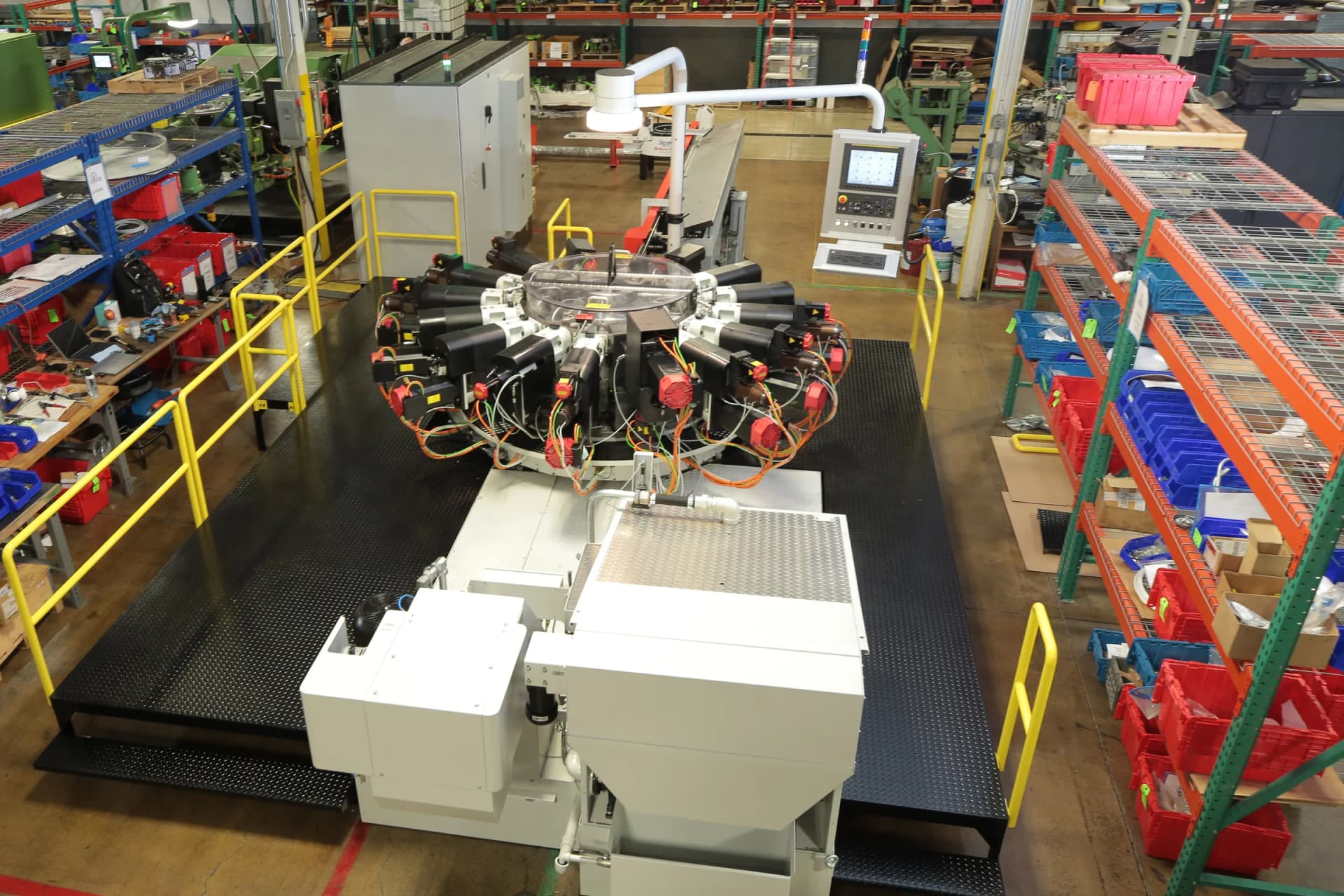

Servomat HS 16
CNC-converted large-blank rotary transfer machine with 16 horizontal and 8 vertical stations — a rebuilt HS 16 base with DM2 Fanuc CNC ballscrew units under Fanuc 30iB control.
- Max. Blank
- 3 in cube
- Max. Round Capacity
- 1 3/4 in
- Horizontal Stations
- 16
- Vertical Stations
- 8
DM2 Technomat

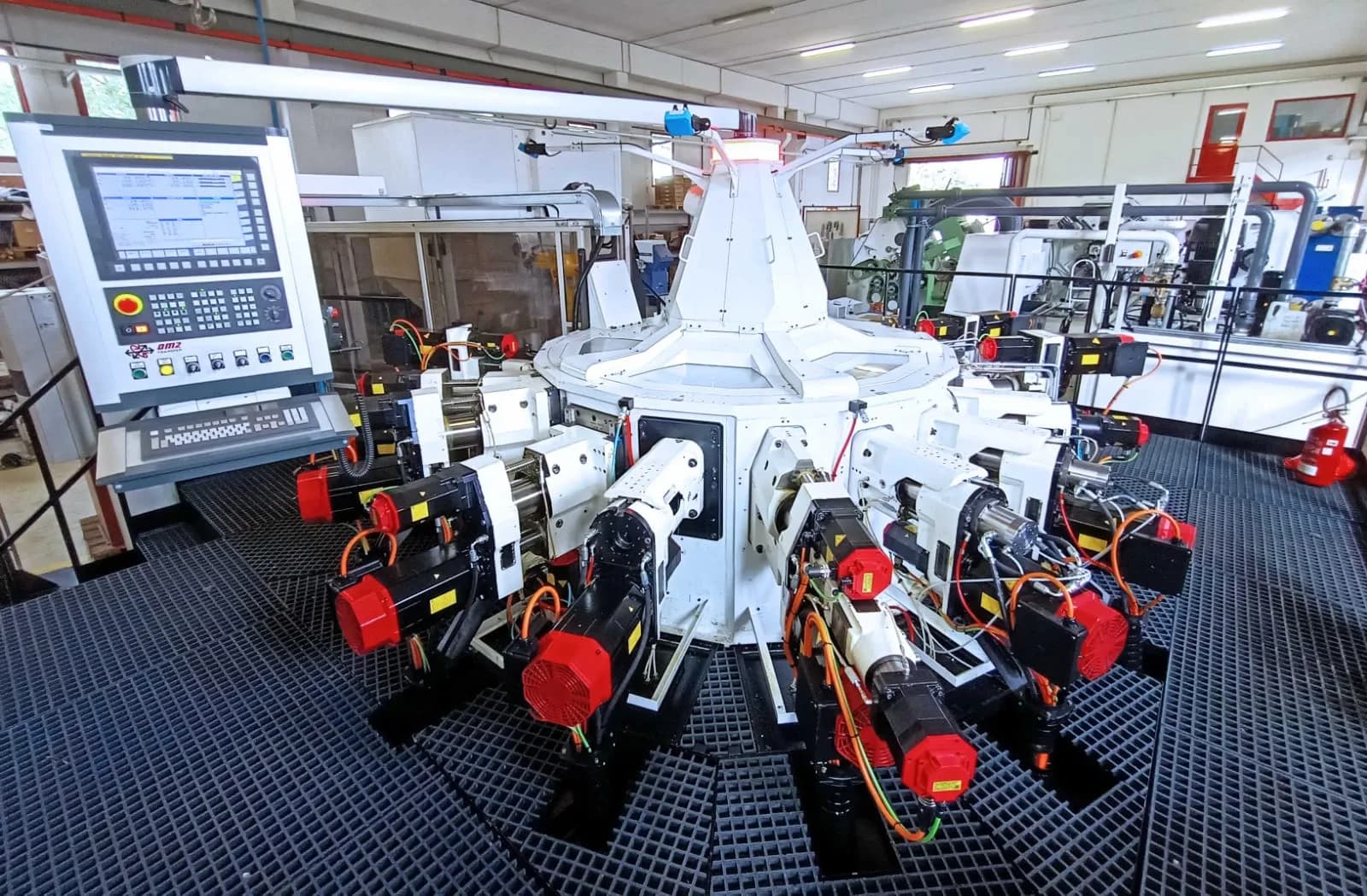

Technomat 100-16
New-build Italian DM2 rotary transfer machine for parts to 100 mm round, with 16 horizontal and 8 vertical Fanuc-controlled stations on a cast-iron, Hirth-indexed base.
- Max. Round Capacity
- 100 mm
- Horizontal Stations
- 16
- Vertical Stations
- 8
- Index Time
- 0.9 sec
DM2 Technomat

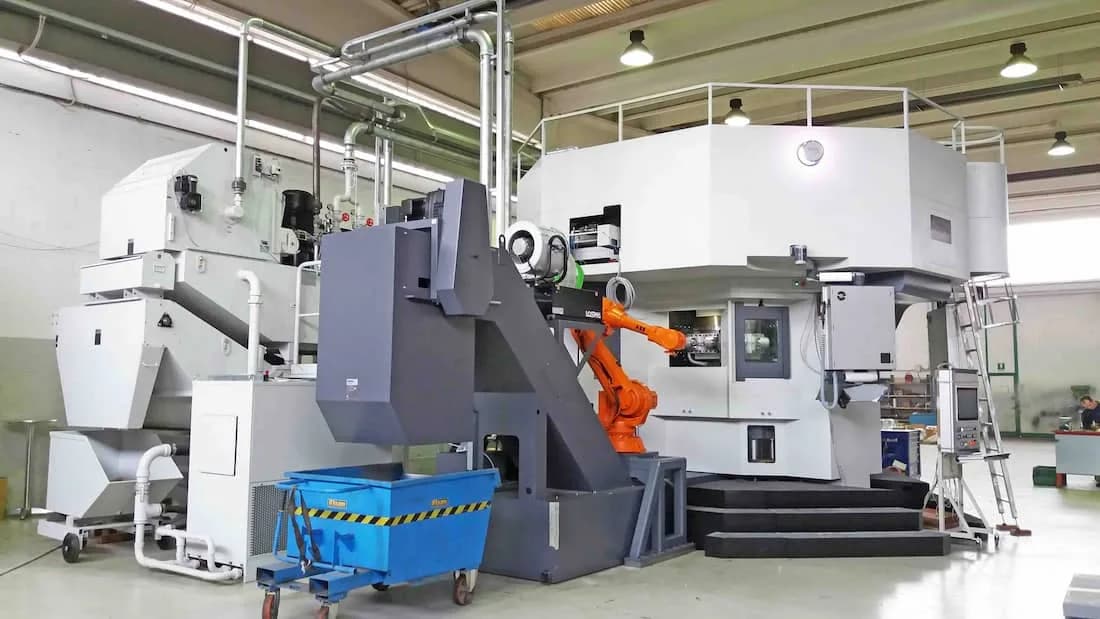

Techno Flex (AV)
New-build Italian DM2 flexible rotary transfer machine with a 300 mm working envelope and vertical stations from both top and bottom for dense, complex machining.
- Working Envelope
- 300 mm
- Max. Part Length
- 200 mm
- Horizontal Stations
- 12
- Vertical Stations
- 12 top + 12 bottom
DM2 Technomat

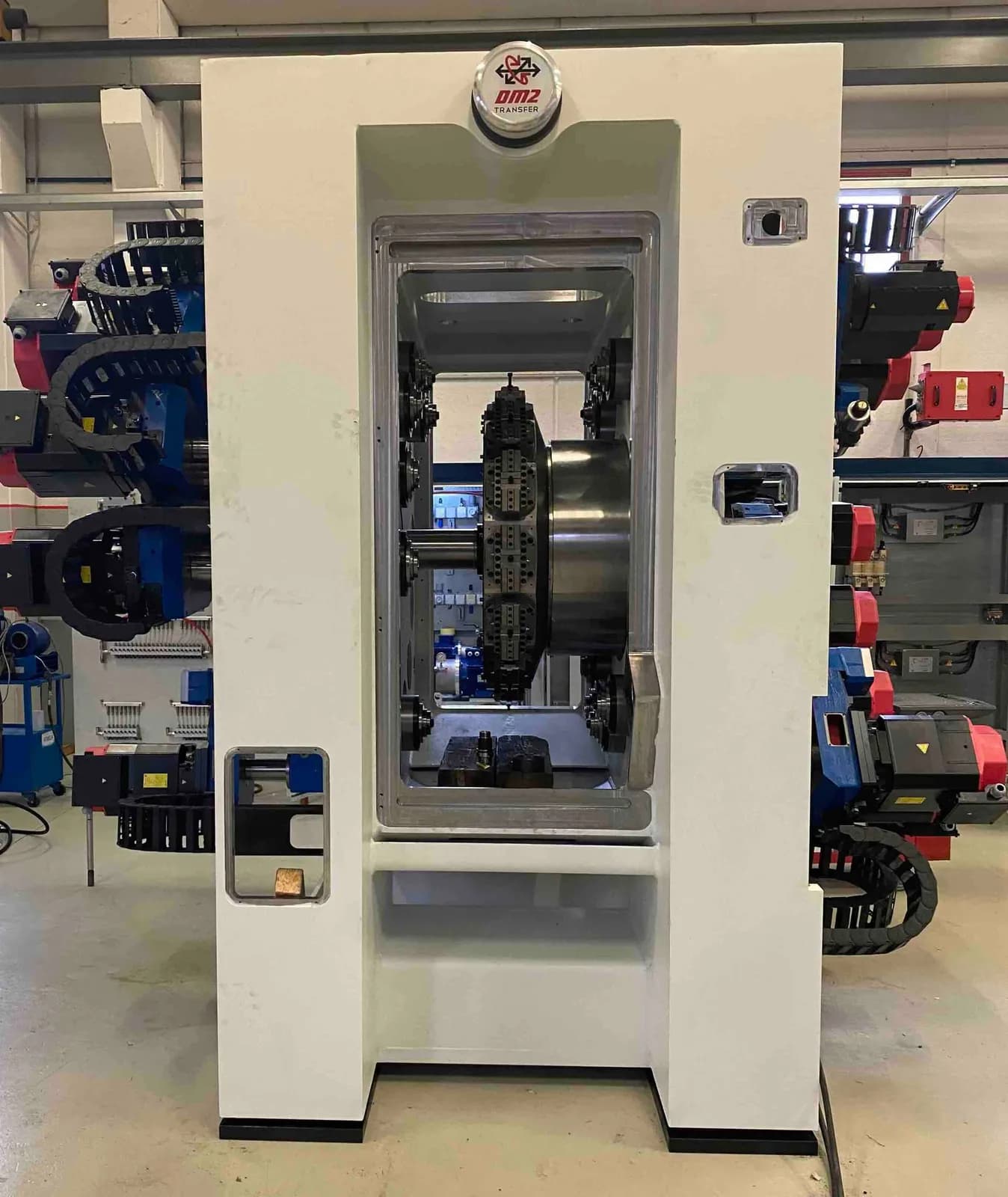

Technomat Trunnion
New-build Italian DM2 trunnion rotary transfer machine with up to 28 horizontal and 14 vertical stations and part lengths to 300 mm for the longest, most complex parts.
- Working Envelope
- 150 × 100 × 125 mm
- Max. Part Length
- 300 mm
- Horizontal Stations
- up to 28 (14/side)
- Vertical Stations
- up to 14
Revolution Machine Works Rotary Transfer Machines Questions
Answers to common questions about our revolution machine works rotary transfer machines products.
No. Revolution Machine Works is an expert, independent provider of Hydromat-type machine repair, rebuild, and service with no direct affiliation with Hydromat. Its team includes former Hydromat OEM employees, which is the source of its rebuild expertise, but RMW is an independent company. AMT Machine Tools is the Canadian dealer for RMW's rebuilt and CNC-converted rotary transfer machines.
A rotary transfer machine holds the workpiece in an indexing table that steps it through a ring of tooling stations, each performing a different operation. Because many stations cut simultaneously and a finished part is completed every index, rotary transfer produces mid-complexity turned-and-milled parts far faster than a single-spindle lathe or machining centre — it is the process of choice for high-volume automotive, hydraulic, and hardware components.
Both start from a remanufactured Hydromat-type base. A Rebuilt Hydromat retains the original cam-and-hydraulic drive, rebuilt to OEM specification — the most cost-effective way to restore a proven machine. A Servomat replaces that drive with DM2 Fanuc-controlled CNC ballscrew units, making the machine fully programmable: changeovers become program edits rather than cam changes, and the machine can run 1–5 axis CNC operations.
The DM2 Technomat is a new-build rotary transfer machine manufactured by DM2 Transfer of Brescia, Italy. It uses cast-iron, stress-relieved bases with Hirth-ring indexing for high accuracy and rigidity, Fanuc control, and quick-change tooling. RMW supplies and supports the Technomat line in North America, and AMT offers it in Canada.
Revolution Machine Works quotes savings of up to 70% versus a new machine, with rebuilt Hydromats backed by an 18-month parts-and-labour warranty. The exact figure depends on the model and configuration; AMT can prepare a quote for your part family and volumes.
Yes. AMT Machine Tools provides sales, application consultation, installation, and after-sale support for every RMW machine sold in Canada, backed by Revolution Machine Works' parts and service.
