Revolution Machine Works Rotary Transfer Machines
Servomat 25mm-12
by Revolution Machine Works

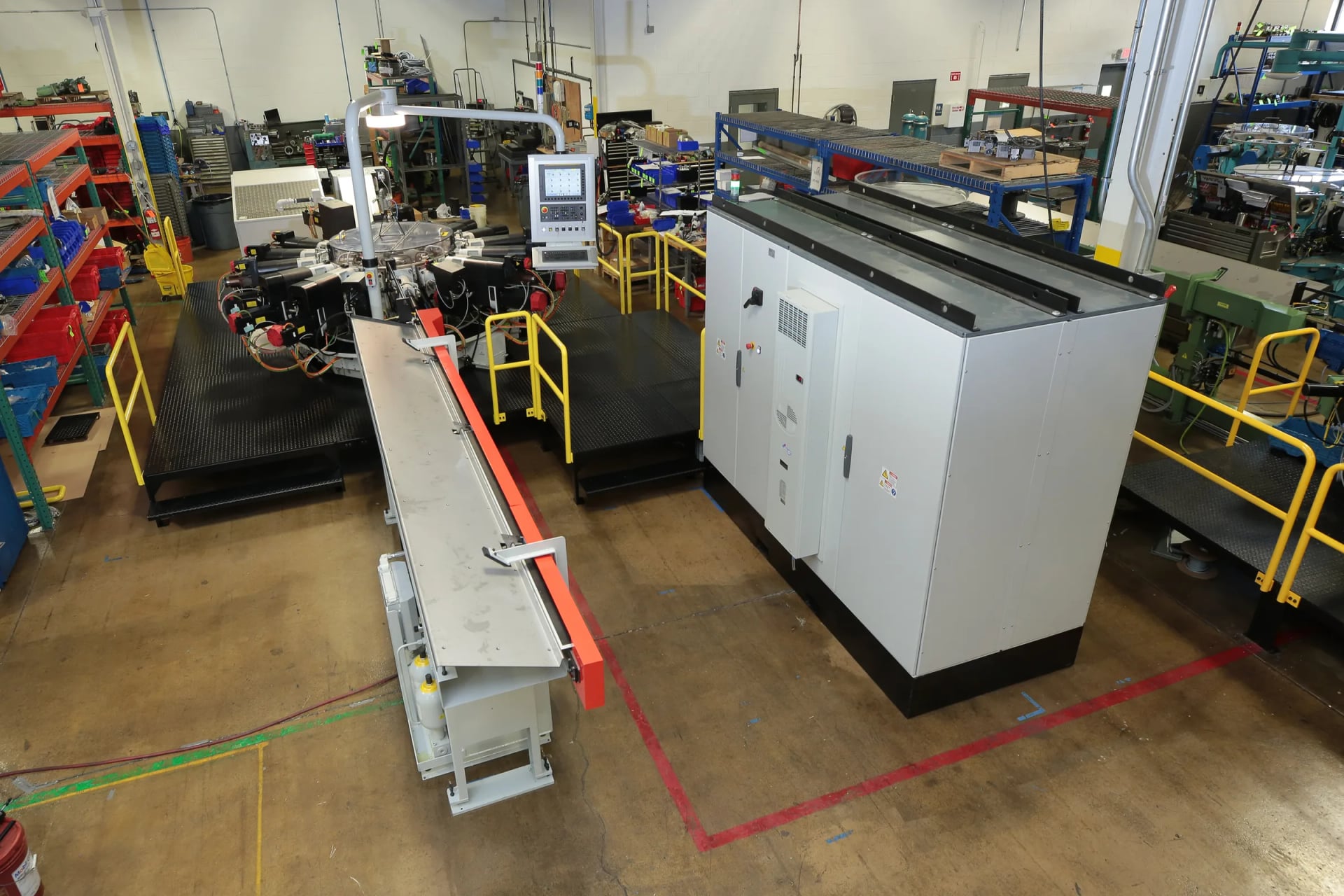

CNC-converted rotary transfer machine for parts up to 1 inch (25 mm) round — a rebuilt Hydromat base fitted with DM2 Fanuc CNC ballscrew units and Fanuc 30iB control.
1 in (25 mm)
Max. Round Capacity
12
Horizontal Stations
6
Vertical Stations
Ideal For
- Shops wanting CNC flexibility at a small-part, high-volume envelope
- Frequent changeovers that make cam machines uneconomical
- Upgrading capability beyond a straight HW 25/12 rebuild
- Canadian manufacturers wanting local AMT sales and service
Servomat 25mm-12 Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Rebuilt Hydromat base converted to full CNC with DM2 Fanuc ballscrew units
- New chip conveyor, bar feeder, and platform
- Programmable changeovers replace cam changes
- Around 35% cycle-time reduction versus traditional hydraulic CNC units; 30–50% below new-machine cost
Built-In Extras
- Fanuc 30iB control with 1–5 axis capability
Servomat 25mm-12 CNC Rotary Transfer Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Round
- 1 in (25 mm)
- Hex
- 7/8 in
- Square
- 3/4 in
- Max. Part Length
- 4 in
| Round | 1 in (25 mm) |
| Hex | 7/8 in |
| Square | 3/4 in |
| Max. Part Length | 4 in |
Servomat 25mm-12 Questions
Answers to common questions about the Servomat 25mm-12.
They share the same rebuilt Hydromat base and 1 inch, 12/6-station, 0.500-second format, but the Servomat replaces the cam-and-hydraulic drive with DM2 Fanuc CNC ballscrew units under Fanuc 30iB control. That makes it fully programmable — changeovers become a program edit instead of a cam change.
Fanuc 30iB CNC, driving DM2 ballscrew units with 1–5 axis capability. RMW was the first in the industry to offer stand-alone DM2 CNC ballscrew add-on units.
Ready to Discuss the Servomat 25mm-12?
Our team has 62+ years of experience helping Canadian manufacturers find the right CNC equipment for their production needs.
60+
Years in Business
3,500+
Installations
7
Brands Represented
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Or email us at [email protected]
Explore More Revolution Machine Works Rotary Transfer Machines
Compare specifications and find the right machine for your application.
Rebuilt Hydromat
HW 25/12
Turnkey remanufactured Hydromat-type rotary transfer machine for parts up to 1 inch (25 mm) round, with 12 horizontal and 6 vertical stations and a 0.500-second index.
