Revolution Machine Works Rotary Transfer Machines

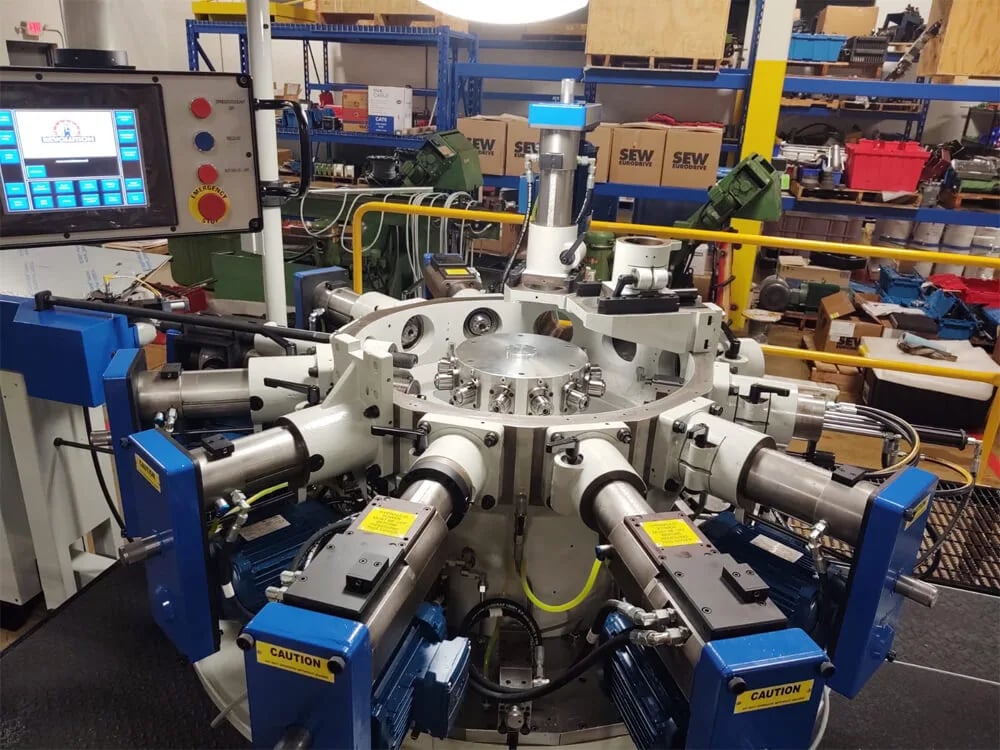

HB 45/12
by Revolution Machine Works
Turnkey remanufactured Hydromat-type rotary transfer machine for parts up to 1 3/4 inch round, with 12 horizontal and 6 vertical stations and a 0.700-second index.
1 3/4 in
Max. Round Capacity
12
Horizontal Stations
6
Vertical Stations
Ideal For
- Shops running mid-diameter parts in high volume
- Stepping up from a 1-inch machine to 1 3/4 inch capacity
- Replacing a worn cam machine with a warranted rebuild
- Canadian manufacturers wanting local AMT sales and service
HB 45/12 Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- 0.700-second index tuned to heavier mid-size cutting loads
- Rebuilt units, valves, drives, and controls, certified and warranted (18-month parts and labour)
Built-In Extras
- Turnkey remanufactured to OEM specification from a proven Hydromat casting and table
- 1 3/4 inch round capacity for mid-diameter parts
- 12 horizontal and 6 vertical stations for simultaneous multi-operation machining
HB 45/12 Rebuilt Hydromat Rotary Transfer Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Round
- 1 3/4 in
- Hex
- 1 1/2 in
- Square
- 1 1/4 in
- Max. Part Length
- 6 in
| Round | 1 3/4 in |
| Hex | 1 1/2 in |
| Square | 1 1/4 in |
| Max. Part Length | 6 in |
HB 45/12 Questions
Answers to common questions about the HB 45/12.
Both share the 12-horizontal / 6-vertical station layout, but the HB 45/12 handles larger work — up to 1 3/4 inch round versus 1 inch — on a heavier 15,000 lb base with a 43 HP drive and a 0.700-second index tuned to the larger cutting loads.
Mid-diameter, high-volume parts such as hydraulic fittings, valve bodies, and heavier fasteners up to 1 3/4 inch round, 1 1/2 inch hex, or 1 1/4 inch square, at part lengths to 6 inches.
