Revolution Machine Works Rotary Transfer Machines

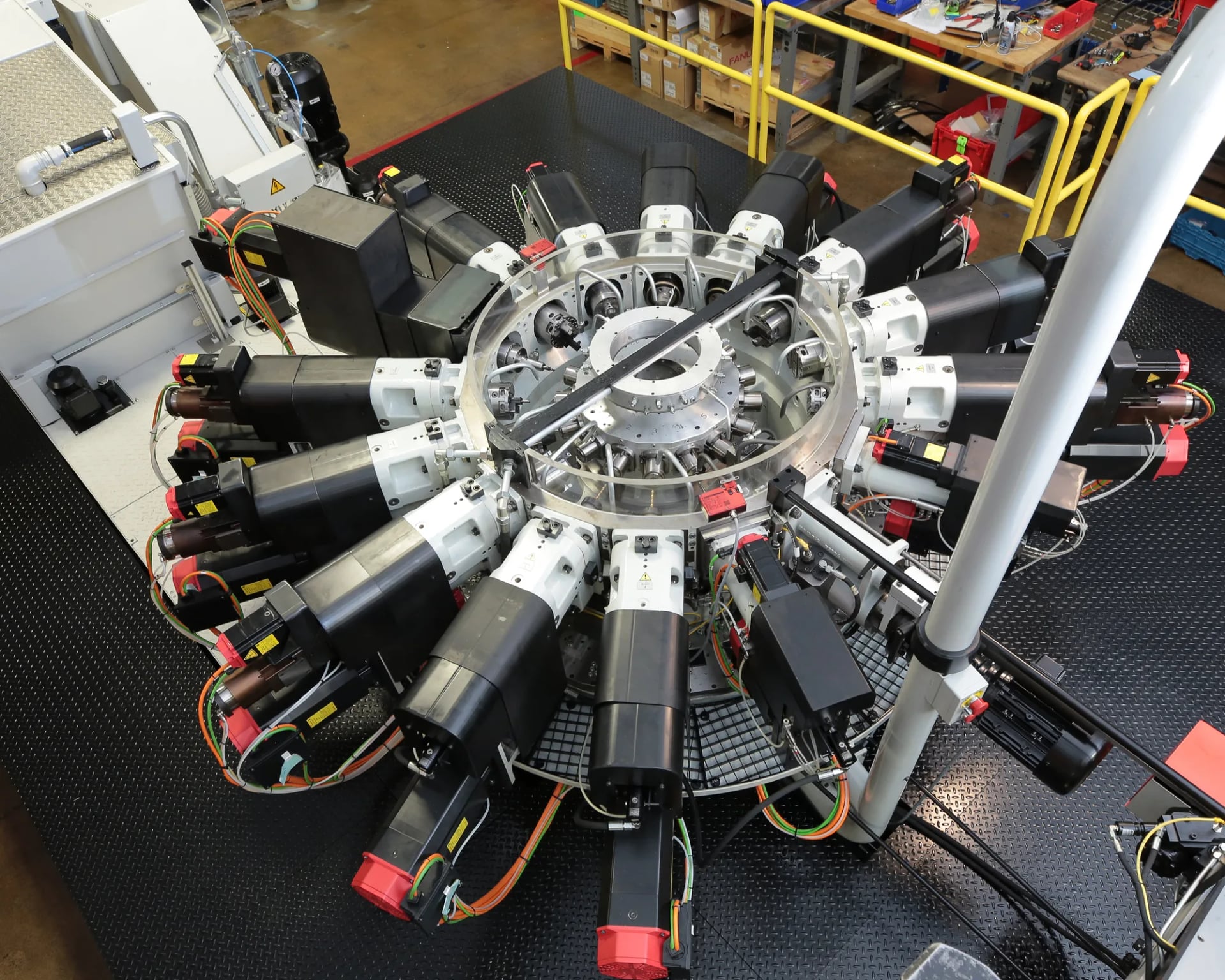

Servomat 45mm-16
by Revolution Machine Works
CNC-converted rotary transfer machine with 16 horizontal and 8 vertical stations for the most complex CNC parts up to 1 3/4 inch round, under Fanuc 30iB control.
1 3/4 in
Max. Round Capacity
16
Horizontal Stations
8
Vertical Stations
Ideal For
- Operation-dense parts needing 16/8 stations plus CNC flexibility
- High-mix families a shop wants on one programmable transfer machine
- Upgrading capability beyond a straight HB 32/45-16 rebuild
- Canadian manufacturers wanting local AMT sales and service
Servomat 45mm-16 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- 16 horizontal and 8 vertical stations — highest station count in the Servomat line
- Full CNC via DM2 Fanuc ballscrew units under Fanuc 30iB control, 1–5 axis
Ease of Operation
- Finishes complex parts complete in a single programmable cycle
- New chip conveyor, bar feeder, and platform on a remanufactured base
- Around 35% cycle-time reduction versus traditional hydraulic CNC units; 30–50% below new-machine cost
Servomat 45mm-16 CNC Rotary Transfer Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Round
- 1 3/4 in
- Hex
- 1 1/2 in
- Square
- 1 1/4 in
- Max. Part Length
- 6 in
| Round | 1 3/4 in |
| Hex | 1 1/2 in |
| Square | 1 1/4 in |
| Max. Part Length | 6 in |
Servomat 45mm-16 Questions
Answers to common questions about the Servomat 45mm-16.
It combines the highest station count — 16 horizontal and 8 vertical — with full CNC control via DM2 Fanuc ballscrew units, so the most complex, high-mix parts can be finished complete in one programmable cycle. Its rebuilt counterpart is the HB 32/45-16.
The Servomat 45mm-16 has 16 horizontal and 8 vertical stations — the highest station count in RMW's Servomat line — driven by DM2 Fanuc CNC ballscrew units under Fanuc 30iB control.
Ready to Discuss the Servomat 45mm-16?
Our team has 62+ years of experience helping Canadian manufacturers find the right CNC equipment for their production needs.
60+
Years in Business
3,500+
Installations
7
Brands Represented
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Or email us at [email protected]
