Revolution Machine Works Rotary Transfer Machines

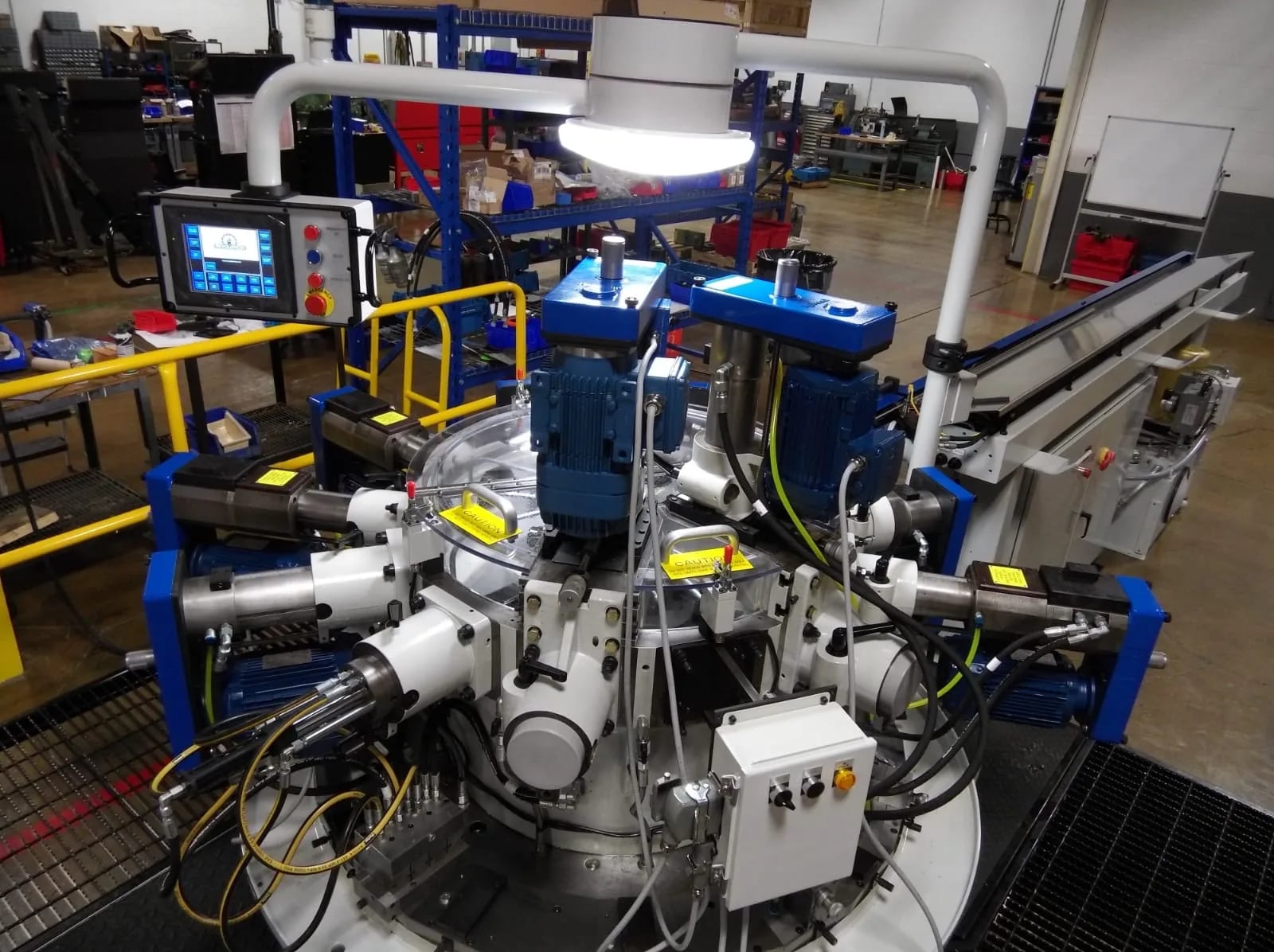

HS 16
by Revolution Machine Works
Turnkey remanufactured Hydromat-type rotary transfer machine for large blanks up to a 3-inch cube, with 16 horizontal and 8 vertical stations for complex large-envelope parts.
3 in cube
Max. Blank
1 3/4 in
Max. Round Capacity
16
Horizontal Stations
Ideal For
- Operation-dense large parts needing 16/8 stations at an 8-inch length
- Top-of-range rebuilt Hydromat capacity for big, feature-rich components
- Buyers weighing a cam rebuild against the CNC Servomat HS 16 conversion
- Canadian manufacturers wanting local AMT sales and service
HS 16 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Heaviest machine in the rebuilt line at 20,000 lb for rigidity on large parts
- Also available CNC-converted as the Servomat HS 16
Built-In Extras
- 16 horizontal and 8 vertical stations at a large-blank envelope
- Blanks to a 3-inch cube and 8-inch part length
- Turnkey remanufactured to OEM specification from a proven Hydromat casting and table
HS 16 Rebuilt Hydromat Rotary Transfer Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Blank
- 3 in cube
- Round
- 1 3/4 in
- Max. Part Length
- 8 in
| Blank | 3 in cube |
| Round | 1 3/4 in |
| Max. Part Length | 8 in |
HS 16 Questions
Answers to common questions about the HS 16.
Both are large-blank HS machines with 8-inch part length, but the HS 16 adds stations — 16 horizontal and 8 vertical versus 12 and 6 — for more-complex parts, on a heavier 20,000 lb base. Its blank capacity is a 3-inch cube versus the HS 12's 4-inch cube.
Yes. The same rebuilt HS 16 base is offered as a Servomat HS 16 with DM2 Fanuc CNC ballscrew units in place of the cam-and-hydraulic drive, for fully programmable operation.
Ready to Discuss the HS 16?
Our team has 62+ years of experience helping Canadian manufacturers find the right CNC equipment for their production needs.
60+
Years in Business
3,500+
Installations
7
Brands Represented
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Or email us at [email protected]
