Revolution Machine Works Rotary Transfer Machines
Servomat 45mm-12
by Revolution Machine Works

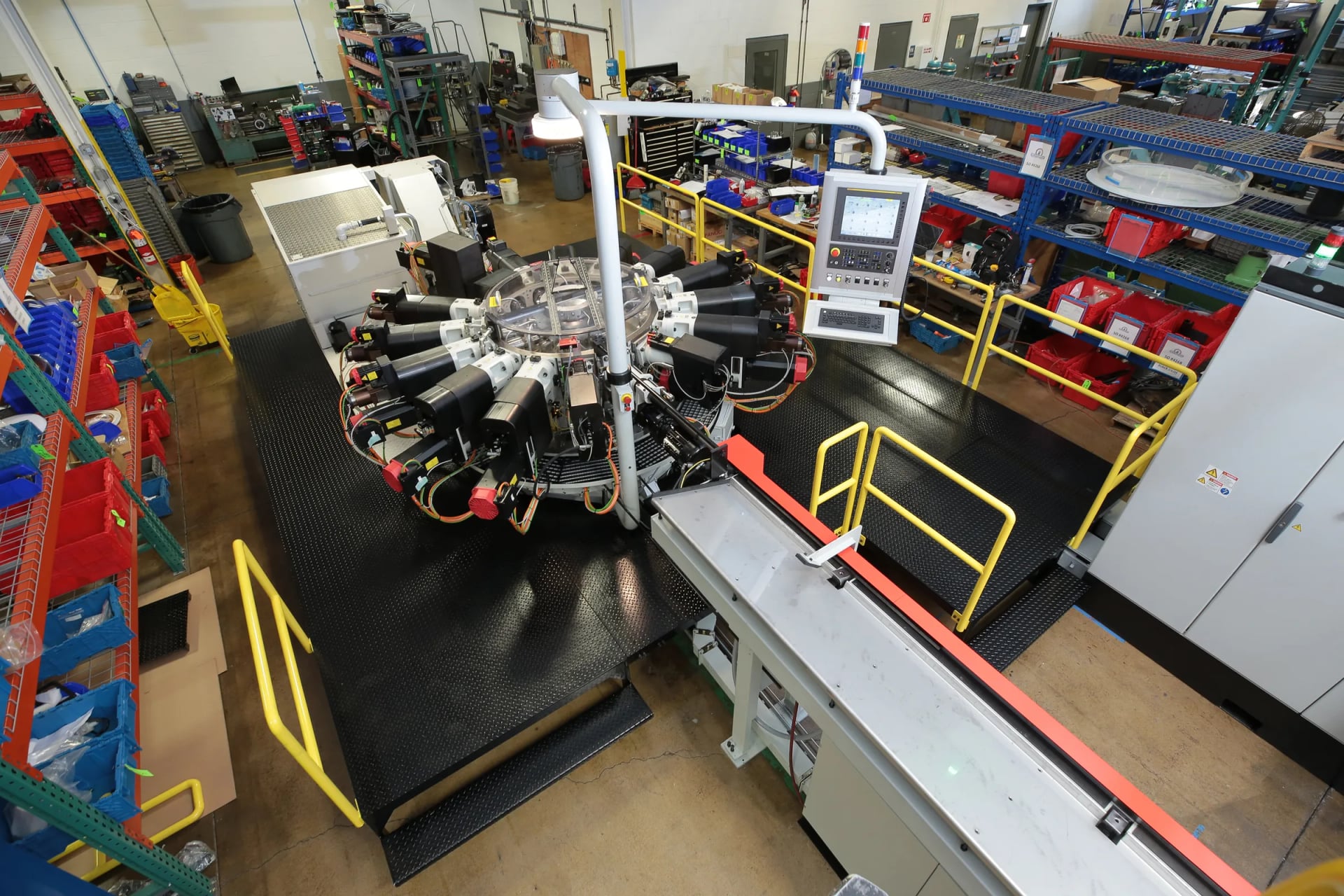

CNC-converted rotary transfer machine for parts up to 1 3/4 inch round — a rebuilt Hydromat base with DM2 Fanuc CNC ballscrew units, 12/6 stations, and Fanuc 30iB control.
1 3/4 in
Max. Round Capacity
12
Horizontal Stations
6
Vertical Stations
Ideal For
- Mid-diameter, high-volume parts needing CNC flexibility
- Shops running many part variants on one machine
- Upgrading capability beyond a straight HB 45/12 rebuild
- Canadian manufacturers wanting local AMT sales and service
Servomat 45mm-12 Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Rebuilt Hydromat base converted to full CNC with DM2 Fanuc ballscrew units
- New chip conveyor, bar feeder, and platform
- Around 35% cycle-time reduction versus traditional hydraulic CNC units; 30–50% below new-machine cost
Built-In Extras
- Fanuc 30iB control, 1–5 axis, with 40/90, 55/120, or 55/200 DM2 units
- 1 3/4 inch round capacity across 12 horizontal and 6 vertical stations
Servomat 45mm-12 CNC Rotary Transfer Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Round
- 1 3/4 in
- Hex
- 1 1/2 in
- Square
- 1 1/4 in
- Max. Part Length
- 6 in
| Round | 1 3/4 in |
| Hex | 1 1/2 in |
| Square | 1 1/4 in |
| Max. Part Length | 6 in |
Servomat 45mm-12 Questions
Answers to common questions about the Servomat 45mm-12.
The rebuilt HB 45/12. The Servomat 45mm-12 uses the same remanufactured base and 1 3/4 inch, 12/6-station format, but with DM2 Fanuc CNC ballscrew units under Fanuc 30iB control in place of the cam-and-hydraulic drive.
DM2 40/90, 55/120, or 55/200 CNC units, selected to match the cutting loads of the part family, with 1–5 axis capability under Fanuc 30iB control.
Ready to Discuss the Servomat 45mm-12?
Our team has 62+ years of experience helping Canadian manufacturers find the right CNC equipment for their production needs.
60+
Years in Business
3,500+
Installations
7
Brands Represented
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
