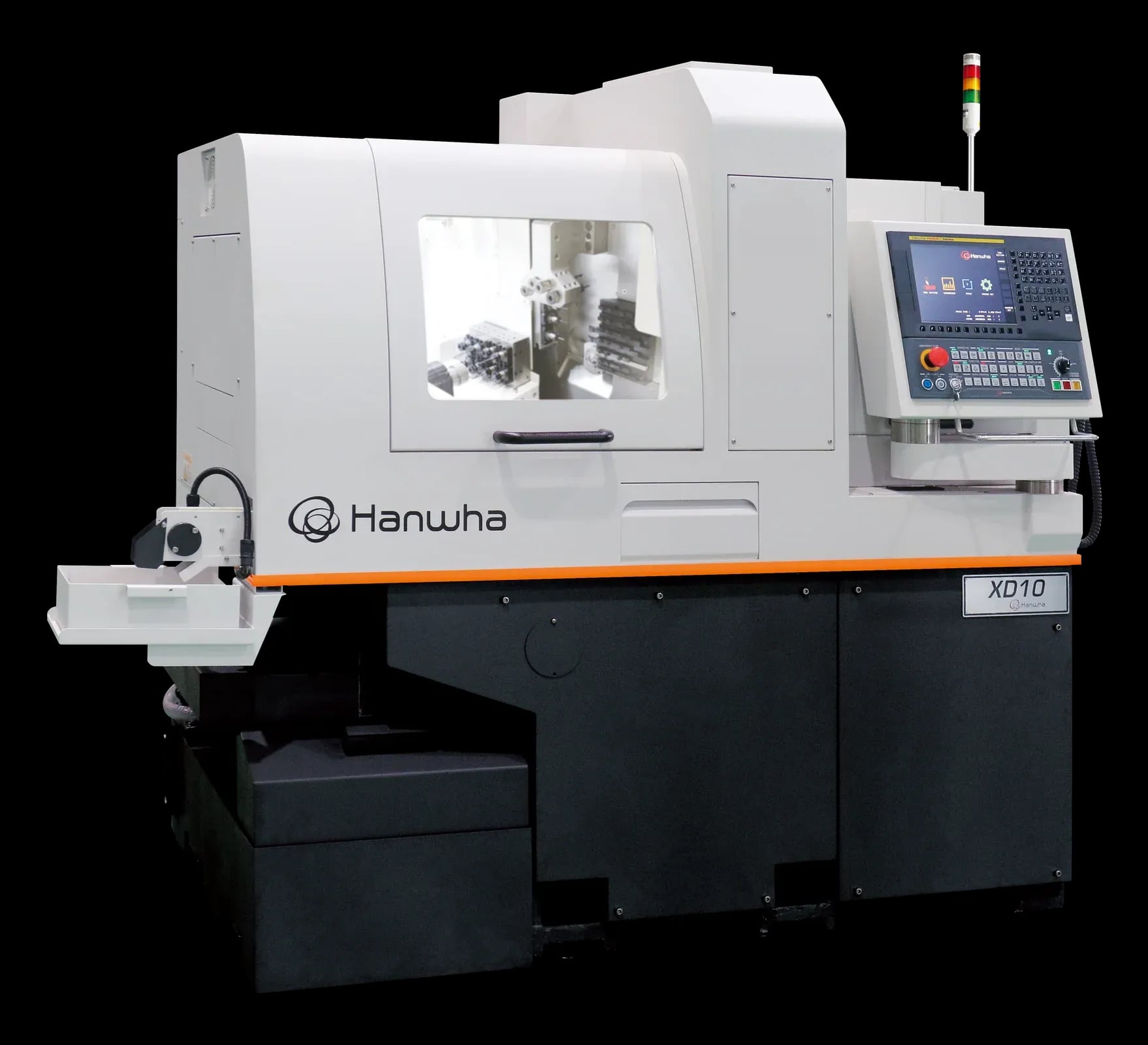

XD10

The Hanwha XD10 (also referenced as XD10II in the brochure) is a high-productivity, small-footprint Swiss-type lathe built to turn bar stock up to Ø10 mm with the speed and accuracy demanded by medical device, electronics, and watchmaking applications. The main spindle reaches 15,000 rpm with a 2.2/3.7 kW motor — the same speed class as the XD16III — and the sub-spindle matches at 10,000 rpm. This combination supports fast cycle times on the small-diameter turned parts where the XD10 excels. The tooling arrangement reflects the compact diameter class: six □8 mm turning tool positions on the OD gang, four ER11 front tool positions, and four ER11M cross drill positions (with an option to extend to five ER11M). Cross drilling speed reaches 10,000 rpm driven by a 0.55 kW motor, allowing fine milling and drilling operations on parts this size. The Y2-axis back tool post is a standard feature and holds eight ER11 tools (four fixed, four driven) at 9,000 rpm, with an option to reduce to four back tools (fixed two, driven two). Back tool motor power is 0.55 kW. An optional whirling tool unit (two ER11M positions plus one modular whirling position) is available for thread whirling and related operations, making the XD10 particularly relevant for bone screws, dental implant screws, and other threaded medical components. The guide bush uses an SD125R bush with a TF16 chuck on both main and sub-spindles. Z1 stroke is 155 mm. Machine footprint is 1,810 x 970 mm, and weight is 2,200 kg — one of the most compact configurations in the Hanwha XD line. The XD10 uses a Hanwha Fanuc-i controller. AMT Machine Tools is the Canadian dealer for Hanwha, supporting the XD10 across Canada.

Ideal For

• Medical device manufacturers producing bone screws and implant components under Ø10 mm
• High-productivity small parts runs in electronics and watchmaking
• Shops needing thread whirling capability on a Swiss centre
• Facilities with limited floor space requiring a compact yet fully featured Swiss lathe
• Canadian precision machining operations supported by AMT Machine Tools' local Hanwha dealer network
