Hanwha CNC Machine Tool

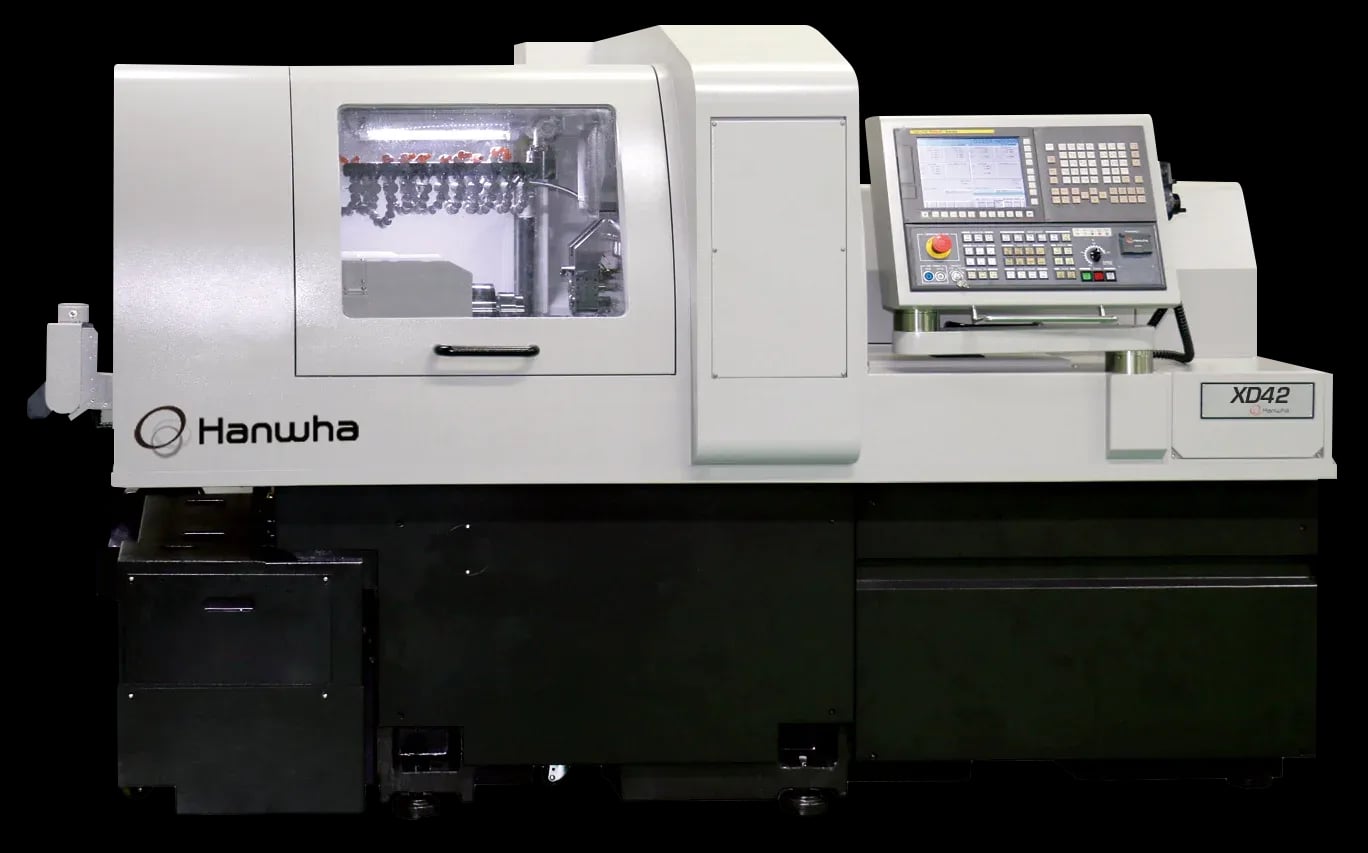

XD42
by Hanwha
Heavy-duty 5/6-axis Swiss-type CNC lathe designed for Ø42mm bar stock, combining hydraulic chucking, a high-torque built-in spindle motor, and flexible back-tool and cross-drilling options for complex large-diameter parts.
Ø42 mm
Max. Machining Diameter
207 mm (H) / 100 mm (N)
Z1 Stroke (Guide Bush / Non-G/B)
6,000 rpm
Main Spindle Speed
Ideal For
- Job shops machining Ø38--42 mm bar stock that outgrows standard 38 mm Swiss lathes
- Shops producing high-complexity parts with cross-drilling, milling, and back-side operations in one setup
- Production runs in stainless steel, titanium, or high-alloy materials requiring strong chucking force
- Operations wanting guide-bush / non-guide-bush flexibility on a single machine
- Canadian manufacturers seeking a supported, full-capacity Swiss lathe from AMT
XD42 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Built-in spindle motor (5.5 / 7.5 kW) delivers consistent power across a wide speed range up to 6,000 rpm
- Gear-driven modular cross-drill unit (2.2 kW, 6,000 rpm) with selectable 4-tool or 5-tool back layouts for flexible secondary machining
- Fanuc 0i-TF Plus controller with Cs spindle control on both main and sub spindles enables complex compound operations
- Linear roller guides on the feed axes support high rigidity and consistent positional accuracy under heavy cuts
Machining Capability
- Handles bar stock up to Ø42 mm -- one of the largest capacities in the Hanwha Swiss lathe line-up
- Hydraulic chucking cylinder with three-toggle clamping system provides high grip force for stainless steel and alloy materials
Built-In Extras
- Convertible guide bush / non-guide bush (NH) configuration allows shops to switch modes without major retooling
Hanwha XD42 Swiss-Type CNC Lathe Technical Details
Complete specifications, standard features, and optional upgrades.
- Max. Machining Diameter
- Ø42 mm
- Z1 Stroke -- Guide Bush (H)
- 207 mm
- Z1 Stroke -- Non-Guide Bush (N)
- 100 mm
- Configuration
- NH (Convertible G/B)
- Air Flow Rate
- 120 -- 150 L/min
| Max. Machining Diameter | Ø42 mm |
| Z1 Stroke -- Guide Bush (H) | 207 mm |
| Z1 Stroke -- Non-Guide Bush (N) | 100 mm |
| Configuration | NH (Convertible G/B) |
| Air Flow Rate | 120 -- 150 L/min |
XD42 Questions
Answers to common questions about the XD42.
The XD42 accommodates bar stock up to Ø42 mm, making it one of the largest-capacity sliding-headstock Swiss lathes in the Hanwha range. It uses a built-in motor with a hydraulic chucking cylinder and three-toggle system to maintain a firm grip on larger-diameter materials including stainless steel and alloy bar.
The XD42 runs on the Fanuc 0i-TF Plus controller, which supports Cs spindle control on both the main and sub spindles for compound turning and milling operations.
Yes. The XD42 ships in an NH (convertible) configuration that lets operators switch between guide-bush and non-guide-bush mode. Non-guide-bush mode reduces material waste on shorter workpieces and is well suited to parts where the length-to-diameter ratio does not require full guide-bush support.
Ready to Discuss the XD42?
Our team has 62+ years of experience helping Canadian manufacturers find the right CNC equipment for their production needs.
60+
Years in Business
3,500+
Installations
7
Brands Represented
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Or email us at [email protected]
Explore More Hanwha CNC Machine Tool
Compare specifications and find the right machine for your application.
Turret-Type Swiss Lathe

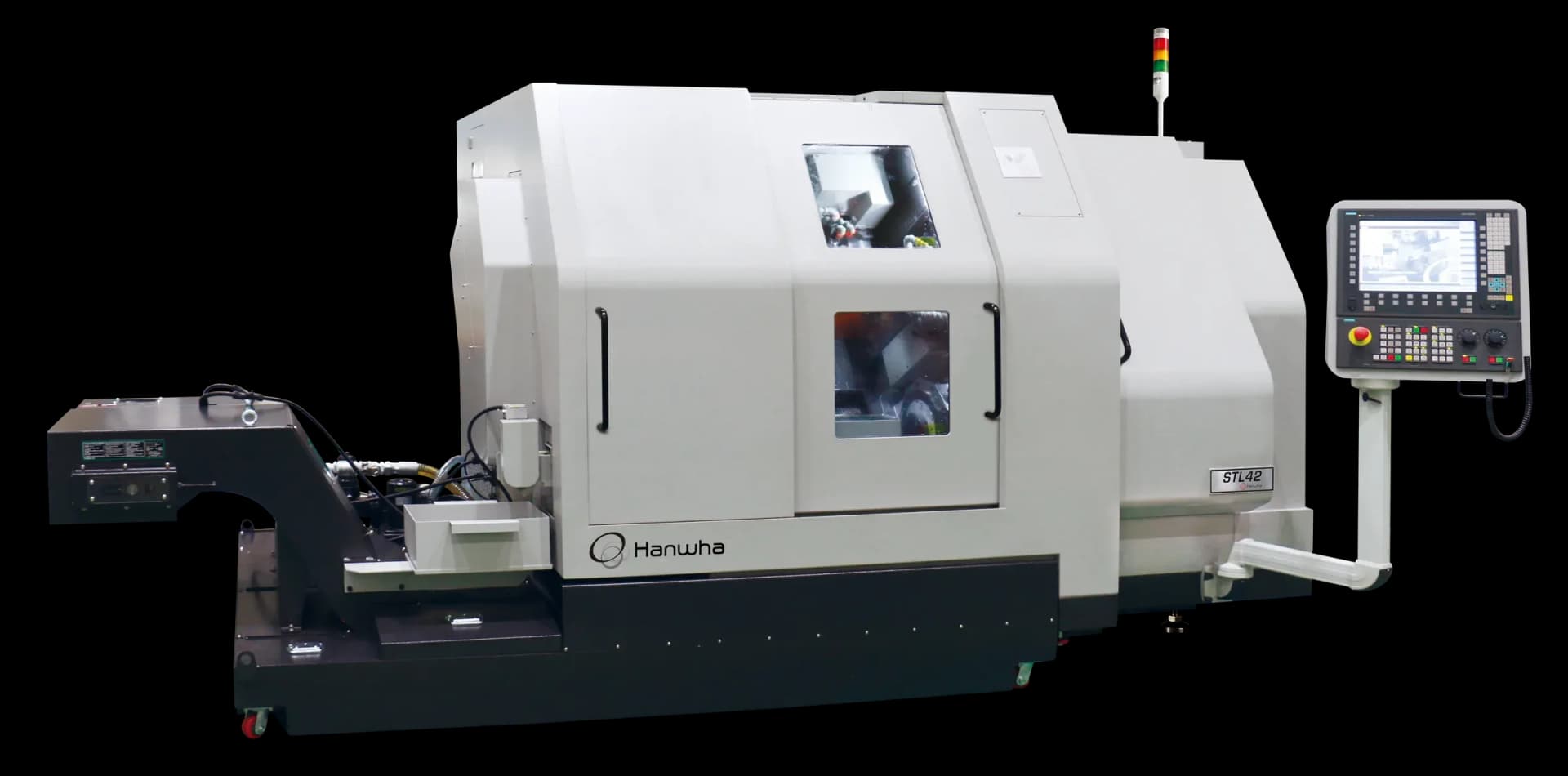

STL42
Nine-axis turret-type Swiss lathe with Siemens 840D control, 42 mm bar capacity, and up to 49 combined gang/turret tool positions for demanding high-mix production.
Turret-Type Swiss Lathe

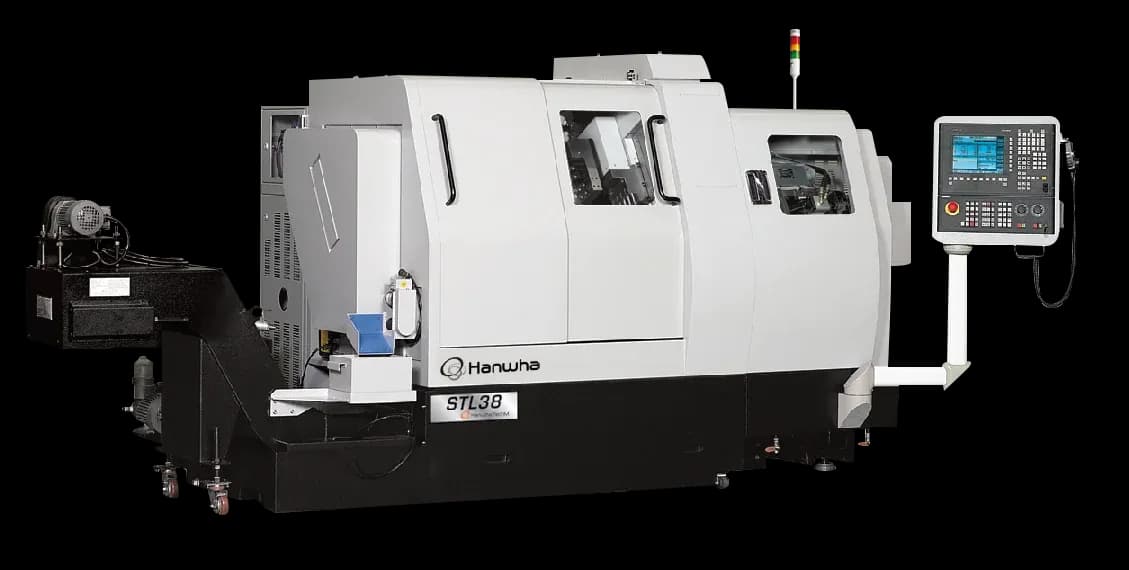

STL38
