DATRON CNC Milling Machines
neo Entry
Entry-level DATRON neo: compact 3+1-axis high-speed mill with a 1.0 kW / 27,000 rpm spindle and DATRON next Entry control.

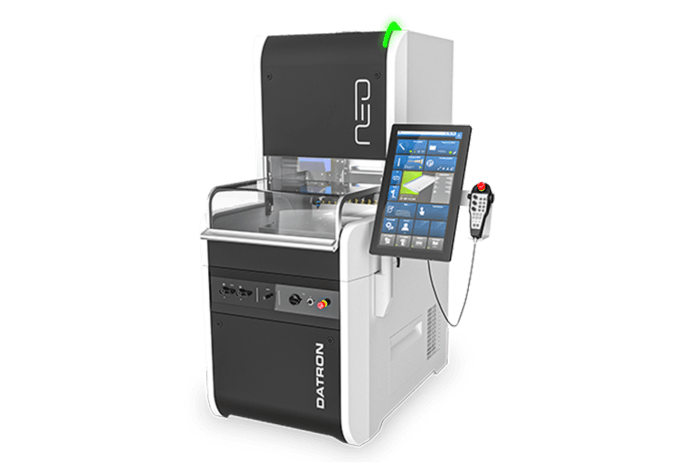

DATRON neo Entry CNC Milling Machine
Axes
3+1
Traverse path (X x Y x Z)
520 mm x 420 mm x 220 mm
Working area (X x Y x Z)
500 mm x 400 mm x 175 mm (Z = portal passage)
Machining spindle
1.0 kW HF spindle; direct shank
The Complete DATRON CNC Milling Machines Lineup
Each system is engineered for specific applications. Compare specs to find the right fit.
Compact High-Speed CNC Milling Machine
neo
Compact 3+1-axis high-speed mill with a 2.0 kW / 40,000 rpm spindle, 24-station tool fixture, 3D probe and DATRON next control.
- Axes
- 3+1
- Traverse path (X x Y x Z)
- 520 mm x 420 mm x 220 mm
- Working area (X x Y x Z)
- 500 mm x 400 mm x 175 mm (Z = portal passage)
- Machining spindle
- 2.0 kW HF spindle; direct shank
Compact High-Speed CNC Milling Machine
neo Pro
Top DATRON neo model: 2.0 kW / 40,000 rpm spindle, 24-station tool fixture, 3D probe and linear absolute encoders on all axes.
- Axes
- 3+1
- Traverse path (X x Y x Z)
- 520 mm x 420 mm x 220 mm
- Working area (X x Y x Z)
- 500 mm x 400 mm x 175 mm (Z = portal passage)
- Machining spindle
- 2.0 kW HF spindle; direct shank
High-Speed Gantry Milling Machine

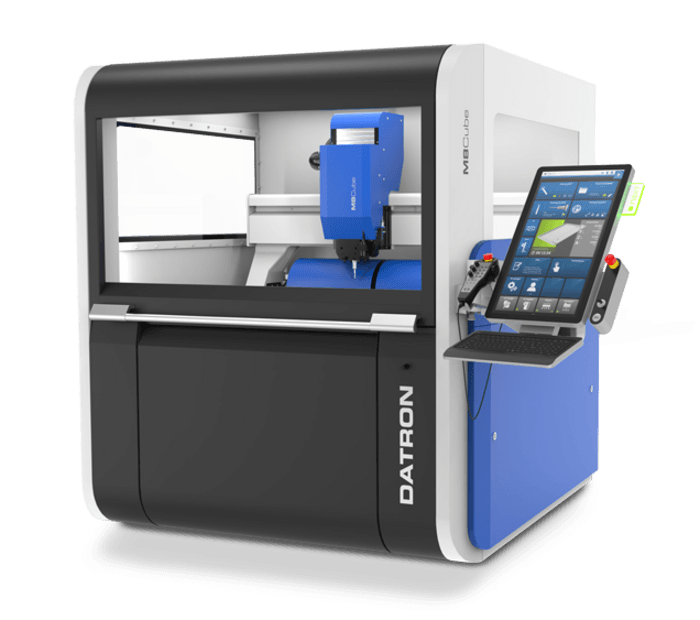

M8Cube
Cost-efficient high-speed gantry mill with a 1,000 x 700 mm working area, up to 60,000 rpm and optional 4th/5th-axis rotary units.
- Axes
- 3+2
- Traverse path (X x Y x Z)
- 1,020 mm x 830 mm x 245 mm
- Working area (X x Y x Z)
- 1,000 mm x 700 mm x 200 mm (Z = portal passage)
- Machining spindle
- 1.8 kW–4.0 kW HF spindle, up to 60,000 rpm; direct shank or HSK-E 25
Large-Format High-Speed Gantry Milling Machine

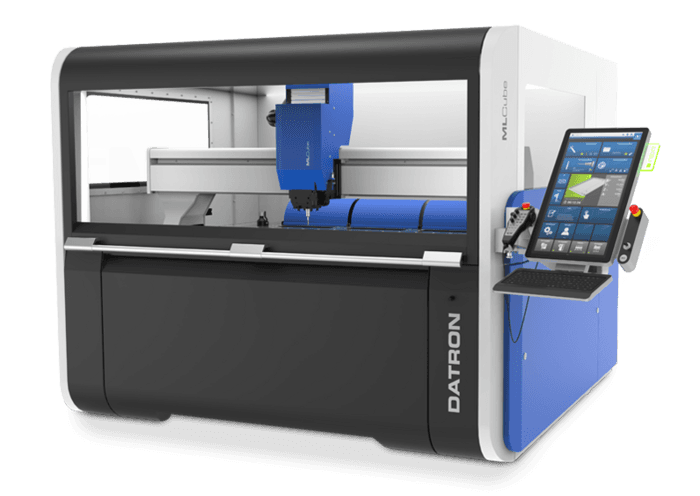

MLCube
Large-format high-speed gantry mill with a 1,500 x 1,000 mm working area and up to 60,000 rpm for sheet material and aluminum parts.
- Axes
- 3+1
- Traverse path (X x Y x Z)
- 1,520 mm x 1,150 mm x 245 mm
- Working area (X x Y x Z)
- 1,500 mm x 1,000 mm x 200 mm (Z = portal passage)
- Machining spindle
- 1.8 kW–4.0 kW HF spindle up to 60,000 rpm; direct shank or HSK-E 25
Large-Format High-Speed Gantry Milling Machine

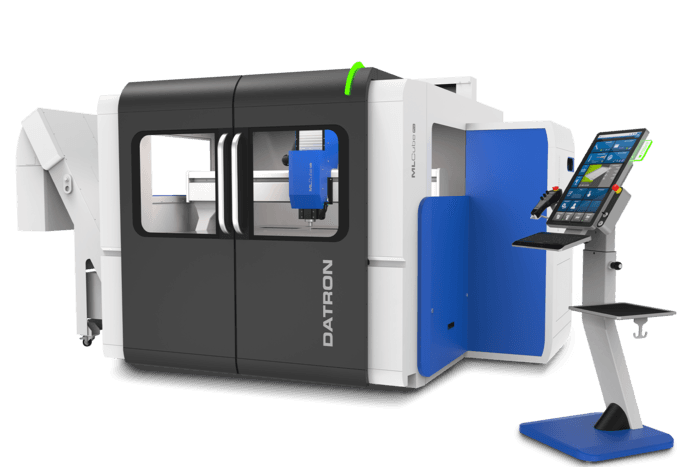

MLCube Pro
Premium large-format MLCube with automatic sliding doors, chip conveyor, 3.0–4.0 kW HSK-E 25 spindle and DATRON ToolAssist.
- Axes
- 3+1
- Traverse path (X x Y x Z)
- 1,520 mm x 1,150 mm x 245 mm
- Working area (X x Y x Z)
- 1,500 mm x 1,000 mm x 200 mm (Z = portal passage)
- Machining spindle
- 3.0 kW–4.0 kW HF spindle up to 40,000 rpm; HSK-E 25
Premium High-Speed Gantry Milling Machine

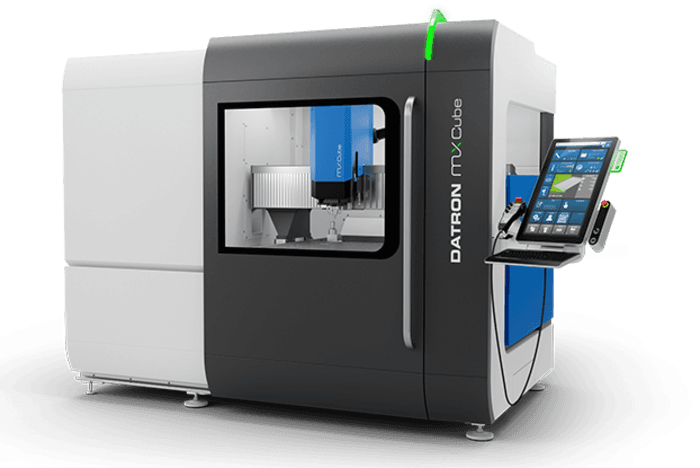

MXCube 4 kW
Premium 3+2-axis high-speed gantry mill with 40 m/min feeds, all-axis linear absolute encoders and a 4.0 kW / 40,000 rpm spindle.
- Axes
- 3+2
- Traverse path (X x Y x Z)
- 1,040 mm x 850 mm x 270 mm
- Working area (X x Y x Z)
- 1,000 mm x 700 mm x 205 mm (Z = portal passage)
- Machining spindle
- 4.0 kW HF spindle up to 40,000 rpm; HSK E-25
Premium High-Speed Gantry Milling Machine
MXCube 8 kW
High-power MXCube: 3+2-axis gantry, 40 m/min feeds, all-axis linear absolute encoders and an 8.0 kW / 34,000 rpm HSK E-32 spindle.
- Axes
- 3+2
- Traverse path (X x Y x Z)
- 1,040 mm x 850 mm x 270 mm
- Working area (X x Y x Z)
- 1,000 mm x 700 mm x 205 mm (Z = portal passage)
- Machining spindle
- 8.0 kW HF spindle up to 34,000 rpm; HSK E-32
DATRON CNC Milling Machines Questions
Answers to common questions about our datron cnc milling machines products.
DATRON high-speed milling machines are built for aluminum and other non-ferrous metals, as well as composites. Typical work includes housings, profiles, front panels, sheet material, prototypes and small precise parts.
AMT offers the compact DATRON neo Entry, neo and neo Pro (500 x 400 mm working area), the M8Cube (1,000 x 700 mm), the large-format MLCube and MLCube Pro (1,500 x 1,000 mm), and the premium MXCube with a 4 kW or 8 kW spindle (1,000 x 700 mm, feeds up to 40 m/min).
DATRON machines are quoted per configuration and application. Contact AMT Machine Tools with your parts and production requirements, call 416-675-7760, or request a quote online and we will configure and quote the right machine.
