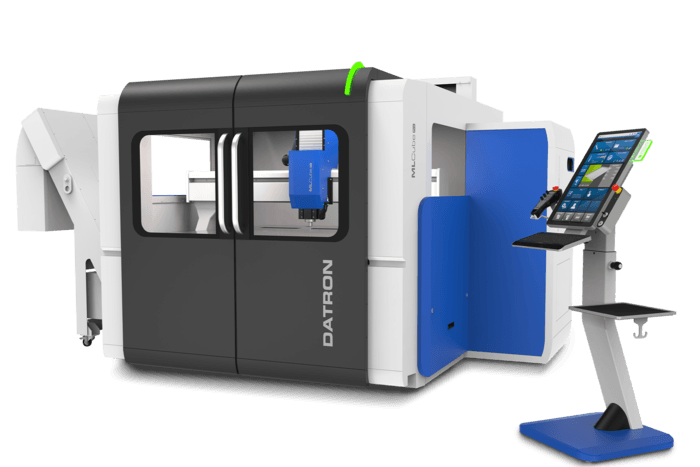

MLCube Pro
by DATRON
Premium large-format MLCube with automatic sliding doors, chip conveyor, 3.0–4.0 kW HSK-E 25 spindle and DATRON ToolAssist.
3+1
Axes
1,520 mm x 1,150 mm x 245 mm
Traverse path (X x Y x Z)
1,500 mm x 1,000 mm x 200 mm (Z = portal passage)
Working area (X x Y x Z)
Ideal For
- Industrial production with high material-removal needs
- Large-format parts loaded by crane
MLCube Pro Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- 3.0 kW–4.0 kW HSK-E 25 spindle with speeds up to 40,000 rpm
- Linear encoders on X and Y as standard
Ease of Operation
- Automatic sliding doors with crane loading
- Additional chip conveyor
- External DATRON ToolAssist tool changer: tools can be loaded and unloaded while the machine runs
- DATRON next control on a 24″ multi-touch screen
Built-In Extras
- 1,500 x 1,000 x 200 mm working area
DATRON MLCube Pro CNC Milling Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Axes
- 3+1
- Traverse path (X x Y x Z)
- 1,520 mm x 1,150 mm x 245 mm
- Working area (X x Y x Z)
- 1,500 mm x 1,000 mm x 200 mm (Z = portal passage)
- Machining spindle
- 3.0 kW–4.0 kW HF spindle up to 40,000 rpm; HSK-E 25
- Tool magazine
- DATRON ToolAssist 60 or 143 stations with HSK-E 25 with integrated length sensor (optional)
- Machining table
- Mineral-cast machine bed; integrated conical thread; full or cut-out table
- Control system / software
- DATRON next
- Operating terminal
- 24″ multi-touch screen with user-friendly hand-held control unit
- Component measurement
- DATRON 3D probe (optional)
- Rotary axis
- DATRON Axis4 (optional)
- Minimum-quantity cooling lubrication
- 10 liters or 2x 10 liters coolant tank; 4-nozzles spray ring
- Linear encoders X/Y
- ✓
- Positioning feed
- Up to 22 m/min
- Feed
- Up to 22 m/min
- Installation dimensions without operating terminal (W x D x H)
- 4,500 mm x 2,430 mm x 2,140 mm
- Stand-alone operating terminal (W x D x H)
- 800 mm x 710 mm x 1,500–1,700 mm
- Weight
- Approx. 3,200 kg
| Axes | 3+1 |
| Traverse path (X x Y x Z) | 1,520 mm x 1,150 mm x 245 mm |
| Working area (X x Y x Z) | 1,500 mm x 1,000 mm x 200 mm (Z = portal passage) |
| Machining spindle | 3.0 kW–4.0 kW HF spindle up to 40,000 rpm; HSK-E 25 |
| Tool magazine | DATRON ToolAssist 60 or 143 stations with HSK-E 25 with integrated length sensor (optional) |
| Machining table | Mineral-cast machine bed; integrated conical thread; full or cut-out table |
| Control system / software | DATRON next |
| Operating terminal | 24″ multi-touch screen with user-friendly hand-held control unit |
| Component measurement | DATRON 3D probe (optional) |
| Rotary axis | DATRON Axis4 (optional) |
| Minimum-quantity cooling lubrication | 10 liters or 2x 10 liters coolant tank; 4-nozzles spray ring |
| Linear encoders X/Y | ✓ |
| Positioning feed | Up to 22 m/min |
| Feed | Up to 22 m/min |
| Installation dimensions without operating terminal (W x D x H) | 4,500 mm x 2,430 mm x 2,140 mm |
| Stand-alone operating terminal (W x D x H) | 800 mm x 710 mm x 1,500–1,700 mm |
| Weight | Approx. 3,200 kg |
MLCube Pro Questions
Answers to common questions about the MLCube Pro.
The DATRON MLCube Pro has a working area of 1,500 mm x 1,000 mm x 200 mm (Z = portal passage), with a traverse path of 1,520 mm x 1,150 mm x 245 mm.
Machining spindle: 3.0 kW–4.0 kW HF spindle up to 40,000 rpm; HSK-E 25. Tool magazine: DATRON ToolAssist 60 or 143 stations with HSK-E 25 with integrated length sensor (optional).
DATRON machines are quoted per configuration and application. Contact AMT Machine Tools with your parts and production requirements, call 416-675-7760, or request a quote online and we will configure and quote the right DATRON milling machine.
