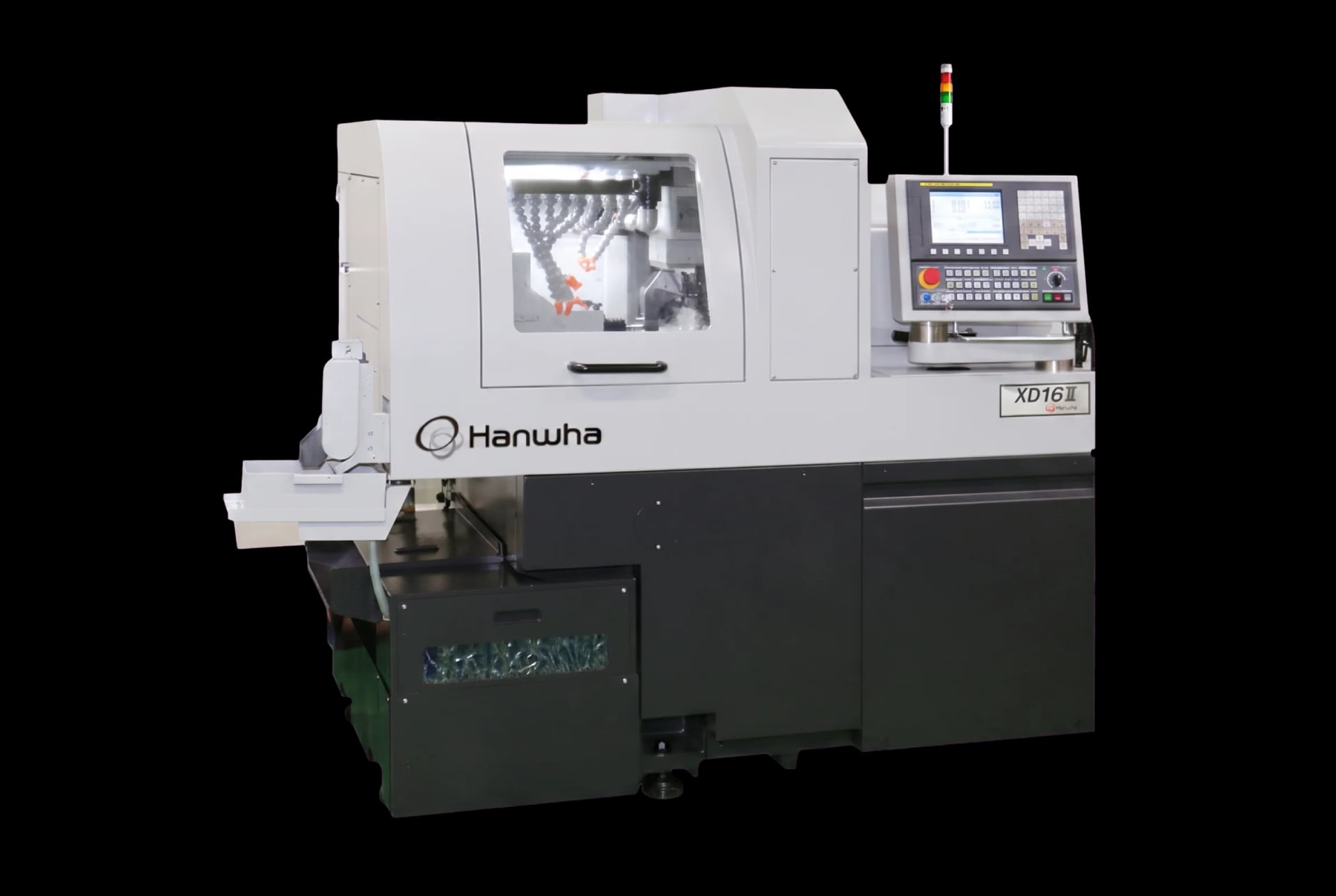

XD16III

The Hanwha XD16III is a compact, high-speed 5-axis Swiss-type lathe designed for precise production of small components from bar stock up to Ø16 mm. The machine's 15,000 rpm main spindle makes it well suited to harder-to-machine materials and small-diameter features that benefit from elevated cutting speeds, while its 2.2/3.7 kW motor delivers the torque needed to maintain surface finish in stainless, titanium, and alloy steels. The standard tool layout includes five OD tools (□12 mm), four front tools (ER11 at Ø20 mm shank), and four cross drill positions (three ER11 plus one ER16). Cross drill speed is 6,000 rpm for the ER16 position and 9,000 rpm for the ER11 positions, giving flexibility for mixed drilling operations. A back tool post carries four ER11 tools in the H (guide bush, driven back tool) configuration (two fixed, two driven at 9,000 rpm, 1.0 kW motor), or four fixed ER11 tools in the J (guide bush, fixed back tool) configuration. Z1 stroke with guide bush is 155 mm. An optional Cross Unit 5 with modular design (three ER11 tools plus two modular ER16 tools) and a front tool unit that attaches to the 5-axis cross unit are available for shops requiring additional front-machining capability. A 1-tool long drill option (ER11) supports deep-hole drilling to 76.5 mm depth. The sub-spindle runs at 10,000 rpm with a 0.55/1.1 kW motor. At 2,200 kg and 1,700 x 1,190 x 1,670 mm, the XD16III has one of the smallest footprints in the XD range, making it practical for shops with limited floor space. AMT Machine Tools is the Canadian dealer for Hanwha, supplying the XD16III with full parts and service support.

Ideal For

• High-speed production of small-diameter precision parts in demanding materials
• Medical and dental subcontractors working in the Ø10 – Ø16 mm range
• Shops seeking a compact Swiss centre with a small footprint
• Operations requiring mixed ER11/ER16 cross tooling on 16 mm bar
• Canadian precision shops served by AMT Machine Tools' Hanwha dealer support
