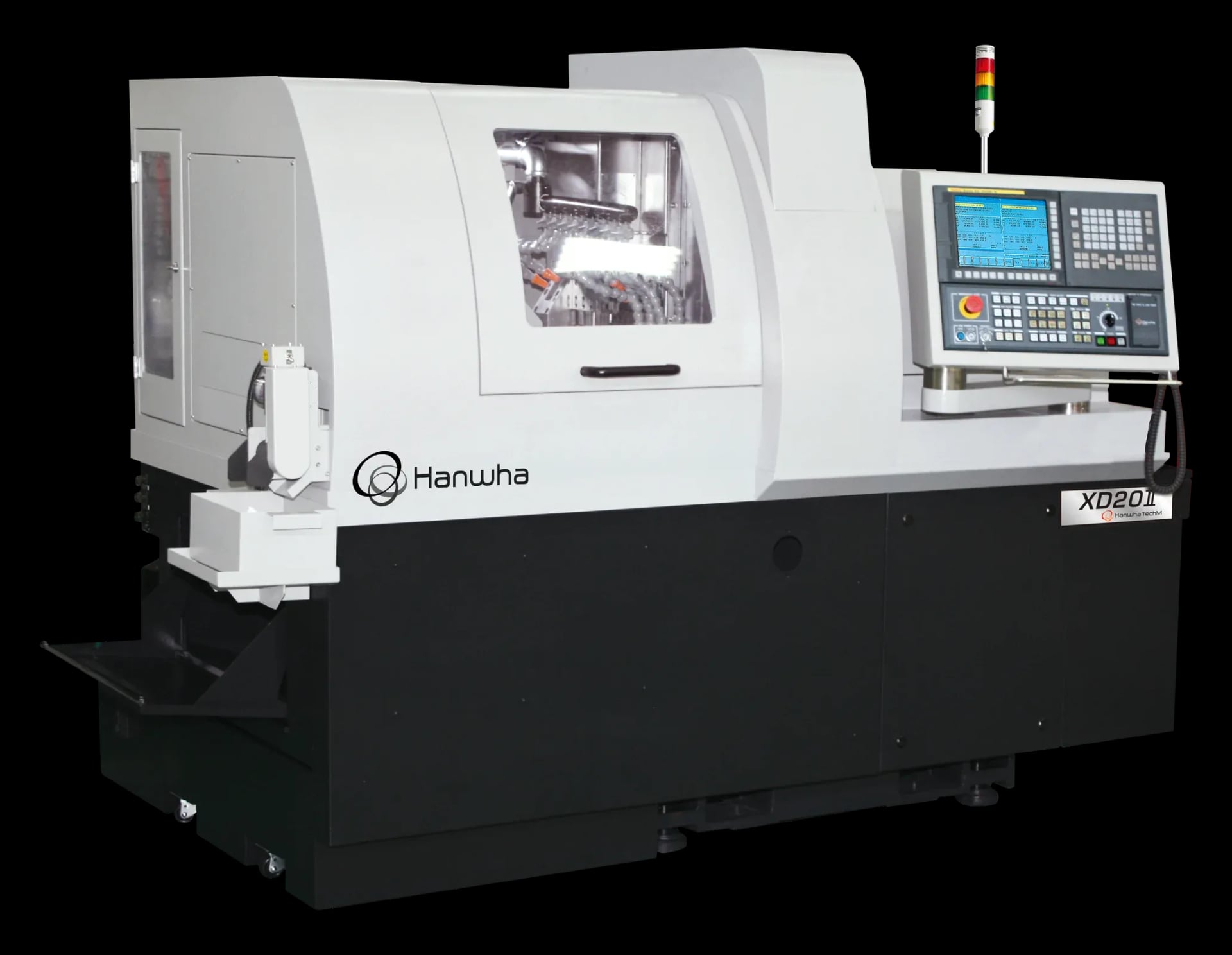

Hanwha CNC Machine Tool
XD20/26II
by Hanwha
Hanwha's best-selling 5-axis sliding-headstock Swiss lathe for Ø20 and Ø26 mm bar, with a wide range of modular cross and back tool options and Fanuc or Siemens control.
Ø20 / Ø26 mm
Max. Machining Diameter
210 mm
Z1 Stroke (Guide Bush — Fanuc)
240 mm
Z1 Stroke (Guide Bush — Siemens)
Ideal For
- Job shops seeking a proven, flexible Swiss centre for Ø20 and Ø26 mm bar
- High-volume production runs in electronics, automotive, and medical sectors
- Shops wanting extensive tooling configurability with a modular cross and back tool system
- Operators transitioning from cam lathes who need Fanuc or Siemens familiarity
- Canadian manufacturers supported by local Hanwha dealer parts and service
XD20/26II Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Modular back tool design with up to six tool positions (option) for efficient secondary-spindle operations
- Sub-spindle off-centre drill option available as driven ER16 or fixed long-drill format to cover deep-hole requirements
Ease of Operation
- Standard gear-modular cross unit with four ER16 positions; upgradeable to Cross Unit 5 or Cross Unit 6 for greater milling versatility
- Broad Fanuc 32i-B or Siemens 828D control choice across all configurations
- Wide range of option accessories including internal coolant-driven tools, 3-face/counterface-driven cross tools, and chip conveyor
Built-In Extras
- Available in four configurations (H, N, NH, M) to suit long-bar, short-bar, or deep-hole machining requirements
- Compact 2,260 mm machine length relative to tooling capability
Hanwha XD20/26II Swiss-Type CNC Lathe Technical Details
Complete specifications, standard features, and optional upgrades.
- Max. Machining Diameter
- Ø20 mm / Ø26 mm
- Z1 Stroke (Guide Bush H — Fanuc)
- 210 mm
- Z1 Stroke (Guide Bush H — Siemens)
- 240 mm
- Z1 Stroke (Non-Guide Bush N)
- 60 mm
- Z1 Stroke (NH — Guide Bush)
- 160 mm
- Z1 Stroke (NH — Non-Guide Bush)
- 50 mm
- Z1 Stroke (M configuration)
- 210 mm
- Bar / Chuck Size — Main (Ø20)
- TF25
- Bar / Chuck Size — Sub (Ø20)
- TF25
- Guide Bush (Ø20)
- TD25-NS
- Bar / Chuck Size — Main (Ø26)
- TF32
- Bar / Chuck Size — Sub (Ø26)
- TF32
- Guide Bush (Ø26)
- CD25
| Max. Machining Diameter | Ø20 mm / Ø26 mm |
| Z1 Stroke (Guide Bush H — Fanuc) | 210 mm |
| Z1 Stroke (Guide Bush H — Siemens) | 240 mm |
| Z1 Stroke (Non-Guide Bush N) | 60 mm |
| Z1 Stroke (NH — Guide Bush) | 160 mm |
| Z1 Stroke (NH — Non-Guide Bush) | 50 mm |
| Z1 Stroke (M configuration) | 210 mm |
| Bar / Chuck Size — Main (Ø20) | TF25 |
| Bar / Chuck Size — Sub (Ø20) | TF25 |
| Guide Bush (Ø20) | TD25-NS |
| Bar / Chuck Size — Main (Ø26) | TF32 |
| Bar / Chuck Size — Sub (Ø26) | TF32 |
| Guide Bush (Ø26) | CD25 |
XD20/26II Questions
Answers to common questions about the XD20/26II.
The XD20/26II accommodates bar stock up to Ø20 mm or Ø26 mm. The machine uses TF25 chuck and TD25-NS guide bush for the 20 mm range, or TF32 chuck and CD25 guide bush for the 26 mm range.
The standard configuration includes four ER16 cross drill positions. An optional Cross Unit 5 provides five ER16M positions, and Cross Unit 6 extends this to six positions mixing ER11M and ER16 holders. The cross unit uses a gear-modular design for easy tool changes.
The XD20/26II is available with either Fanuc 32i-B or Siemens 828D control. The Z1 guide bush stroke differs slightly between the two (210 mm on Fanuc, 240 mm on Siemens).
