Hanwha CNC Machine Tool
XD20/26II-V
by Hanwha

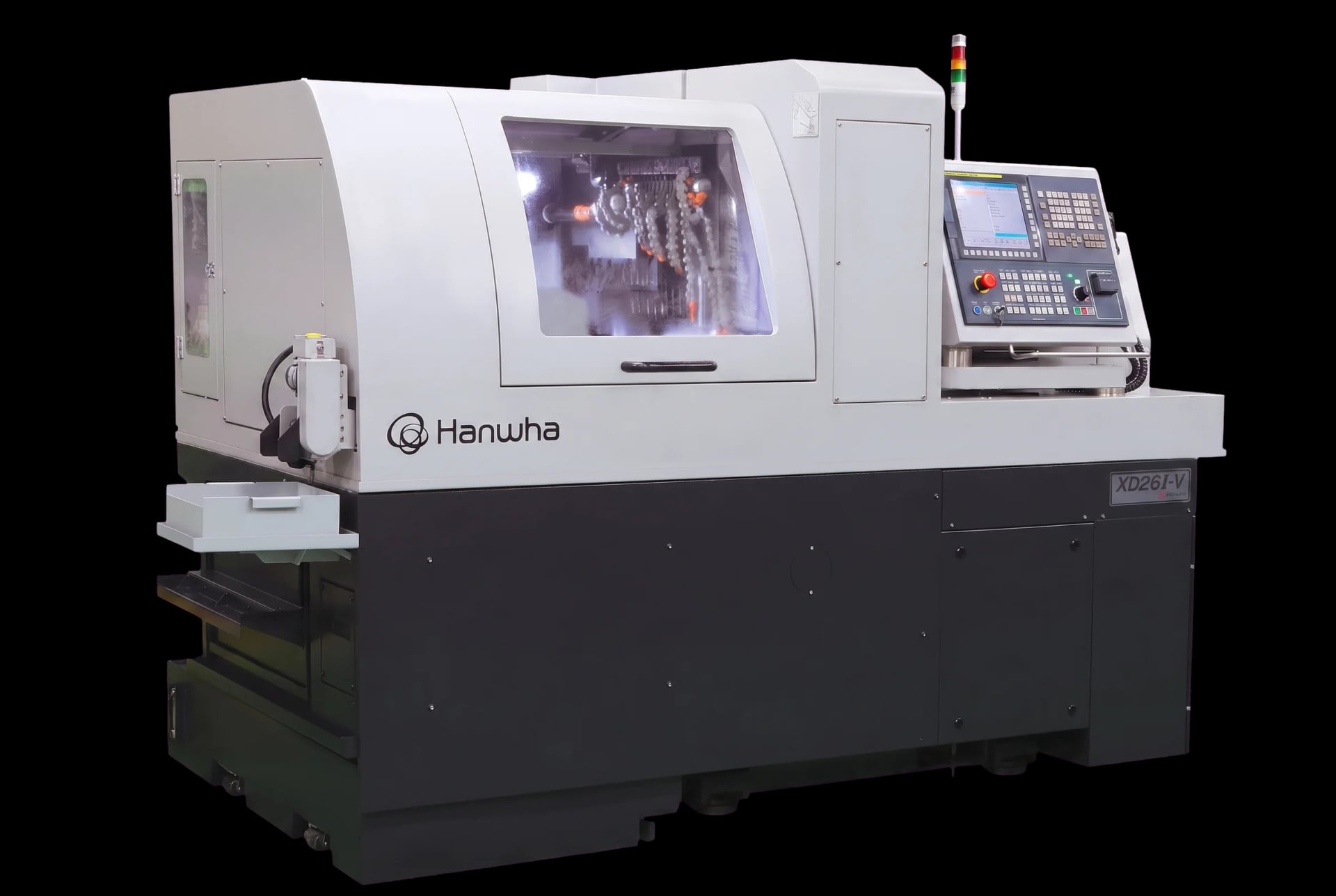

High-complexity Hanwha XD20/26II-V sliding-headstock Swiss lathe with B-axis cross tooling and Y2-axis back tooling for multi-feature parts up to Ø20 and Ø26 mm in a single setup.
Ø20 / Ø26 mm
Max. Machining Diameter
210 mm
Z1 Stroke (Guide Bush)
10,000 rpm (Ø20) / 8,000 rpm (Ø26)
Main Spindle Speed
Ideal For
- Shops producing high-complexity parts that cannot be completed in two passes on a standard Swiss lathe
- Medical and aerospace subcontractors requiring B-axis angular tooling on small-diameter bar
- Facilities needing maximum tooling versatility on Ø20 and Ø26 mm stock in one machine
- Operators who want guide bush / non-guide bush flexibility built in as standard
- Canadian precision machining shops supported by AMT's local Hanwha dealer network
XD20/26II-V Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- B-axis cross unit delivers angular cross tooling capability for complex multi-surface parts that standard cross units cannot achieve
- Y2-axis back tool post with eight ER16 positions (four fixed, four driven) handles demanding backworking without a second operation
- Cross cooling system on the cross unit reduces thermal deformation by up to 48%, supporting dimensional consistency in extended runs
- Gear-modular B-axis cross unit accommodates a wide range of tool types including triple-speed rotating drill, internal coolant-driven tools, and 3-face/counterface-driven tools
- Built-in motor sub-spindle delivers higher torque for secondary-spindle operations compared to belt-driven alternatives
- Siemens 840D control option available for B-axis operation, alongside Fanuc 32i-B and Siemens 828D for non-B-axis configurations
Built-In Extras
- Convertible guide bush (NH) configuration allows the same machine to handle both long slender bar and shorter workpieces
Hanwha XD20/26II-V Swiss-Type CNC Lathe Technical Details
Complete specifications, standard features, and optional upgrades.
- Max. Machining Diameter
- Ø20 mm / Ø26 mm
- Z1 Stroke (Guide Bush H)
- 210 mm
- Z1 Stroke (Non-Guide Bush N)
- 50 mm
- Z1 Stroke (NH — Guide Bush portion)
- 210 mm
- Z1 Stroke (NH — Non-Guide Bush portion)
- 50 mm
- Bar / Chuck Size — Main (Ø20)
- TF25
- Bar / Chuck Size — Sub (Ø20)
- TF25
- Guide Bush (Ø20)
- TD25-NS
- Bar / Chuck Size — Main (Ø26)
- TF32
- Bar / Chuck Size — Sub (Ø26)
- TF32
- Guide Bush (Ø26)
- CD25
- Configuration
- NH (convertible guide bush)
| Max. Machining Diameter | Ø20 mm / Ø26 mm |
| Z1 Stroke (Guide Bush H) | 210 mm |
| Z1 Stroke (Non-Guide Bush N) | 50 mm |
| Z1 Stroke (NH — Guide Bush portion) | 210 mm |
| Z1 Stroke (NH — Non-Guide Bush portion) | 50 mm |
| Bar / Chuck Size — Main (Ø20) | TF25 |
| Bar / Chuck Size — Sub (Ø20) | TF25 |
| Guide Bush (Ø20) | TD25-NS |
| Bar / Chuck Size — Main (Ø26) | TF32 |
| Bar / Chuck Size — Sub (Ø26) | TF32 |
| Guide Bush (Ø26) | CD25 |
| Configuration | NH (convertible guide bush) |
XD20/26II-V Questions
Answers to common questions about the XD20/26II-V.
The "V" designation indicates the high-complexity variant. It adds a B-axis cross unit for angular tooling and a Y2-axis back tool post carrying eight ER16 tools, giving it the ability to machine complex multi-surface parts in a single setup. The cross cooling system that cuts thermal deformation by up to 48% is also a notable V-specific feature.
The standard options are Fanuc 32i-B or Siemens 828D. For B-axis operation, the Siemens 840D controller is required.
Yes, internal coolant-driven tool options are available for the cross, back, and off-centre positions as optional accessories.
Ready to Discuss the XD20/26II-V?
Our team has 62+ years of experience helping Canadian manufacturers find the right CNC equipment for their production needs.
60+
Years in Business
3,500+
Installations
7
Brands Represented
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Or email us at [email protected]
