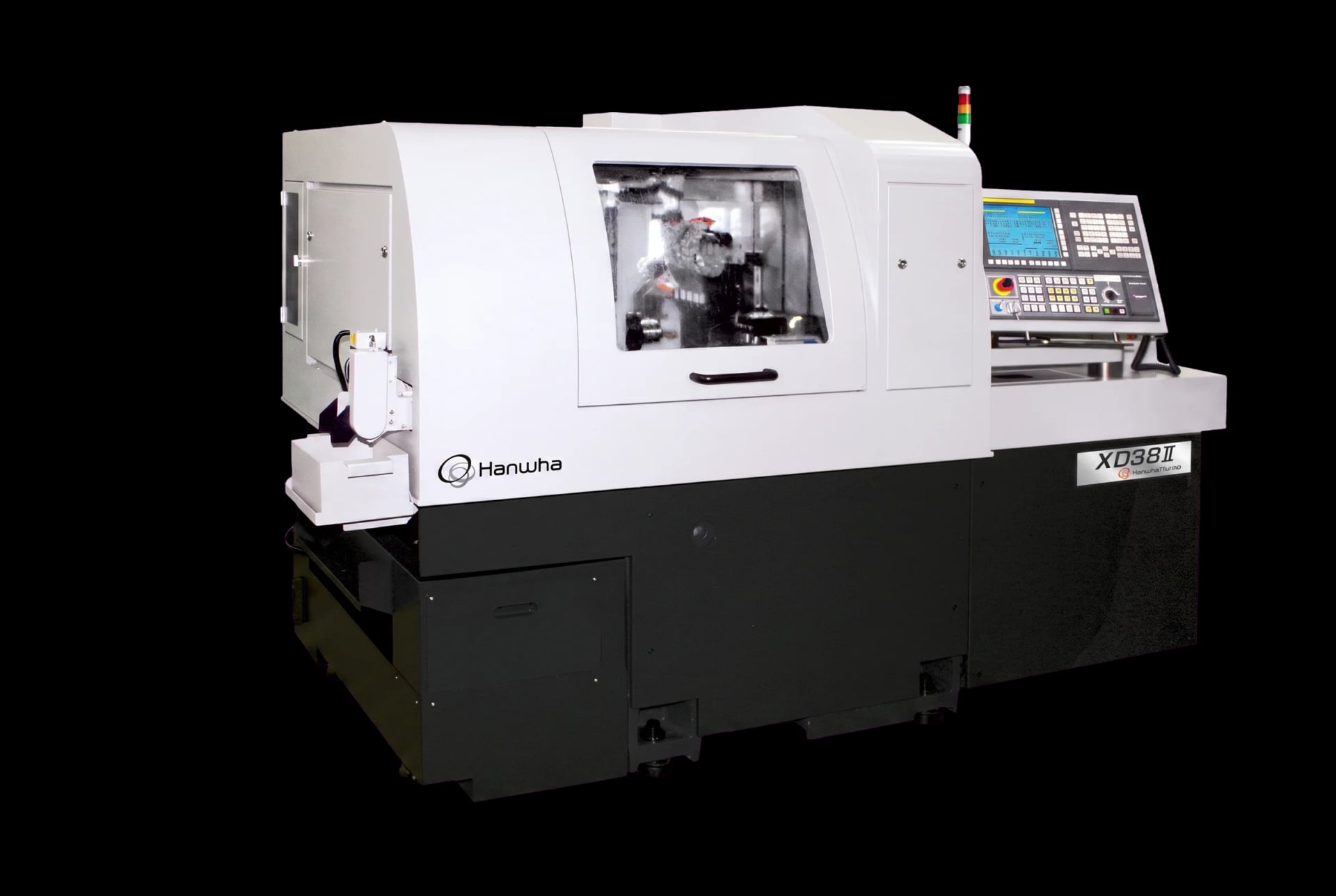

Hanwha CNC Machine Tool
XD38II
by Hanwha
Versatile 5/6/7-axis Swiss-type CNC lathe for Ø38mm bar stock with a broad choice of guide-bush configurations, sub spindle motor types, and a customisable back-tool layout scaling from 4 to 8 positions.
Ø32 / 38 mm
Max. Machining Diameter
320 mm (H) / 80 mm (N) / 142 mm (H) + 80 mm (N) for NH / 320 mm (He)
Z1 Stroke (by config)
6,500 rpm
Main Spindle Speed
Ideal For
- Job shops wanting maximum configuration flexibility from a single 38mm Swiss platform
- Operations with mixed work that sometimes needs strong sub spindle power and sometimes does not
- Shops upgrading from an older Swiss lathe that want a well-proven, widely supported 38mm machine
- Productions where back-tool scaling (4 to 8) lets one machine cover multiple part families
- Canadian manufacturers seeking AMT-supported Hanwha Swiss lathes with on-the-ground application expertise
XD38II Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Sub spindle motor choice (built-in 2.2/5.5 kW vs. Hanwha Fanuc-i 1.1/3.7 kW) lets buyers match machine specification to actual sub spindle demand
- Off-centre drill unit (2 positions, ER16) provides eccentric drilling via motor drive (NH/H/N configs) or gear drive (He config)
- 5/6/7-axis capability -- when combined with cross drilling, back tooling, and off-centre drilling, the XD38II handles compound operations in a single chuck
Ease of Operation
- Widest configuration range in the Hanwha 38mm family -- guide-bush, non-guide-bush, convertible, and Hanwha Fanuc-i variants address different production requirements
- Modular back tool system supports interchangeable driven tool modules for flexible tool configurations without full reconfiguration
- Common cross-drill ER16 modular tooling shared with XD38II-R and XD38III, protecting tooling investment across the platform family
Built-In Extras
- Back tool unit scalable from 4 to 8 positions with driven count adjustable up to 8, enabling the tooling layout to match the part's secondary operation complexity
Hanwha XD38II Swiss-Type CNC Lathe Technical Details
Complete specifications, standard features, and optional upgrades.
- Max. Machining Diameter
- Ø32 / 38 mm
- Z1 Stroke -- Guide Bush (H)
- 320 mm
- Z1 Stroke -- Non-Guide Bush (N)
- 80 mm
- Z1 Stroke -- Convertible NH
- 142 mm (H), 80 mm (N)
- Z1 Stroke -- He (Hanwha Fanuc-i)
- 320 mm
- Configuration
- H (G/B), N (Non-G/B), NH (Convertible), He (Hanwha Fanuc-i with G/B)
- Air Flow Rate
- 120 -- 150 L/min
| Max. Machining Diameter | Ø32 / 38 mm |
| Z1 Stroke -- Guide Bush (H) | 320 mm |
| Z1 Stroke -- Non-Guide Bush (N) | 80 mm |
| Z1 Stroke -- Convertible NH | 142 mm (H), 80 mm (N) |
| Z1 Stroke -- He (Hanwha Fanuc-i) | 320 mm |
| Configuration | H (G/B), N (Non-G/B), NH (Convertible), He (Hanwha Fanuc-i with G/B) |
| Air Flow Rate | 120 -- 150 L/min |
XD38II Questions
Answers to common questions about the XD38II.
The XD38II is described as a 5/6/7-axis machine. The exact count depends on the configuration chosen: the NH convertible guide bush version with cross drilling, back tooling, and the off-centre drill unit reaches 7 axes.
The built-in motor (Fanuc 32i-B) delivers 2.2/5.5 kW and 20/49 Nm -- suited to heavier sub spindle cuts in tougher materials. The Hanwha Fanuc-i spindle motor option provides 1.1/3.7 kW and 7/28 Nm at a lower cost, and is a practical choice when sub spindle operations are lighter drilling or parting cycles. Both spin at 6,500 rpm.
The back tool unit is scalable. The standard NH configuration carries 6 tools (4 fixed + 2 driven), and the layout can be extended to 4, 5, 6, or 8 positions, with the driven count ranging up to 8. Note that the 5- and 6-tool configurations are not compatible with simultaneous off-centre drill use.
