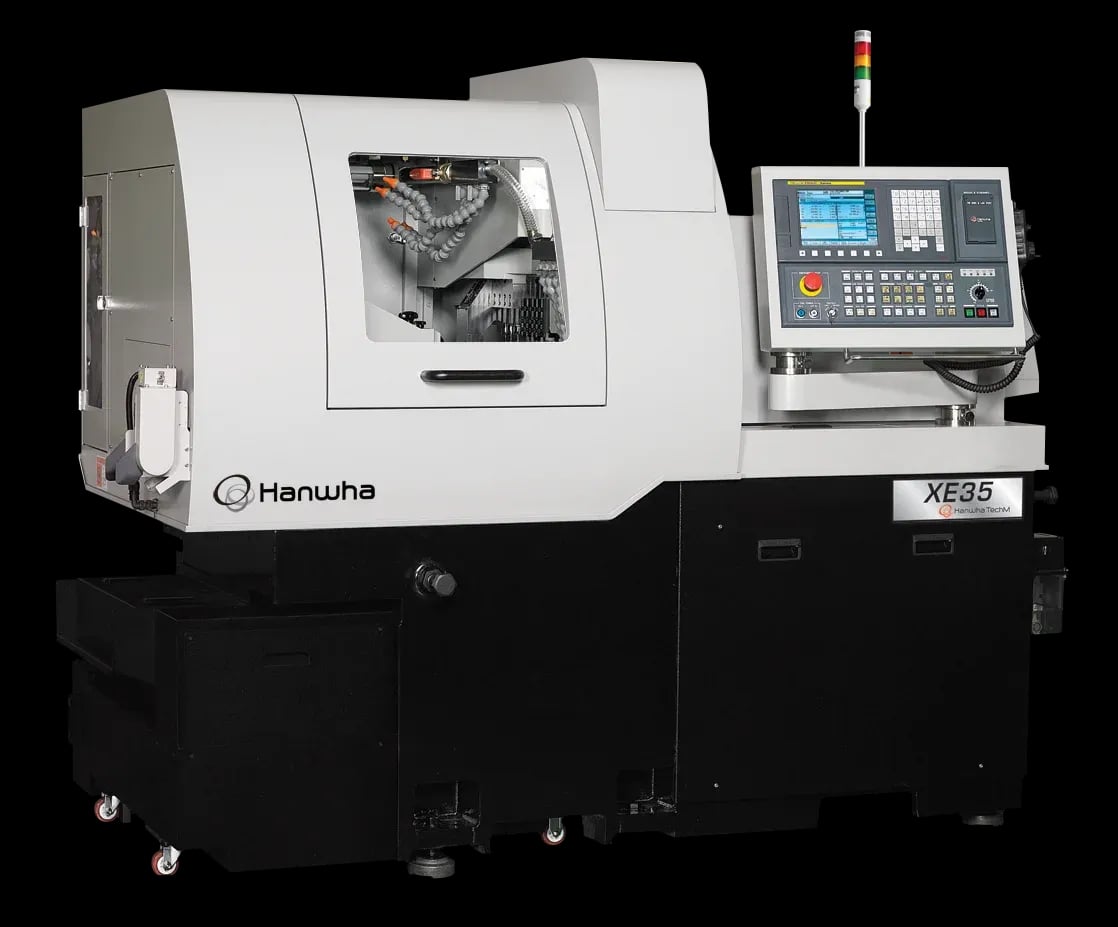

Hanwha CNC Machine Tool
XE35
by Hanwha
A reliable 5-axis sliding-headstock Swiss lathe for bar stock up to Ø35 mm, offering a compact and cost-effective entry point into the Hanwha XE series.
Ø35 mm
Max. Machining Diameter
Hanwha Fanuc-i
NC Controller
5
Number of Axes
Ideal For
- Job shops stepping into larger-diameter Swiss turning for the first time
- Automotive and industrial precision parts in bar diameters from 20 mm to 35 mm
- Operations that want a straightforward 5-axis platform without multi-path complexity
- Shops converting from fixed-headstock CNC lathes to Swiss turning
- Facilities needing a cost-effective high-quality Swiss lathe for mid-volume production
XE35 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Handles bar stock up to Ø35 mm — the widest capacity in the XE series — opening the range to larger-diameter automotive, hydraulic, and industrial precision components.
- Back tool unit (2 driven + 2 fixed, ER16) allows simultaneous front and back machining to reduce cycle time on parts requiring sub-spindle work.
- Off-centre drill option (1 x ER16) enables angular hole features at the cross position without a full B-axis setup.
Ease of Operation
- Hanwha Fanuc-i control delivers full CNC programmability and tool-management capability on a proven, accessible platform suited to high-mix production.
- Spline modular cross tooling (standard) allows flexible toolholder changes without dedicated cross units, reducing tooling inventory cost.
Built-In Extras
- Guide bush and non-guide bush configurations (H and N) are available, letting shops choose between long-workpiece support and bar-remnant economy.
- Optional Cross Unit 5 expands front, cross, and OD tool stations to 5 each, along with compatibility with 3-face counterface-driven and angle-driven tool units.
Hanwha XE35 Swiss-Type CNC Lathe Technical Details
Complete specifications, standard features, and optional upgrades.
- Max. Machining Diameter
- Ø35 mm
- Z1 Stroke (H — guide bush)
- 210 mm
- Z1 Stroke (N — non-guide bush)
- 60 mm
- Chuck / Guide Bush — Main / Sub / Guide
- HW35 / HW35 / TD45
| Max. Machining Diameter | Ø35 mm |
| Z1 Stroke (H — guide bush) | 210 mm |
| Z1 Stroke (N — non-guide bush) | 60 mm |
| Chuck / Guide Bush — Main / Sub / Guide | HW35 / HW35 / TD45 |
XE35 Questions
Answers to common questions about the XE35.
The XE35 handles bar stock up to Ø35 mm, making it the largest-capacity model in the XE series and suited to connector, fitting, and hydraulic component work that would exceed the capacity of the XE20/26.
The XE35 uses the Hanwha Fanuc-i control, which provides standard G-code programmability, tool management, and the cycle time optimisation features found across Hanwha's XE and XD ranges.
Yes. The XE35 comes standard with a 4-tool cross drill unit (ER16M) running at 6,000 rpm on a 1.0 kW motor, and an optional Cross Unit 5 expands this to 5 cross positions. Back-tool driven positions (2 x ER16 driven) are also included for back-face milling and drilling.
