Victor Taichung CNC Lathes
Vturn-A200/60
by Victor Taichung

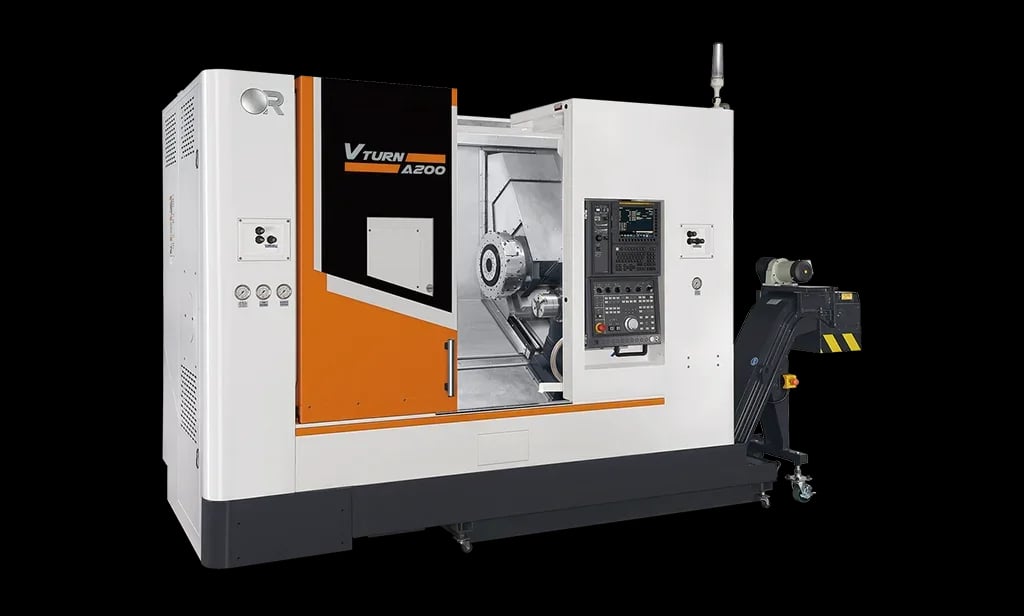

An 'ahead of performance' CNC turning lathe with a large 720 mm swing, digital tailstock and rotary operation panel, on a one-piece 30-degree slant bed.
One-piece 30° slant bed
Bed
720 mm
Swing diameter
8" power chuck, 4200 rpm
Chuck
Vturn-A200/60 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Chuck: 8" power chuck, 4200 rpm
- Z-axis travel: 600 mm
- Rapid feeds: 24 / 24 m/min (X/Z)
Machining Capability
- Bed: One-piece 30° slant bed
- Features: Digital tailstock, rotary operation panel
Built-In Extras
- Swing diameter: 720 mm
- Thrust force: 1583 Nm
Victor Taichung Vturn-A200/60 Technical Details
Complete specifications, standard features, and optional upgrades.
- Bed
- One-piece 30° slant bed
- Swing diameter
- 720 mm
- Chuck
- 8" power chuck, 4200 rpm
- Z-axis travel
- 600 mm
- Thrust force
- 1583 Nm
- Rapid feeds
- 24 / 24 m/min (X/Z)
- Features
- Digital tailstock, rotary operation panel
| Bed | One-piece 30° slant bed |
| Swing diameter | 720 mm |
| Chuck | 8" power chuck, 4200 rpm |
| Z-axis travel | 600 mm |
| Thrust force | 1583 Nm |
| Rapid feeds | 24 / 24 m/min (X/Z) |
| Features | Digital tailstock, rotary operation panel |
Vturn-A200/60 Questions
Answers to common questions about the Vturn-A200/60.
The Vturn-A200/60 is a CNC lathe from Victor Taichung. An 'ahead of performance' CNC turning lathe with a large 720 mm swing, digital tailstock and rotary operation panel, on a one-piece 30-degree slant bed.
Bed: One-piece 30° slant bed; Swing diameter: 720 mm; Chuck: 8" power chuck, 4200 rpm; Z-axis travel: 600 mm; Thrust force: 1583 Nm; Rapid feeds: 24 / 24 m/min (X/Z); Features: Digital tailstock, rotary operation panel.
Victor Taichung machines are quoted per configuration and application. Contact AMT Machine Tools with your parts and production requirements, call 416-675-7760, or request a quote online and we will configure and quote the right machine.
Ready to Discuss the Vturn-A200/60?
Our team has 62+ years of experience helping Canadian manufacturers find the right CNC equipment for their production needs.
60+
Years in Business
3,500+
Installations
7
Brands Represented
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Or email us at [email protected]
