Victor Taichung CNC Lathes

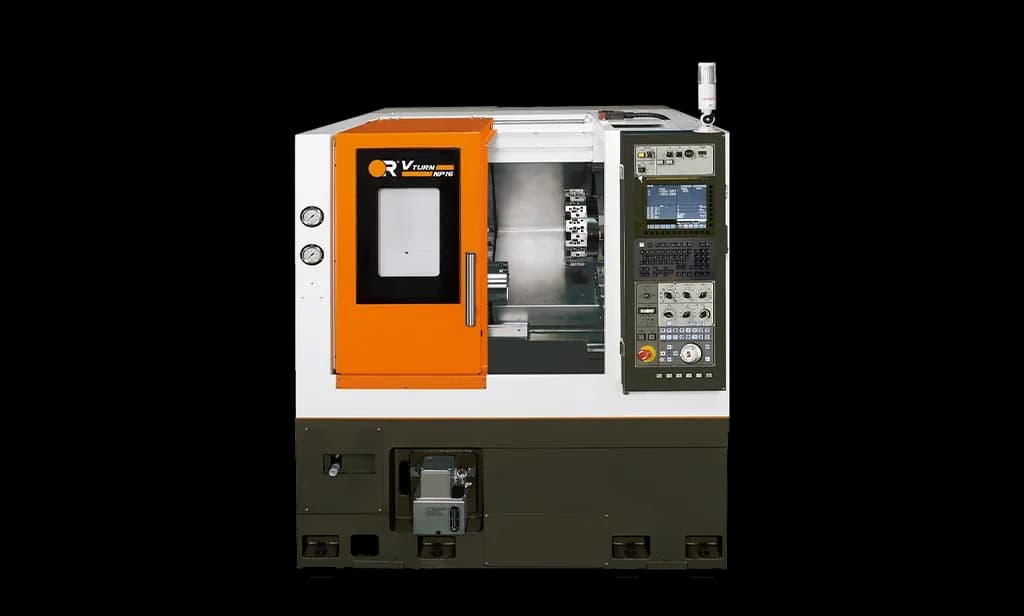

Vturn-NP16
A compact horizontal turning lathe with a slim 1488 mm machine width, built for shops tight on floor space that still want a full-power 6" chuck and Victor's…
Victor Taichung Vturn-NP16
Machine width
1488 mm
Z-travel
250 mm
Rapid feed
30 m/min
Chuck
6" power chuck
The Complete Victor Taichung CNC Lathes Lineup
Each system is engineered for specific applications. Compare specs to find the right fit.
CNC Lathe

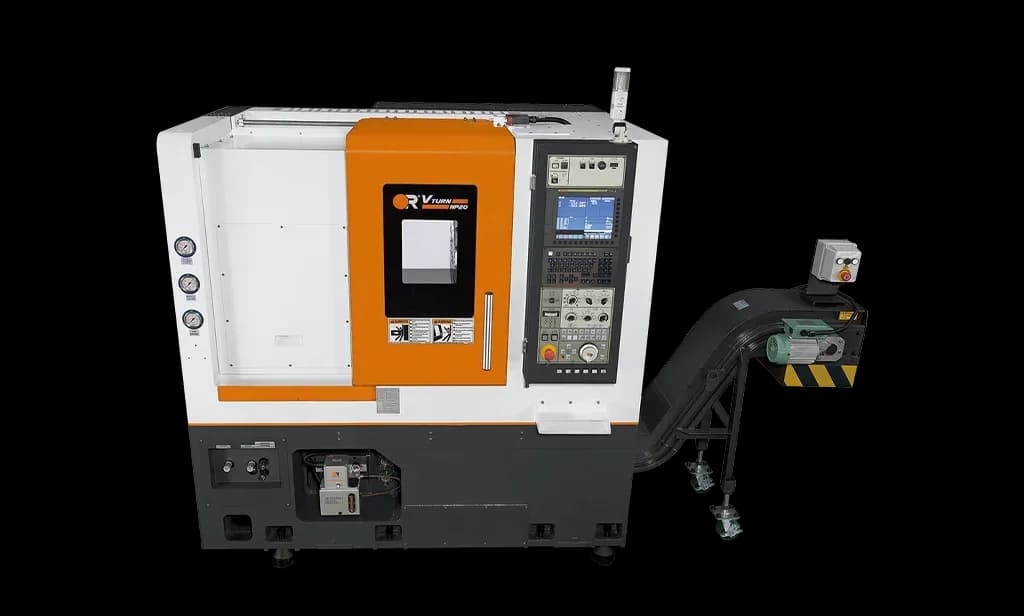

Vturn-NP20
A step up from the NP16 with a larger 8" chuck and longer Z-travel, still in a compact 1930 mm-wide footprint with the same PLC thermal-compensation feature.
- Machine width
- 1930 mm
- Z-travel
- 400 mm
- Rapid feed
- 30 m/min
- Chuck
- 8" power chuck
CNC Lathe
Vturn-NP26
The largest NP-series lathe, with a 10" chuck, servo BMT65 turret and a one-piece slant bed built to run unmanned, including a demonstrated pairing with…
- Rapid feeds
- 30 / 30 m/min
- Chuck
- 10" chuck
- Guideways
- Roller guideways
- Turret
- Servo BMT65
CNC Lathe
Vturn-F20/60
A fighting-market box-way CNC lathe with a genuine one-piece 30-degree slant bed, built for shops that want box-slideway rigidity at an accessible price.
- Bed
- One-piece 30° slant bed with box slideways
- Spindle
- Shortened, belt-driven for lower noise/heat
- Z-axis ballscrew
- Ø40 mm
- Chuck
- 8" chuck
Vertical Turning Lathe

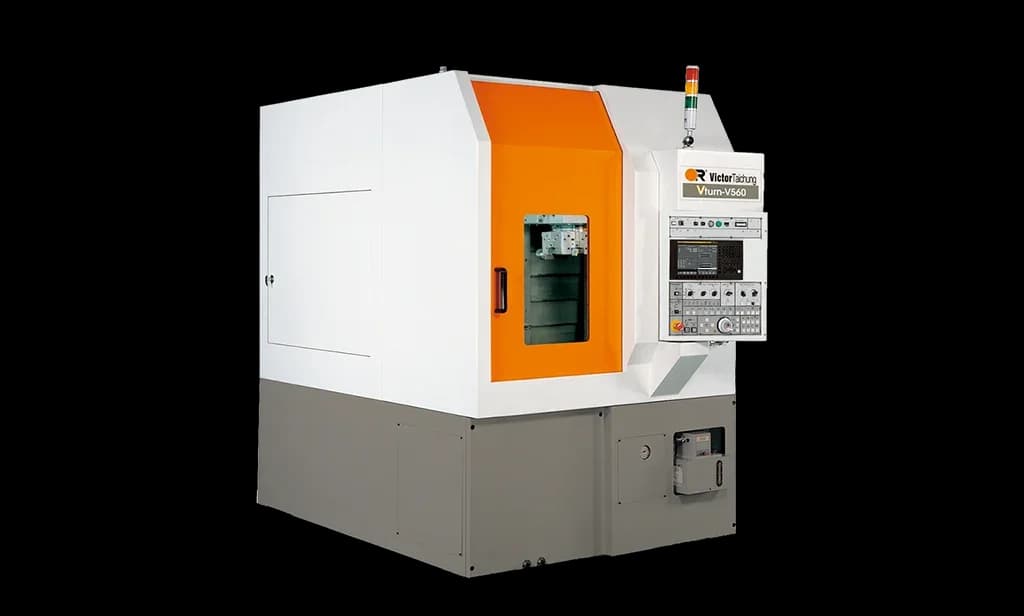

Vturn-V560
A compact vertical turning lathe designed for high roundness on parts like automotive components, with an ergonomic layout for easy loading/unloading and…
- Design focus
- High roundness / surface finish for auto parts (no gravity effect on turning)
- Footprint
- Compact, easy cell layout
- Ergonomics
- Easy loading/unloading for operators
- Chip handling
- Integral chip disposal, no coolant leakage
CNC Lathe
Vturn-S36/125
The long-bed Vturn-S36, extending Z-travel to 1250 mm for longer heavy parts on the same 45-degree slant-bed, A2-11 spindle platform.
- Bed
- One-piece 45° slant bed
- Spindle nose
- A2-11 with 2-step gearbox
- Swing diameter
- 680 mm
- Chuck
- 12" power chuck, 2500 rpm
Vertical Turning Lathe

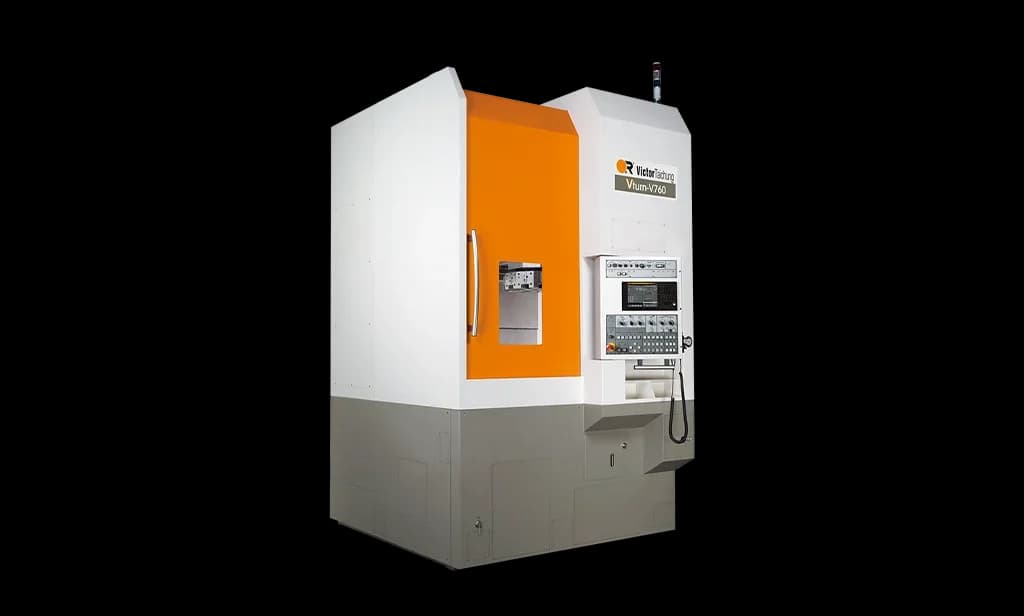

Vturn-V760
A larger vertical turning lathe with a 760 mm maximum turning diameter and 900 mm swing, built for shops moving up to bigger or heavier turned parts.
- Max. turning diameter
- 760 mm
- Swing
- 900 mm
- Design focus
- High roundness / surface finish, no gravity effect on turning
CNC Lathe

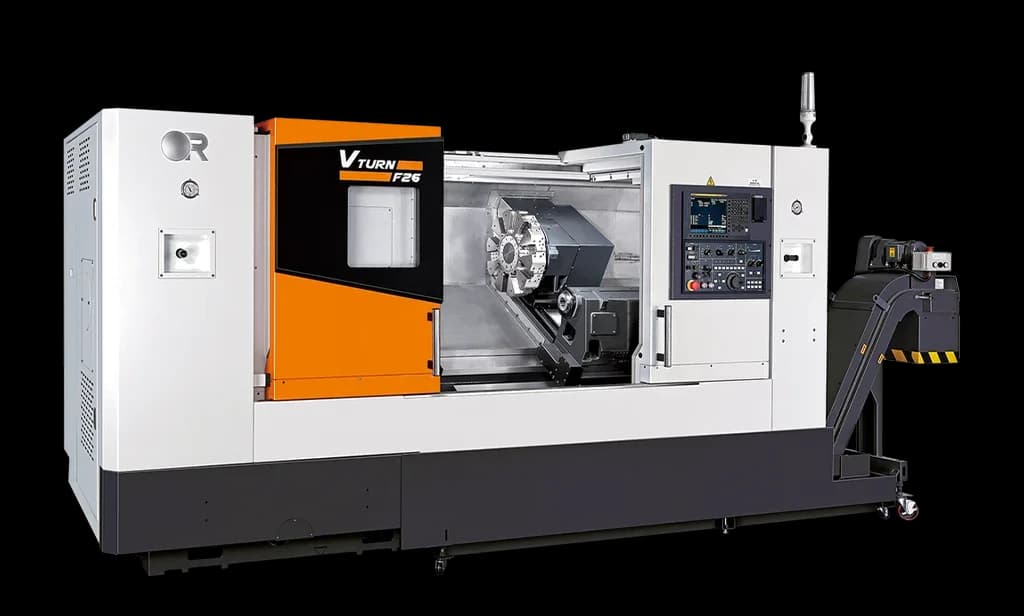

Vturn-F26/60
The 10"-chuck version of the fighting-market Vturn-F box-way lathe, for shops needing a bit more swing and clamping force on the same rigid slant-bed platform.
- Bed
- One-piece 30° slant bed with box slideways
- Spindle
- Shortened, belt-driven for lower noise/heat
- Z-axis ballscrew
- Ø40 mm
- Chuck
- 10" chuck
Vertical Turning Lathe

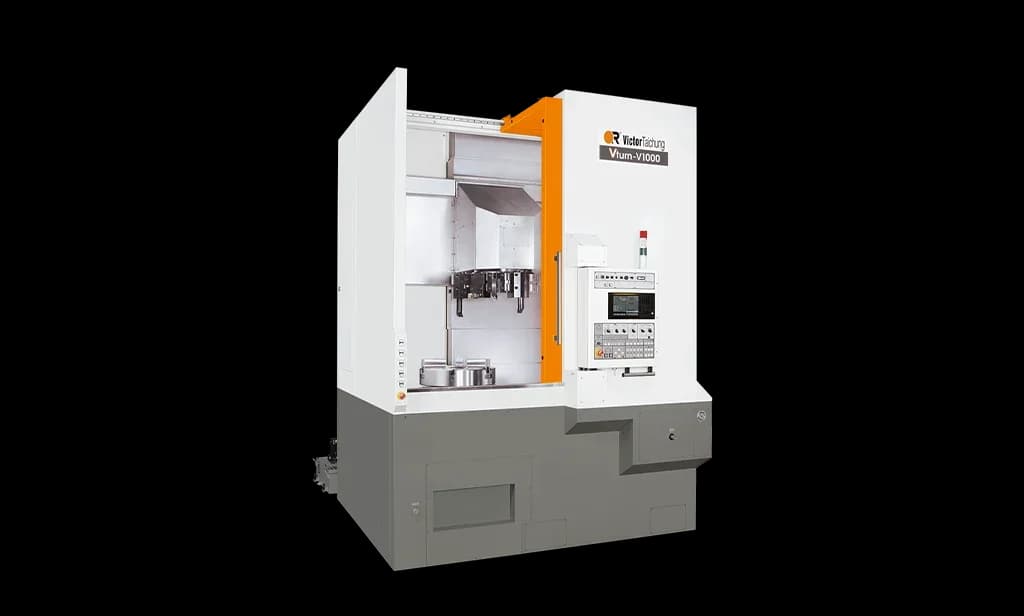

Vturn-V1000
The largest model in the Vturn-V vertical turning lathe range, for the biggest or heaviest turned parts the series handles.
- Series design focus
- High roundness / surface finish, no gravity effect on turning
- Chip handling
- Integral chip disposal, no coolant leakage
CNC Lathe

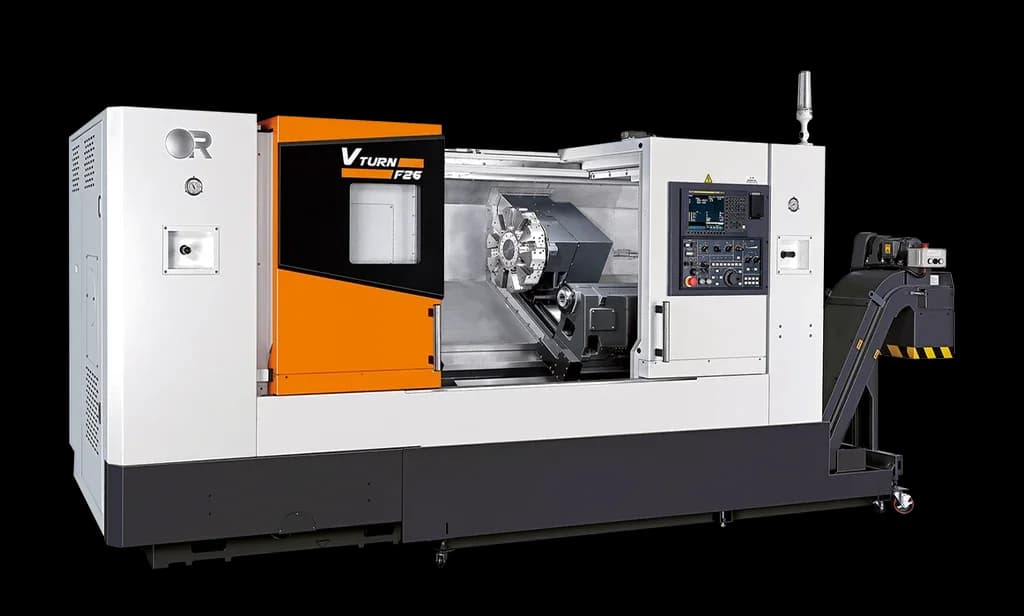

Vturn-F26/110
The long-bed version of the Vturn-F26, adding Z-travel over the F26/60 for longer shaft-type parts on the same box-way slant-bed construction.
- Bed
- One-piece 30° slant bed with box slideways
- Spindle
- Shortened, belt-driven for lower noise/heat
- Z-axis ballscrew
- Ø40 mm
- Chuck
- 10" chuck
Wheel Machining Lathe

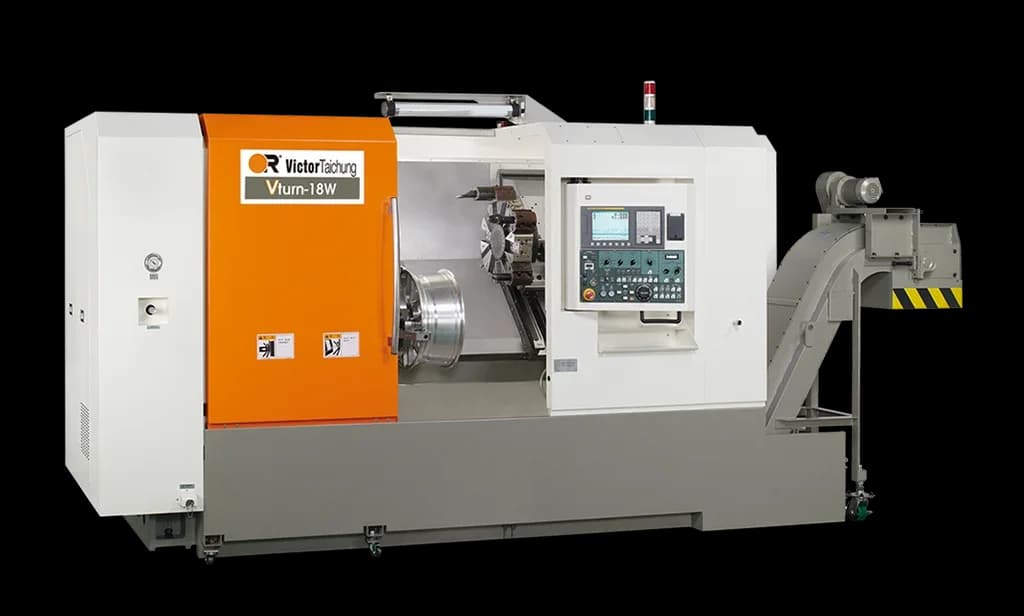

Vturn-18W
A cost-effective slant-bed CNC lathe purpose-built for turning alloy wheels up to 18 inches, with strong coolant flow and fully enclosed guarding to contain…
- Wheel size
- Up to 18 inches
- Bed
- Slant bed
- Guarding
- Fully enclosed, high-pressure coolant, large coolant tank
CNC Lathe

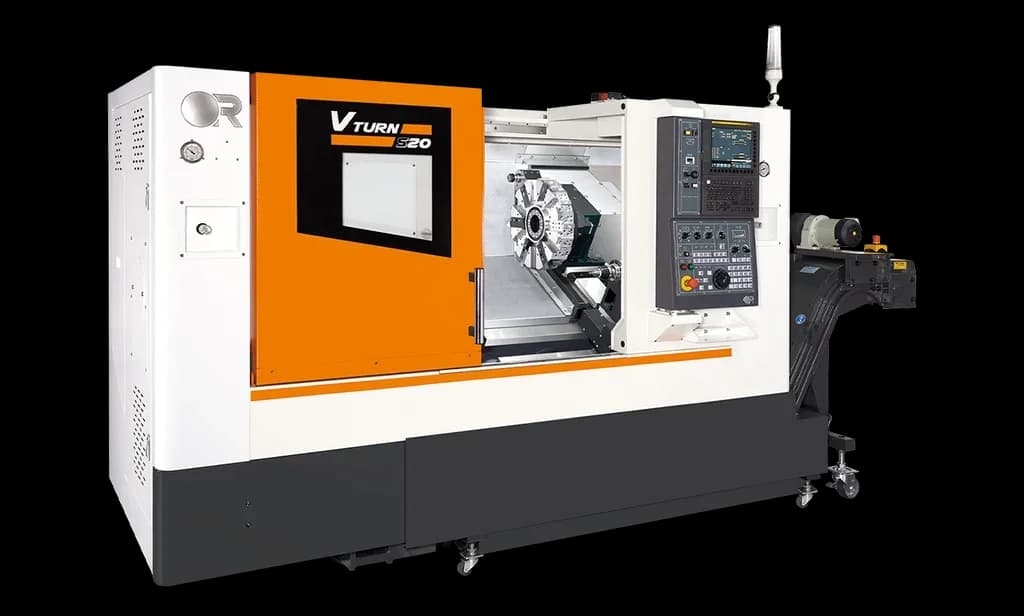

Vturn-S20/40
A high-steady box-way turning lathe on a one-piece 30-degree slant bed, with a shortened belt-driven spindle and an optional C-axis/BMT-55 turret for light…
- Bed
- One-piece 30° slant bed
- Max. swing diameter
- 600 mm
- Chuck
- 8" power chuck, 4200 rpm
- Z-axis travel
- 400 mm
CNC Lathe

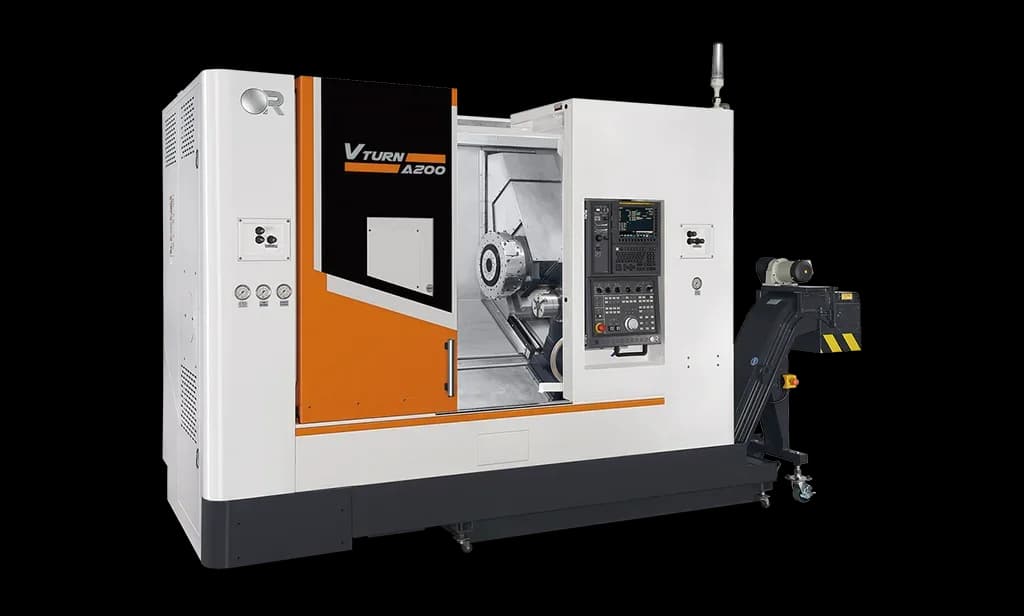

Vturn-A200/60
An 'ahead of performance' CNC turning lathe with a large 720 mm swing, digital tailstock and rotary operation panel, on a one-piece 30-degree slant bed.
- Bed
- One-piece 30° slant bed
- Swing diameter
- 720 mm
- Chuck
- 8" power chuck, 4200 rpm
- Z-axis travel
- 600 mm
Wheel Machining Lathe

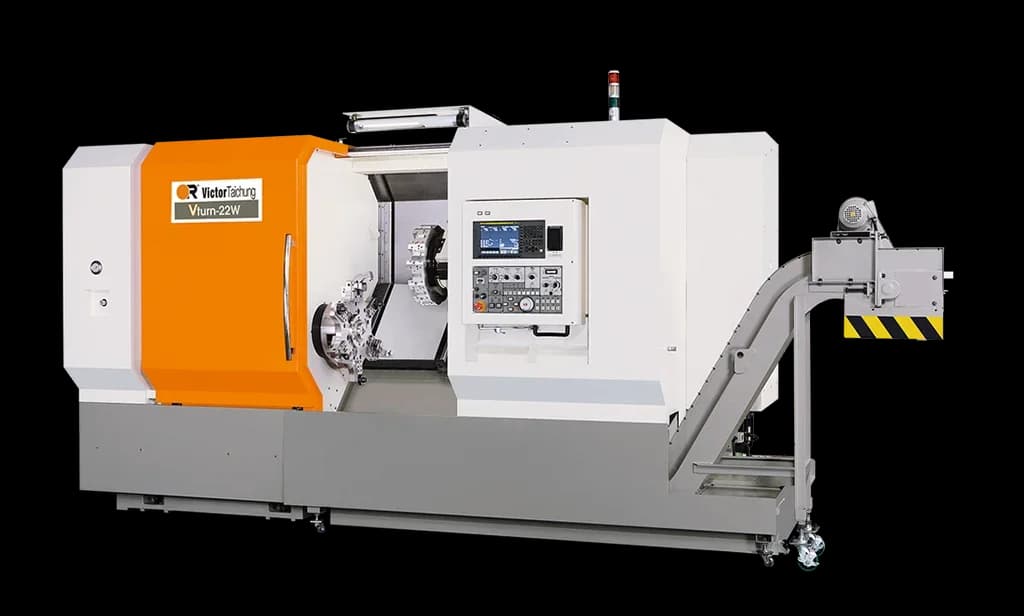

Vturn-22W
The mid-size model in Victor's alloy-wheel lathe line, a cost-effective solution for turning wheels up to 22 inches with the same enclosed…
- Wheel size
- Up to 22 inches
- Bed
- Slant bed
- Guarding
- Fully enclosed, high-pressure coolant, large coolant tank
CNC Lathe

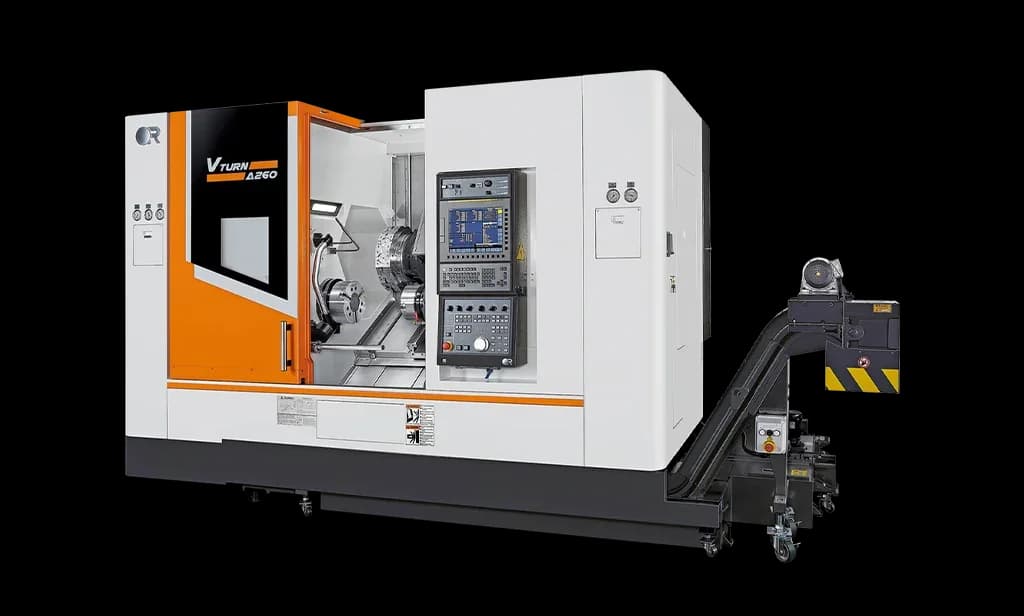

Vturn-A260/75
A larger-swing Vturn-A model with a 10" main chuck, small-pitch ballscrew for high thrust, and an 8" sub-spindle chuck option for done-in-one part completion.
- Bed
- One-piece 30° slant bed
- Chuck
- 10" power chuck, 3500 rpm
- Z-axis travel
- 750 mm
- Rapid feed
- 24 m/min (Z-axis)
CNC Lathe

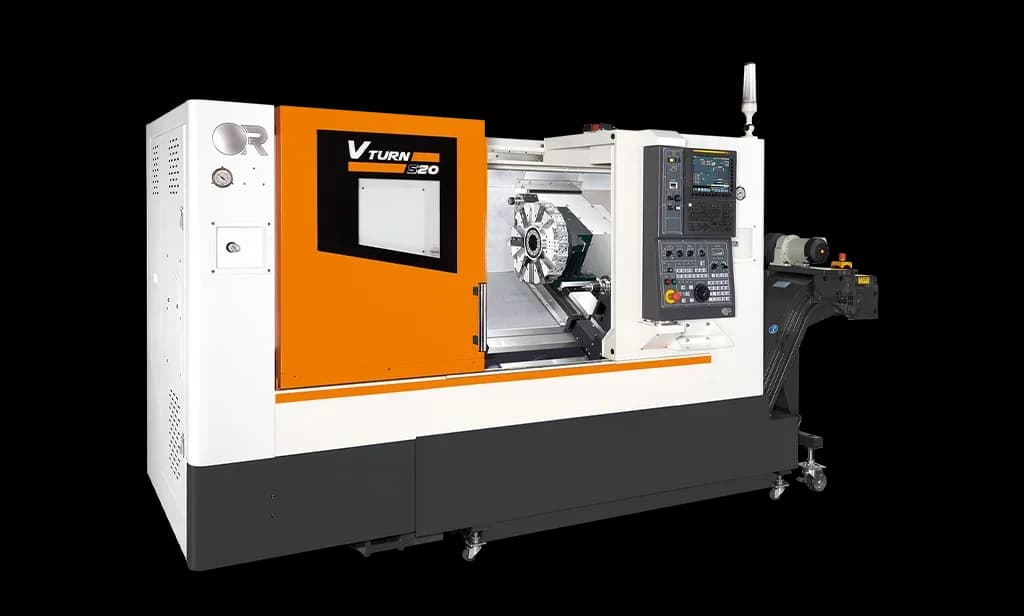

Vturn-S20/60
The longer-bed version of the Vturn-S20, giving 600 mm of Z-travel for longer parts on the same box-way, 8"-chuck platform.
- Bed
- One-piece 30° slant bed
- Max. swing diameter
- 600 mm
- Chuck
- 8" power chuck, 4200 rpm
- Z-axis travel
- 600 mm
Wheel Machining Lathe
Vturn-24W
The largest slant-bed model in the Vturn-W alloy-wheel lathe line, extending wheel-turning capacity to 24 inches on the same enclosed, high-coolant-flow…
- Wheel size
- Up to 24 inches
- Bed
- Slant bed
- Guarding
- Fully enclosed, high-pressure coolant, large coolant tank
CNC Lathe

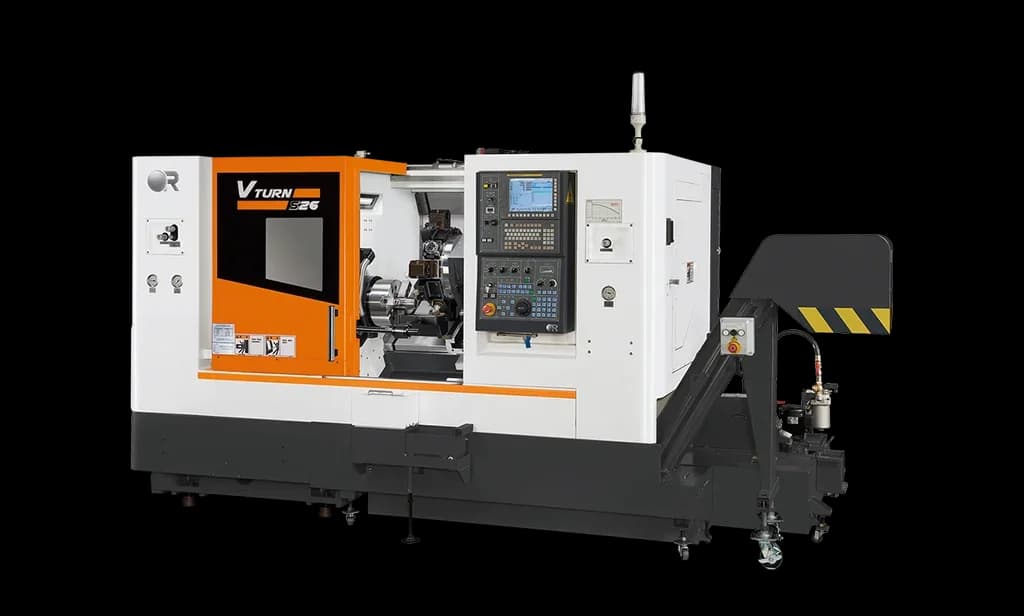

Vturn-S26/60
A heavier-duty box-way lathe with a 600 mm swing and a substantial 22 kW / 574 Nm spindle for demanding cuts, on a one-piece 30-degree slant bed.
- Bed
- One-piece 30° slant bed
- Swing diameter
- 600 mm
- Chuck
- 10" power chuck
- Z-axis travel
- 610 mm
Wheel Machining Lathe
Vturn-V22W
A 4-axis vertical CNC lathe purpose-designed for alloy wheel production, built for easier wheel loading/unloading and reduced spindle idle time versus a…
- Configuration
- Vertical 4-axis CNC lathe
- Wheel size
- Approx. 15–22 inch wheels
- Design goal
- Easier loading/unloading, reduced spindle idle time
CNC Lathe

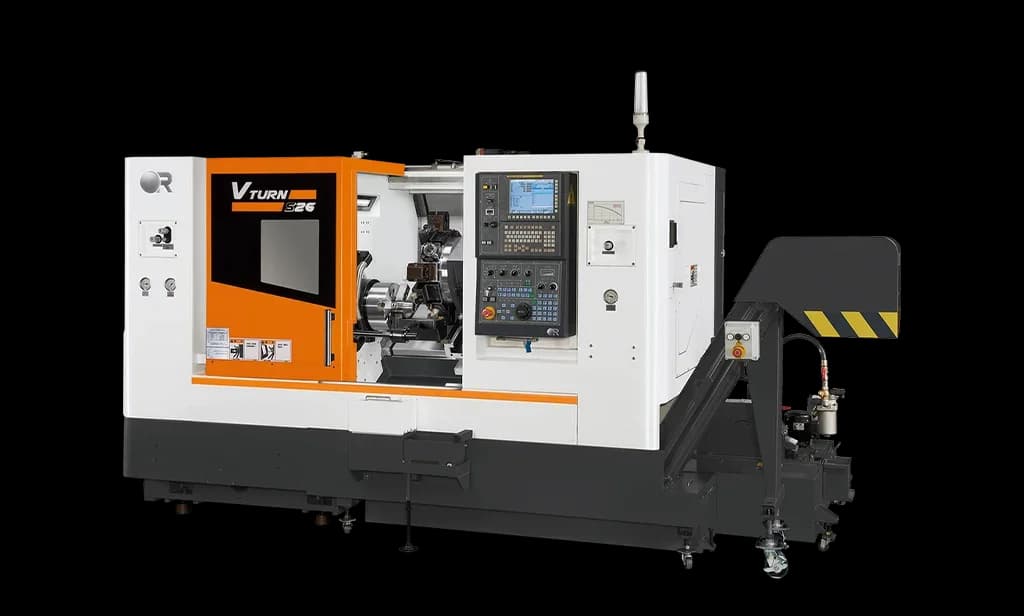

Vturn-S26/110
The long-bed Vturn-S26, extending Z-travel to 1090 mm for longer shafts while keeping the same high-torque 22 kW spindle and 600 mm swing.
- Bed
- One-piece 30° slant bed
- Swing diameter
- 600 mm
- Chuck
- 10" power chuck
- Z-axis travel
- 1090 mm
Wheel Machining Lathe

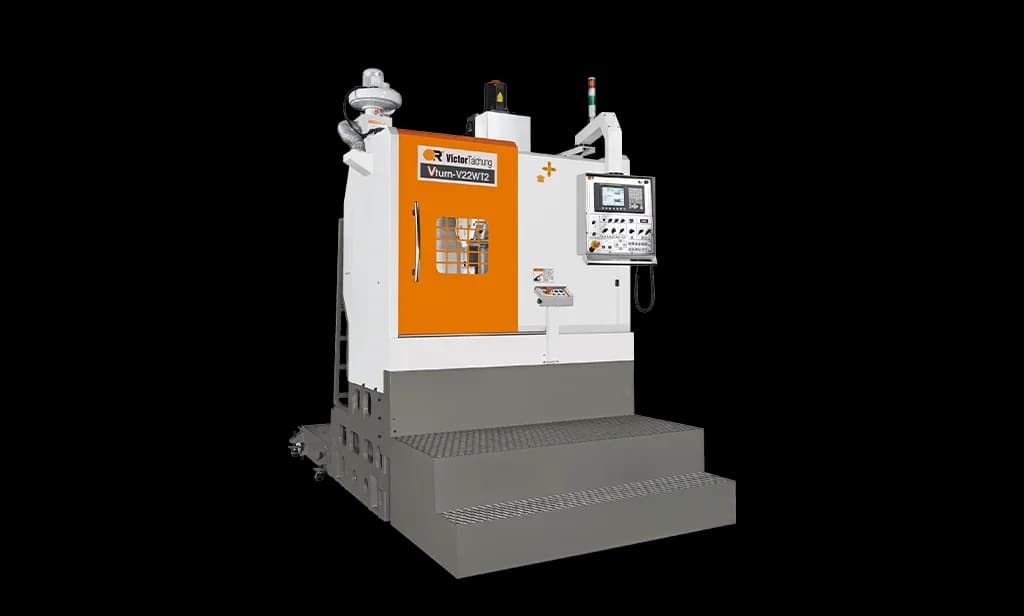

Vturn-V22WT2
A single-turret vertical lathe variant for alloy wheel machining, built on the same vertical 4-axis platform as the Vturn-V22W for wheel producers…
- Configuration
- Vertical lathe, single turret
- Wheel size
- Approx. 15–22 inch wheels
- Design goal
- Easier loading/unloading, reduced spindle idle time
CNC Lathe

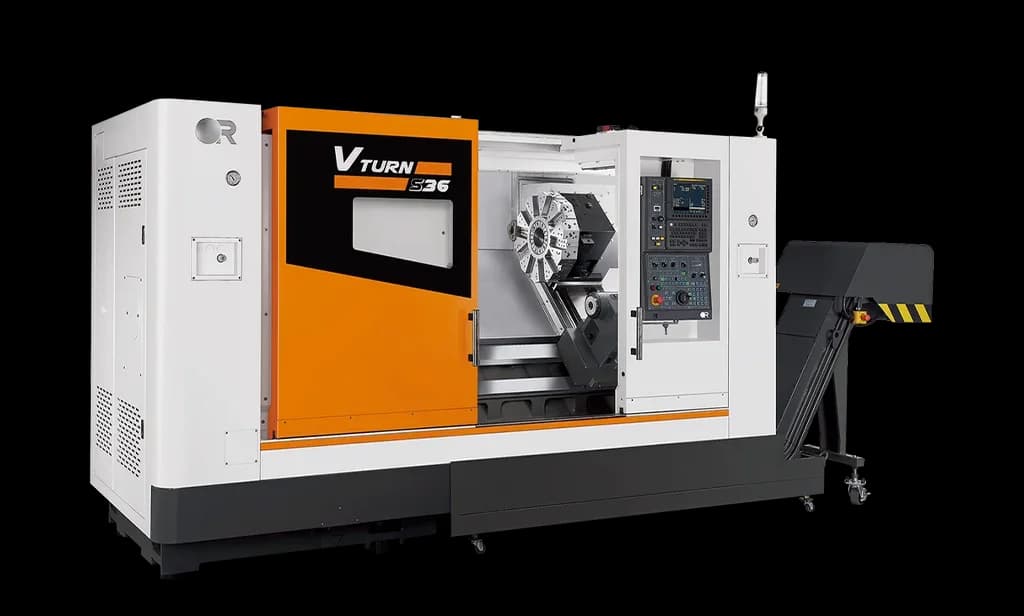

Vturn-S36/85
A large-swing, heavy-duty box-way lathe with an A2-11 spindle nose and 2-step gearbox, built on a 45-degree one-piece slant bed for high-thrust turning of…
- Bed
- One-piece 45° slant bed
- Spindle nose
- A2-11 with 2-step gearbox
- Swing diameter
- 680 mm
- Chuck
- 12" power chuck, 2500 rpm
CNC Lathe

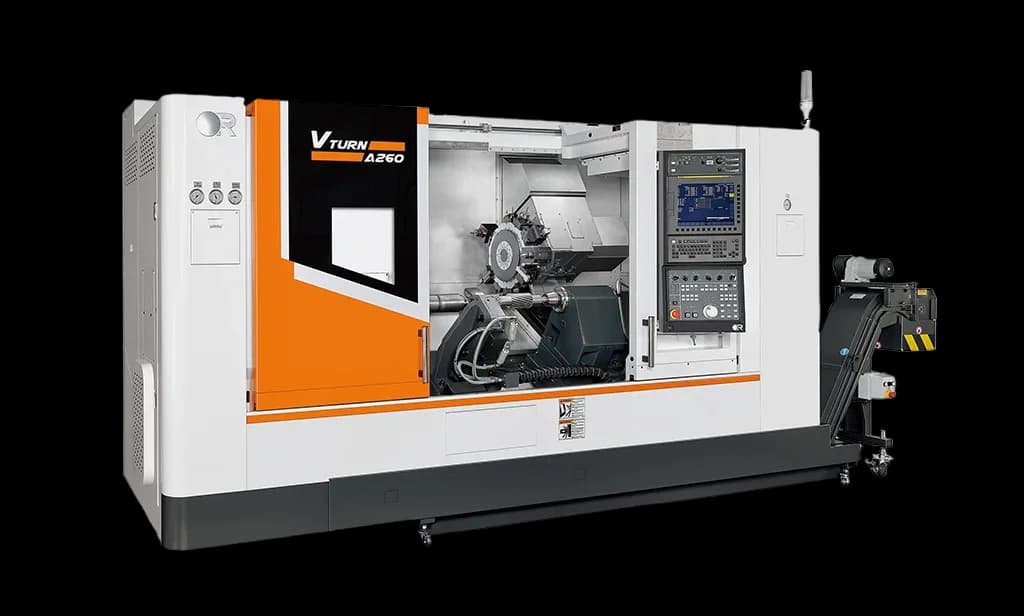

Vturn-A260/130
The long-bed version of the Vturn-A260, adding Z-travel for longer parts on the same 10" chuck, sub-spindle-capable turning-center platform.
- Bed
- One-piece 30° slant bed
- Chuck
- 10" power chuck, 3500 rpm
- Sub-spindle
- 8" chuck option
- Features
- Digital tailstock, shortened belt-driven spindle
Wheel Machining Lathe

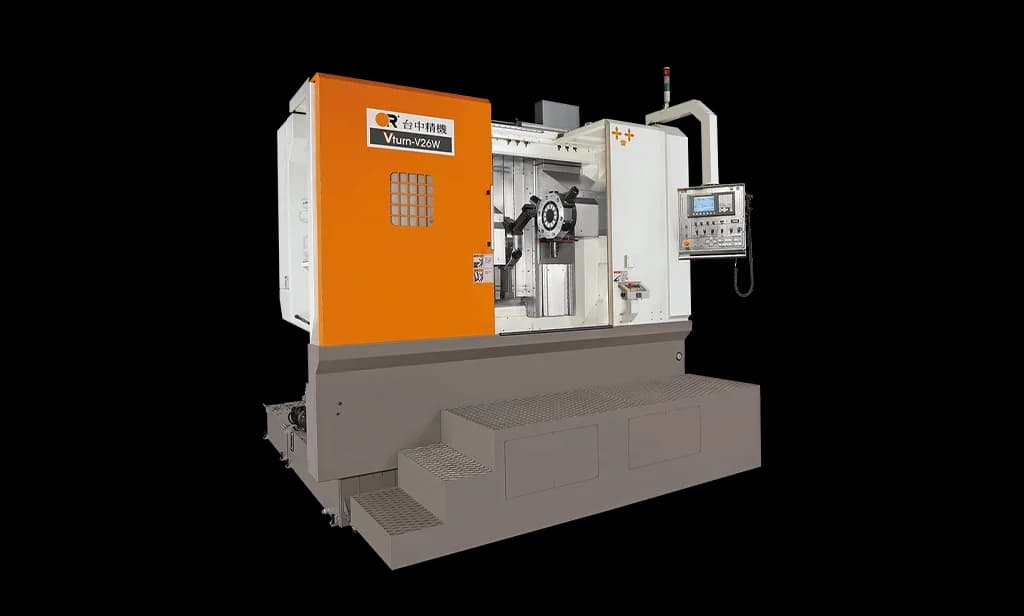

Vturn-V26W
The larger-capacity vertical alloy-wheel lathe in the V-series, covering bigger wheel sizes for OEM and aftermarket wheel manufacturers scaling up production.
- Configuration
- Vertical 4-axis CNC lathe
- Wheel size
- Approx. 17–24 inch wheels
- Design goal
- Easier loading/unloading, reduced spindle idle time
CNC Lathe
Vturn-40/125
A big-swing-over-box-ways heavy cutting lathe with an A2-11 spindle nose, built for turning lengths from 1250 to 4250 mm on a single-piece 45-degree cast…
- Spindle nose
- A2-11
- Turning length range (series)
- 1250 – 4250 mm
- Turning length (this model)
- 1250 mm
- Bar capacity
- 91 mm
Wheel Machining Lathe
Vturn-V26WT2
The single-turret variant of the Vturn-V26W, for wheel manufacturers who want the larger-capacity vertical wheel lathe with a simplified single-turret tooling…
- Configuration
- Vertical lathe, single turret
- Wheel size
- Approx. 17–24 inch wheels
- Design goal
- Easier loading/unloading, reduced spindle idle time
Victor Taichung CNC Lathes Questions
Answers to common questions about our victor taichung cnc lathes products.
AMT offers 39 Victor Taichung turning machines: Vturn horizontal CNC lathes (NP, F, S, A and big-swing 40/45/46 series), Vturn-V vertical turning lathes, VMT-X and Vturn-Q multi-tasking turning centers, and Vturn-W alloy wheel lathes.
Yes. The Vturn-W line includes slant-bed wheel lathes for wheels up to 18, 22 and 24 inches, plus vertical wheel lathes in the Vturn-V22W and Vturn-V26W families.
Victor Taichung machines are quoted per configuration and application. Contact AMT Machine Tools with your parts and production requirements, call 416-675-7760, or request a quote online and we will configure and quote the right machine.
