Victor Taichung CNC Lathes

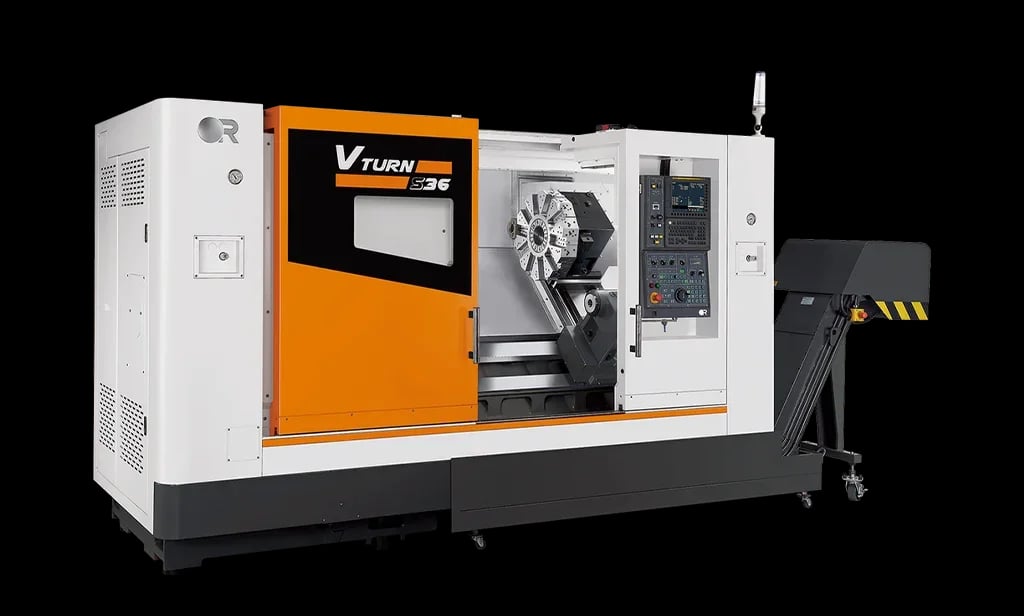

Vturn-S36/125
by Victor Taichung
The long-bed Vturn-S36, extending Z-travel to 1250 mm for longer heavy parts on the same 45-degree slant-bed, A2-11 spindle platform.
One-piece 45° slant bed
Bed
A2-11 with 2-step gearbox
Spindle nose
680 mm
Swing diameter
Vturn-S36/125 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Spindle nose: A2-11 with 2-step gearbox
- Chuck: 12" power chuck, 2500 rpm
- Z-axis travel: 1250 mm
- Rapid feeds: 18 / 20 m/min (X/Z)
- C-axis: Available with higher-power spindle motor
Built-In Extras
- Swing diameter: 680 mm
- Thrust force: 1582 kgf
- Bed: One-piece 45° slant bed
Victor Taichung Vturn-S36/125 Technical Details
Complete specifications, standard features, and optional upgrades.
- Bed
- One-piece 45° slant bed
- Spindle nose
- A2-11 with 2-step gearbox
- Swing diameter
- 680 mm
- Chuck
- 12" power chuck, 2500 rpm
- Z-axis travel
- 1250 mm
- Thrust force
- 1582 kgf
- Rapid feeds
- 18 / 20 m/min (X/Z)
- C-axis
- Available with higher-power spindle motor
| Bed | One-piece 45° slant bed |
| Spindle nose | A2-11 with 2-step gearbox |
| Swing diameter | 680 mm |
| Chuck | 12" power chuck, 2500 rpm |
| Z-axis travel | 1250 mm |
| Thrust force | 1582 kgf |
| Rapid feeds | 18 / 20 m/min (X/Z) |
| C-axis | Available with higher-power spindle motor |
Vturn-S36/125 Questions
Answers to common questions about the Vturn-S36/125.
The Vturn-S36/125 is a CNC lathe from Victor Taichung. The long-bed Vturn-S36, extending Z-travel to 1250 mm for longer heavy parts on the same 45-degree slant-bed, A2-11 spindle platform.
Bed: One-piece 45° slant bed; Spindle nose: A2-11 with 2-step gearbox; Swing diameter: 680 mm; Chuck: 12" power chuck, 2500 rpm; Z-axis travel: 1250 mm; Thrust force: 1582 kgf; Rapid feeds: 18 / 20 m/min (X/Z); C-axis: Available with higher-power spindle motor.
Victor Taichung machines are quoted per configuration and application. Contact AMT Machine Tools with your parts and production requirements, call 416-675-7760, or request a quote online and we will configure and quote the right machine.
