Victor Taichung Machining Centers

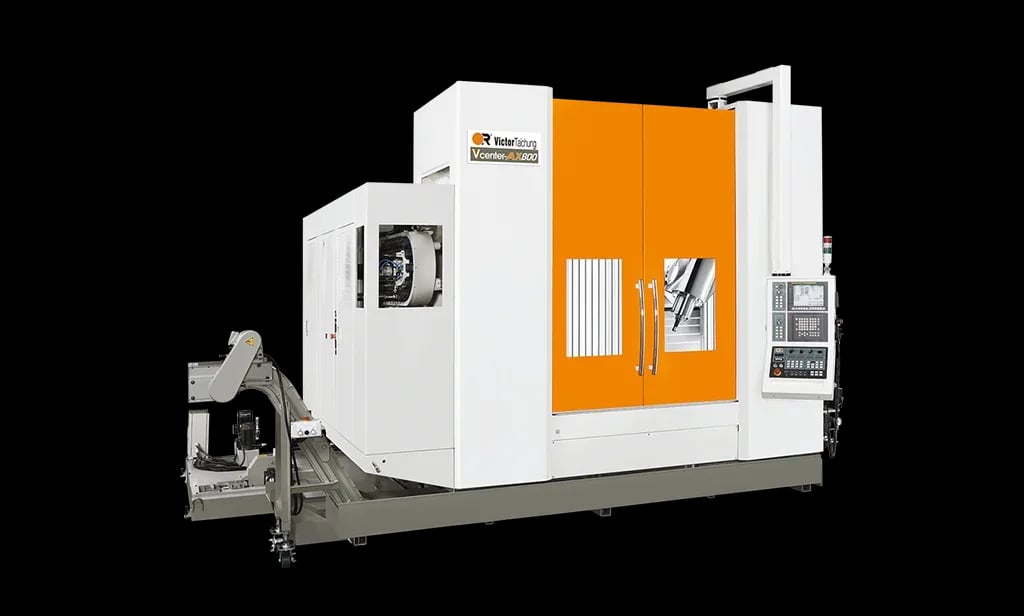

Vcenter-AX800
The large-format model in the Vcenter-AX line, with a swivel head on a traveling column plus a fixed rotary table so shops can 5-axis-machine parts up to 1000…
Victor Taichung Vcenter-AX800
Capacity
5-axis machining of parts up to Ø1000 mm
C-axis clamping torque
3433 Nm
B-axis
Swivel head with Hirth coupling, 1° increments
Spindle
BBT-40, 15,000 rpm, 22 kW
The Complete Victor Taichung Machining Centers Lineup
Each system is engineered for specific applications. Compare specs to find the right fit.
5-Axis Machining Center
Vcenter-FX400
An entry-priced 5-axis vertical machining center for small parts, with a trunnion tilting table and a Fanuc control built specifically for 4+1 axis machining.
- Travels (X/Y/Z)
- 600 / 500 / 500 mm
- Rapid feeds
- 32 / 32 / 32 m/min
- Max. part dimension
- Ø400 x H160 mm + Ø220 x H250 mm
- Table
- Trunnion type tilting table, Ø320 mm
Horizontal Machining Center
Vcenter-H400
An entry HMC in the Vcenter-H line built for fast axis rapids and quick pallet exchange, using a T-structure with LM guideways and a rotary-style APC.
- Spindle
- Built-in motor-spindle (high performance)
- Pallet change
- Rotary-style APC for quick exchange
- Structure
- T structure with LM guideways
- ATC/APC
- Quick changeover on both
Vertical Machining Center

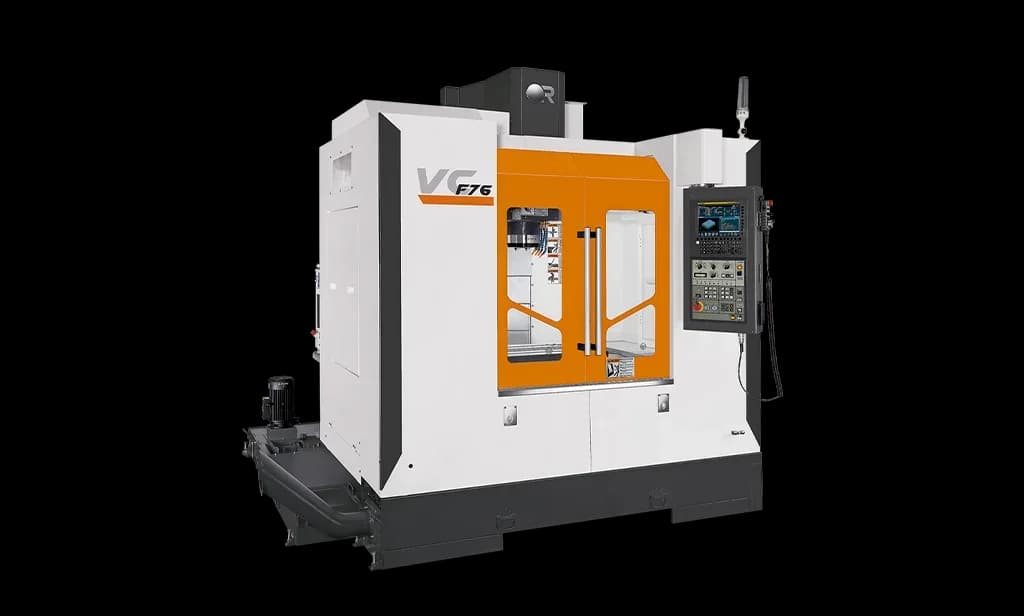

Vcenter-F76
An entry-level, fighting-market vertical machining center built on linear guideways for shops that need dependable 3-axis milling without paying for features…
- Travels (X/Y/Z)
- 760 / 500 / 510 mm
- Rapid feeds
- 32 / 32 / 32 m/min
- Spindle
- 8000 rpm, 15 kW (S3)
- Guideways / ballscrews
- Roller guideways, Ø40 mm ballscrews
Vertical Machining Center
Vcenter-F106
The larger-table sibling of the Vcenter-F76, giving fighting-market shops a bigger work envelope on the same linear-guideway, roller-ballscrew platform.
- Travels (X/Y/Z)
- 1060 / 600 / 560 mm
- Rapid feeds
- 32 / 32 / 32 m/min
- Spindle
- 8000 rpm, 15 kW (S3)
- Guideways / ballscrews
- Roller guideways, Ø40 mm ballscrews
Vertical Machining Center

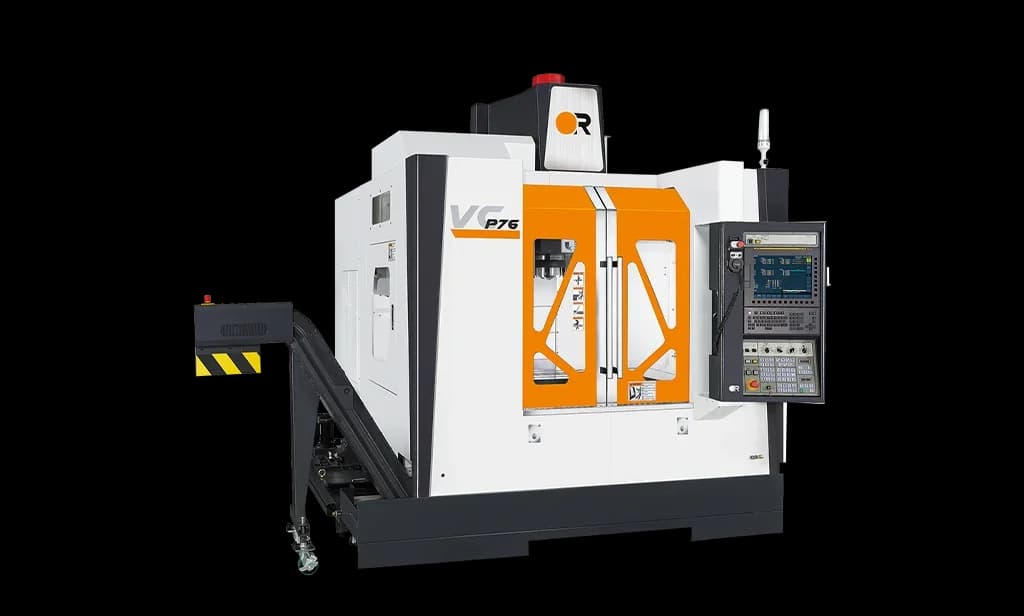

Vcenter-P76
A high-precision, high-performance 3-axis vertical machining center with an electrical counterbalance and roller guideways, built for shops that need faster…
- Travels (X/Y/Z)
- 760 / 500 / 510 mm
- Rapid feeds
- 48 / 48 / 32 m/min
- Spindle
- 12,000 rpm, 18.5 kW (S3)
- Tooling
- BBT-40 / 30 tools
Horizontal Machining Center

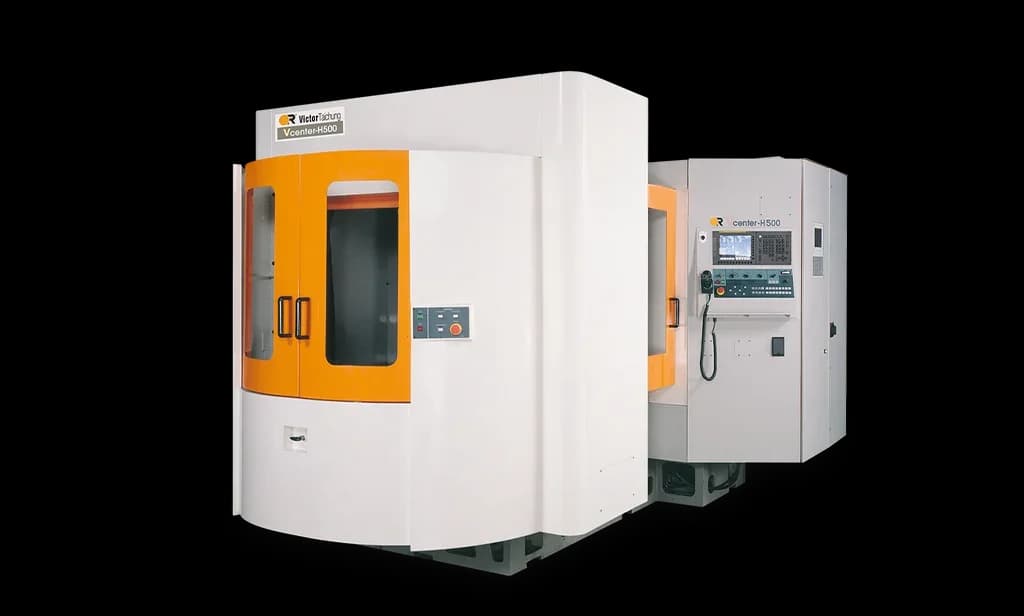

Vcenter-H500
Victor's HMC built on the same quality and reliability standard as its machining centers for over 40 years, engineered for continuous cutting with minimal…
- Design goal
- Continuous cutting ability with minimal downtime
- Lineage
- Successor design philosophy to the Vcenter-H630
- Structure
- T structure with LM guideways
Vertical Machining Center

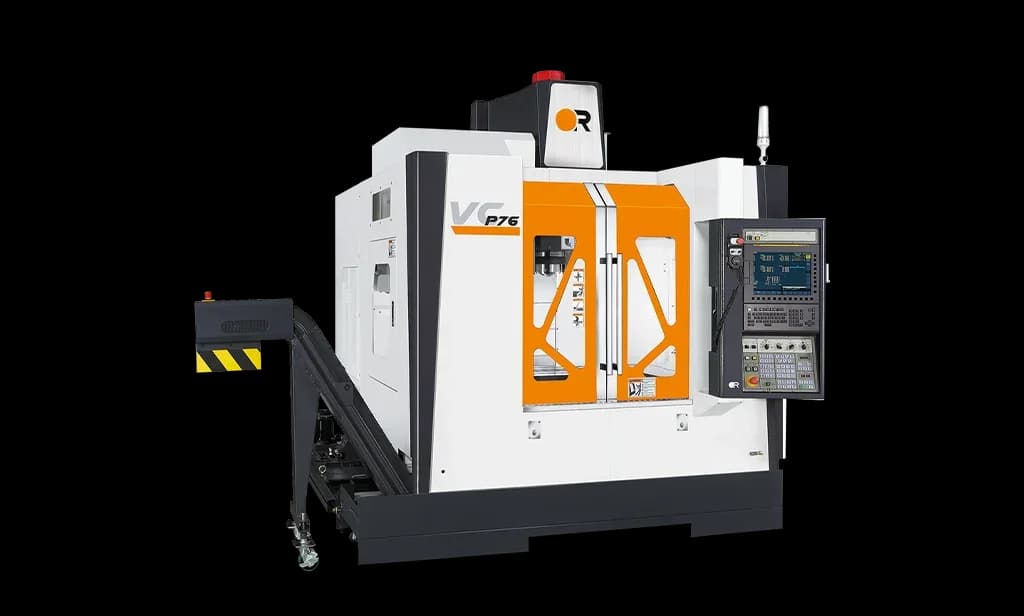

Vcenter-P76APC
An automatic-pallet-change version of the Vcenter-P76, seating the APC mechanism on the ground for extra rigidity so shops can keep the spindle cutting while…
- Pallet dimension
- 720 x 400 mm
- Pallet exchange time
- ~15 seconds (incl. air sealing detection)
- Control layout
- Control panel on right side for easy operation
- Options
- Linear scales and 4th axis can be installed
Vertical Machining Center

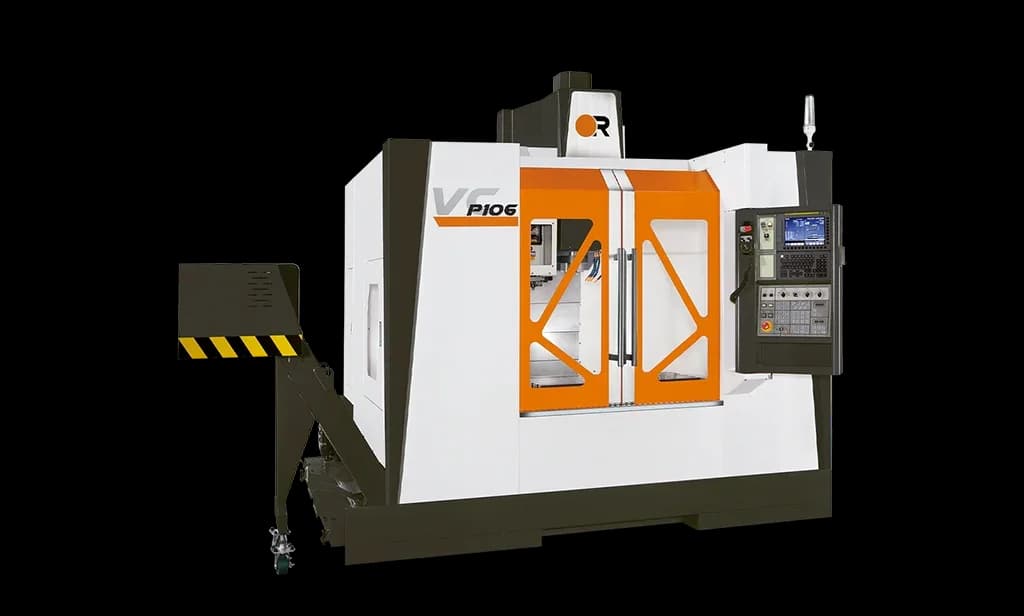

Vcenter-P106
A mid-size step up in the Vcenter-P line, pairing a larger table with the same 12,000 rpm/18.5 kW spindle and roller-guideway construction for…
- Travels (X/Y/Z)
- 1060 / 600 / 560 mm
- Rapid feeds
- 48 / 48 / 32 m/min
- Spindle
- 12,000 rpm, 18.5 kW (S3)
- Tooling
- BBT-40 / 30 tools
Vertical Machining Center

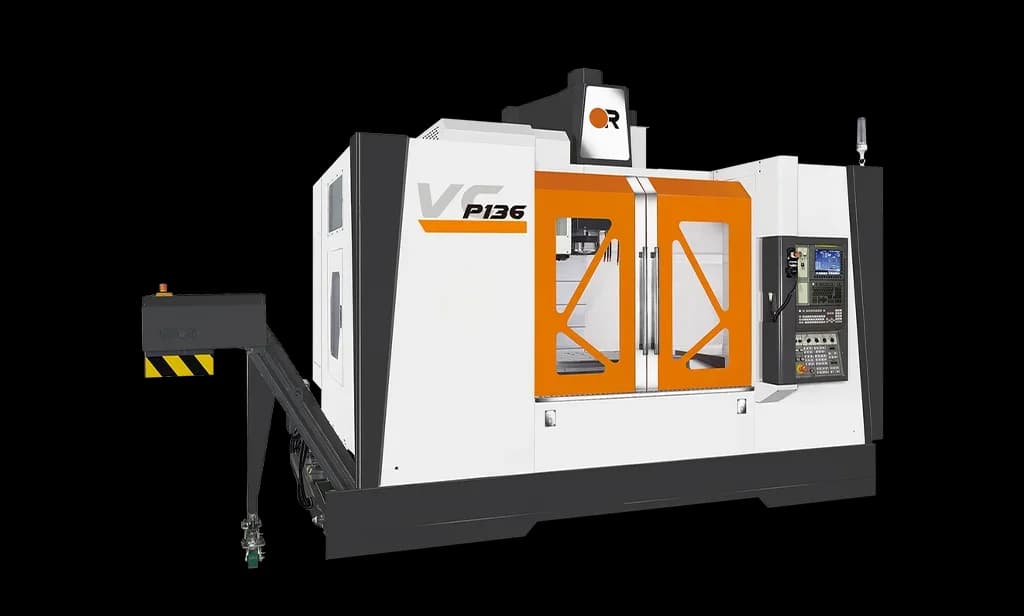

Vcenter-P136
The largest-table model in the Vcenter-P range, built for shops running bigger parts while keeping the line's 12,000 rpm spindle and roller-guideway precision.
- Travels (X/Y/Z)
- 1360 / 700 / 700 mm
- Rapid feeds
- 32 / 32 / 32 m/min
- Spindle
- 12,000 rpm, 18.5 kW (S3)
- Tooling
- BBT-40 / 30 tools
Horizontal Machining Center

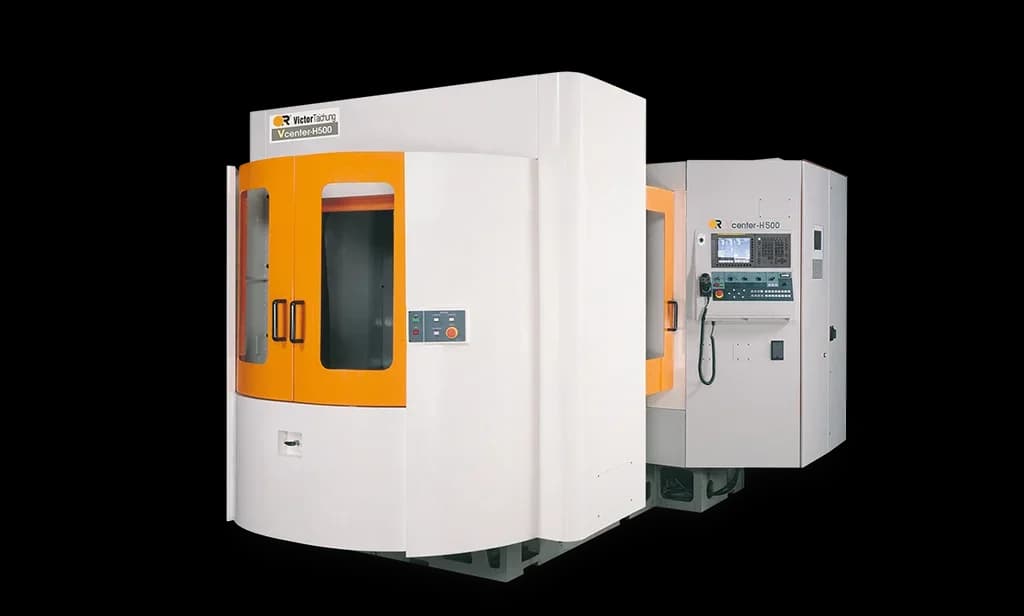

Vcenter-H500HS
The high-speed (HS) variant of the Vcenter-H500, tuned for faster axis rapids and tool changeover for shops prioritizing cycle time over heavy-cut torque.
- Variant focus
- Higher-speed rapids and tool changeover vs. base H500
- Structure
- T structure with LM guideways
- Pallet change
- APC-equipped
Vertical Machining Center

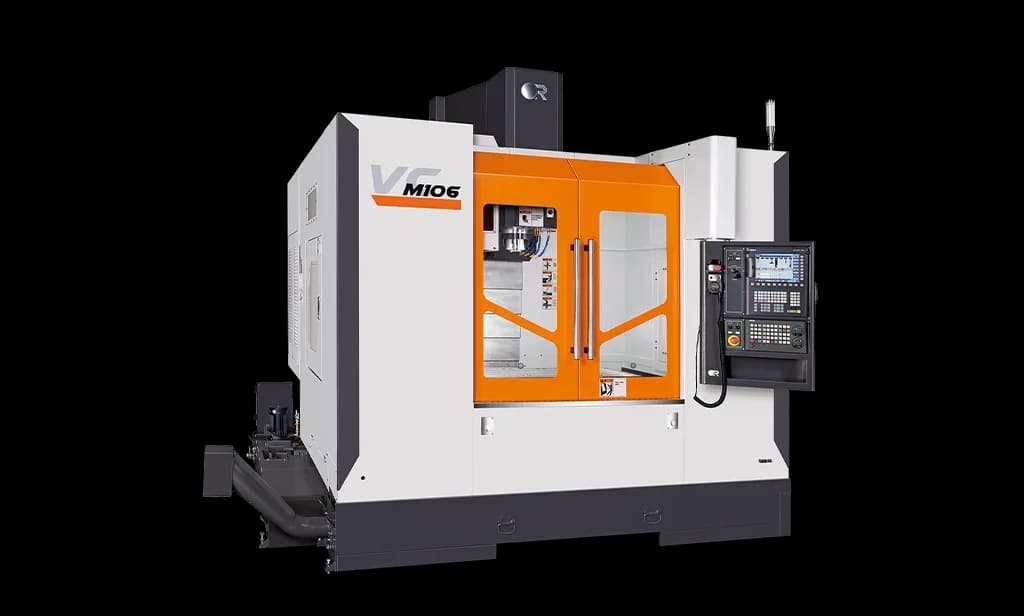

Vcenter-M106
A Siemens-controlled variant in the Vcenter precision-machining-center family, running a higher-speed BBT-40 spindle on roller-type linear-motion guideways…
- Travels (X/Y/Z)
- 1060 / 700 / 700 mm
- Rapid feeds
- 32 / 32 / 32 m/min
- Control
- Siemens SINUMERIK 828D (10.4")
- Spindle
- BBT-40, 15,000 rpm, 23.25 kW
Vertical Machining Center

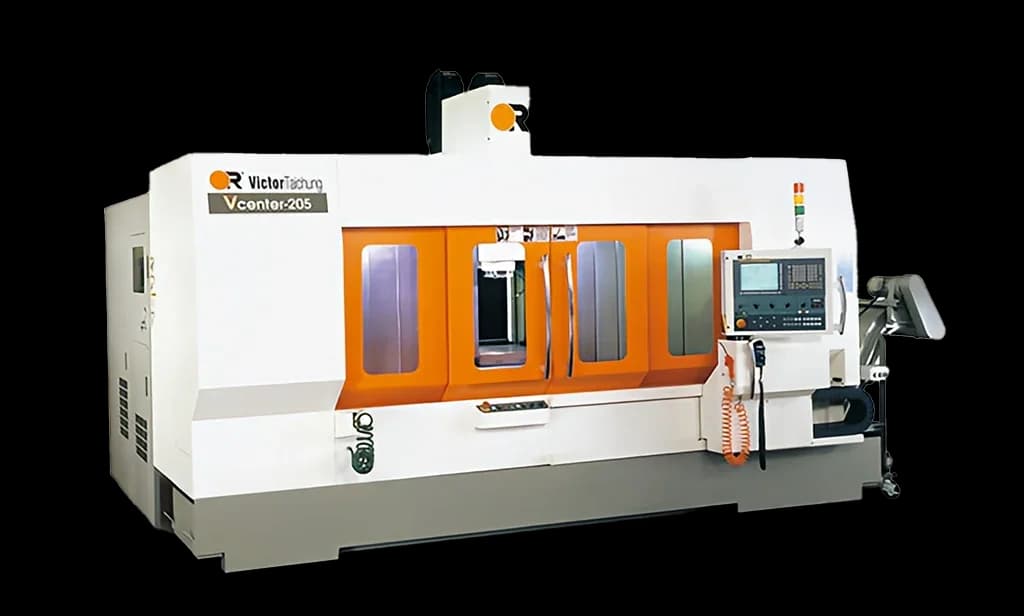

Vcenter-205
A moving-column machining center with a long fixed table for heavier and longer parts, using a directly coupled spindle and central partition so it can…
- X-axis travel
- 2050 mm (traveling column)
- Rapid feeds
- 30 m/min (X/Y/Z)
- Spindle
- Directly coupled spindle (avoids belt vibration)
- Table
- Long fixed table for heavier/longer loads
Horizontal Machining Center

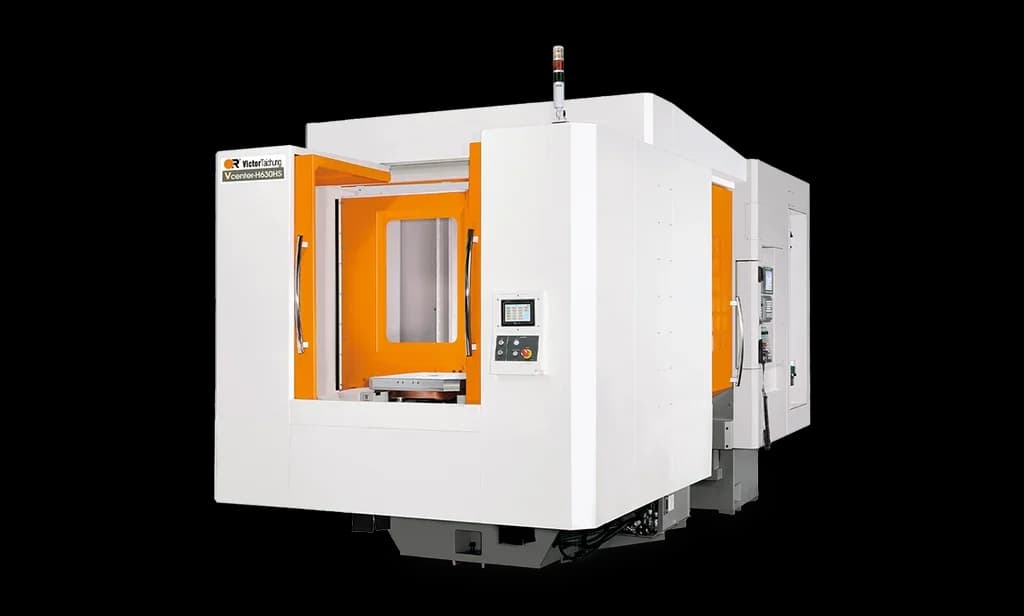

Vcenter-H630HS
A high-speed HMC built for fast axis rapids and tool changeover, with a built-in motor-spindle and oversized linear guideways for a rotary-style APC that…
- Speed focus
- High speed on axis rapid feed and tool changeover
- Spindle
- Built-in motor-spindle
- Pallet change
- Rotary-style APC
- Guideways
- Oversized linear guideways
Vertical Machining Center

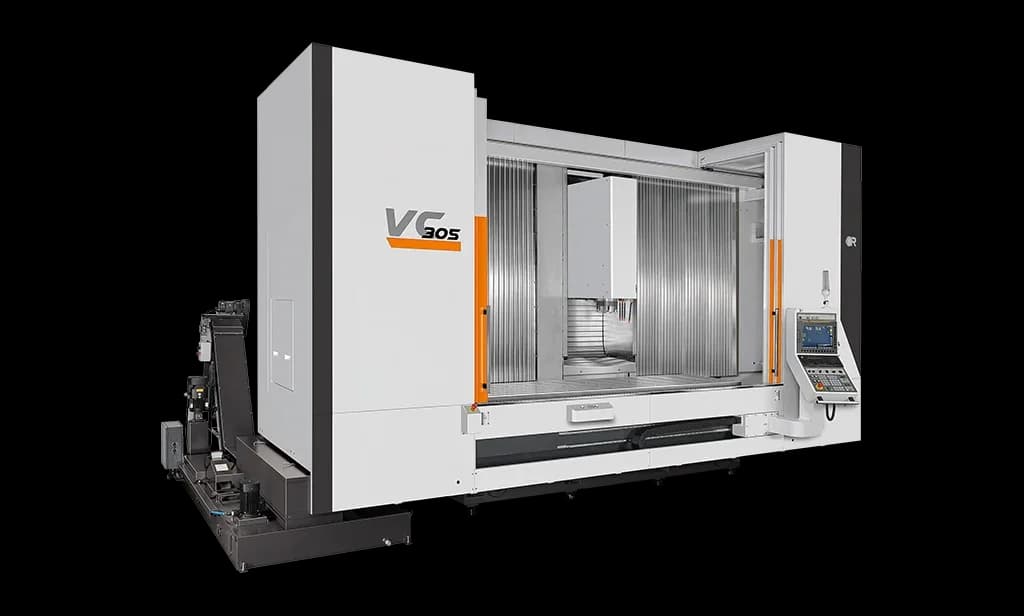

Vcenter-305
The longer-travel moving-column model above the Vcenter-205, extending X-axis reach to 3050 mm for large or long fixed-table parts while keeping the directly…
- X-axis travel
- 3050 mm (traveling column)
- Y-axis travel
- 760 mm
- Rapid feeds
- 32 m/min
- Spindle
- Directly coupled spindle (avoids belt vibration)
Wheel Machining Center

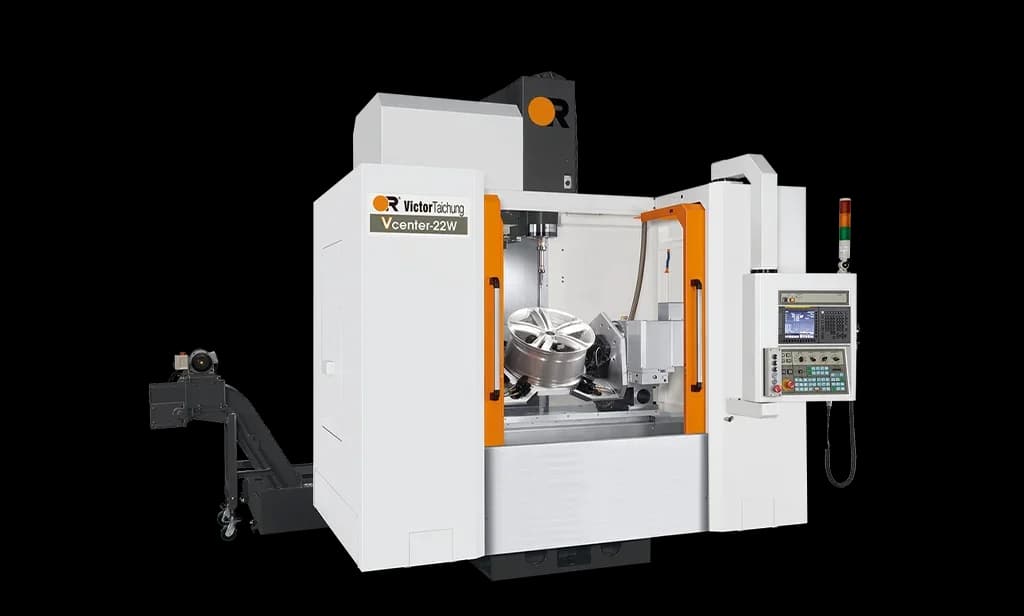

Vcenter-22W
A 4-axis vertical machining center adapted from Victor's VMT-X multi-tasking platform for wheel valve-hole and PCD bolt-circle machining in one setup.
- Configuration
- 4-axis vertical machining center
- Y-axis travel
- 260 mm (10.2")
- Turning spindle
- 4200 rpm / 15 kW, 8" chuck (or 3500 rpm / 22 kW, 10" chuck)
- Milling spindle
- 12,000 rpm / 22 kW
Wheel Machining Center
Vcenter-24W
The larger-wheel-capacity version of the Vcenter-22W alloy wheel machining center, for OEM wheel manufacturers running bigger wheel diameters.
- Configuration
- 4-axis vertical machining center
- Application
- Alloy wheel valve-hole and PCD bolt-circle machining
Vertical Machining Center

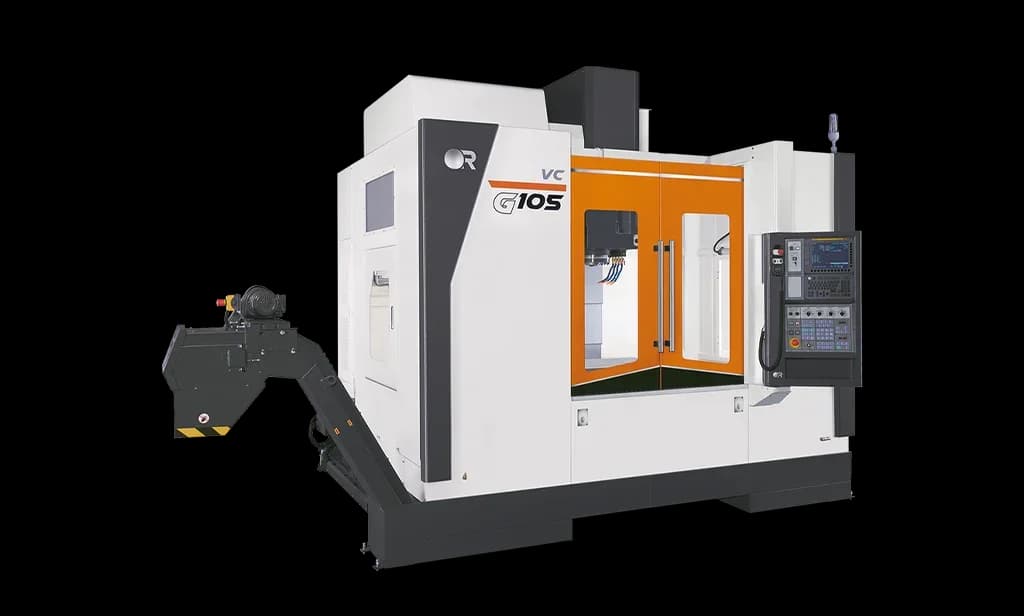

Vcenter-G105
A box-way vertical machining center built for heavy, steady cutting, with a gearhead spindle and box slideways on all axes for shops that need rigidity over…
- Travels (X/Y/Z)
- 1050 / 600 / 600 mm
- Spindle
- Gearhead BBT-50, 6000 rpm
- Guideways
- Box slideways on all axes
- Ballscrews
- Ø50 mm
Vertical Machining Center

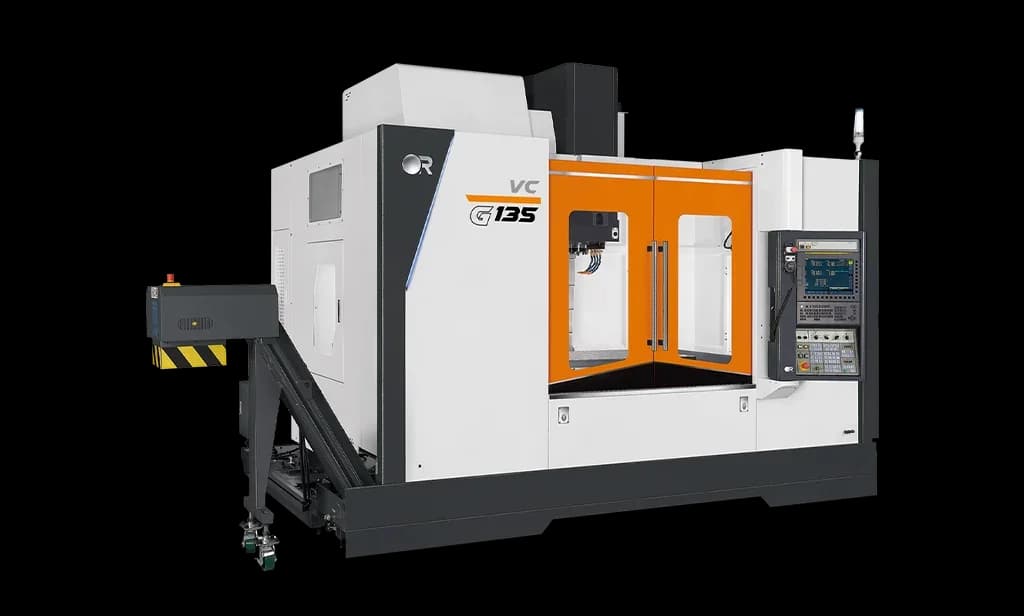

Vcenter-G135
The mid-size box-way machining center in the Vcenter-G line, adding table and Z-travel over the G105 for heavier or larger parts at the same gearhead-spindle…
- Travels (X/Y/Z)
- 1350 / 700 / 700 mm
- Spindle
- Gearhead BBT-50, 6000 rpm
- Guideways
- Box slideways on all axes
- Ballscrews
- Ø50 mm
Horizontal Machining Center

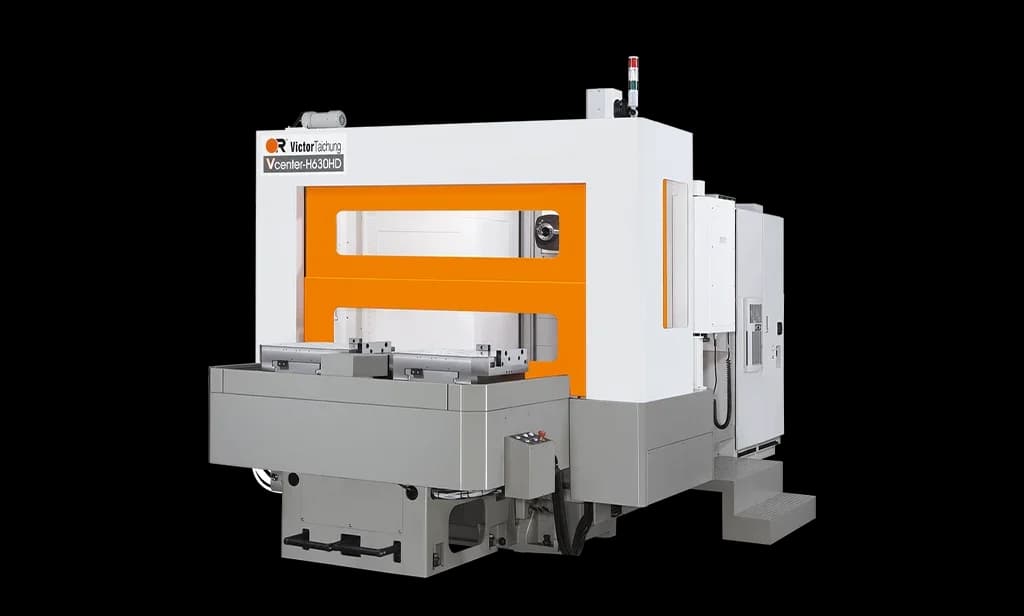

Vcenter-H630HD
The heavy-duty (HD) counterpart to the H630HS, built for low-rpm, high-torque heavy cutting on a reverse-T box-slideway structure with a gearboxed spindle and…
- Cutting style
- Heavy cutting at low rpm with high torque
- Structure
- Reverse T structure with box slideways
- Column
- Moving along Z-axis
- Pallet change
- Parallel-type APC
Wheel Machining Center

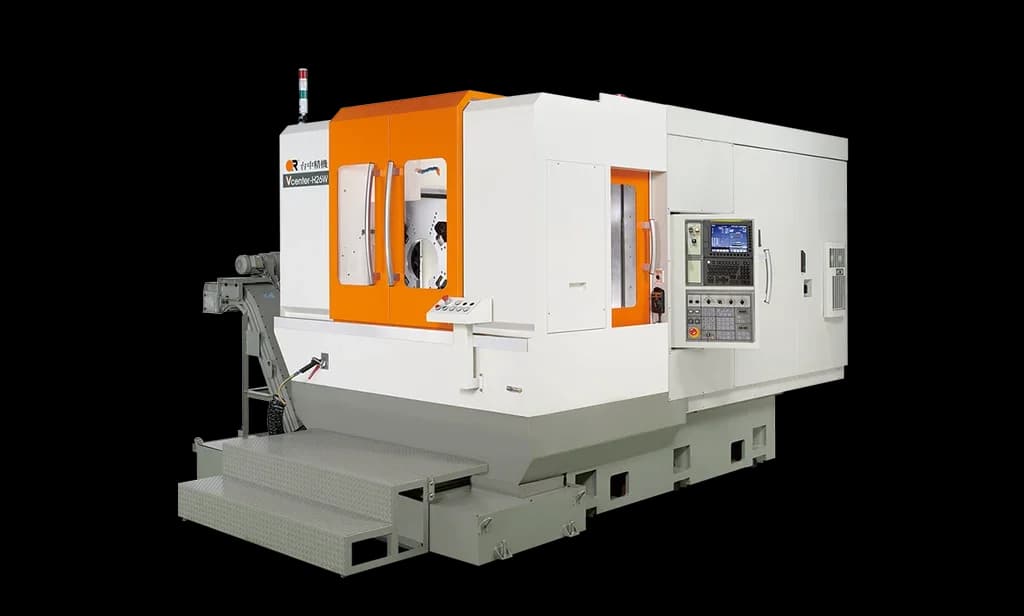

Vcenter-H26W
A horizontal machining center built specifically for rear boring of the wheel valve hole, covering 13" to 26" wheels for OEM manufacturers that need to bore…
- Wheel size
- 13" – 26"
- Application
- Rear boring of wheel valve hole; PCD bolt hole boring
- Configuration
- Horizontal machining center
Vertical Machining Center

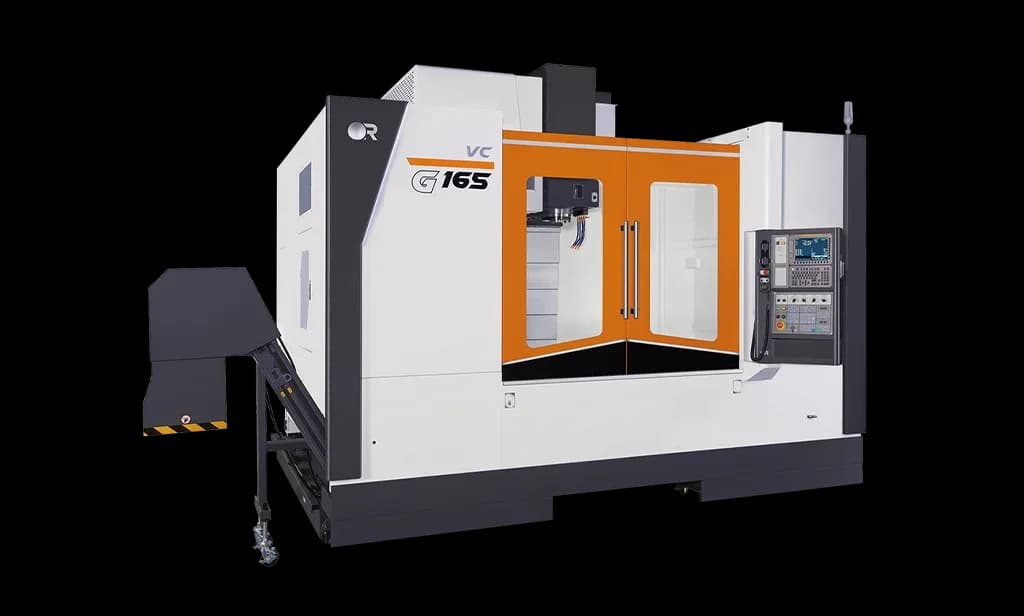

Vcenter-G165
The largest box-way model in the Vcenter-G range, built for the heaviest parts the series handles while keeping full box slideways for maximum steadiness…
- Travels (X/Y/Z)
- 1650 / 850 / 900 mm
- Spindle
- Gearhead BBT-50, 6000 rpm
- Guideways
- Box slideways on all axes
- Ballscrews
- Ø50 mm
Horizontal Machining Center

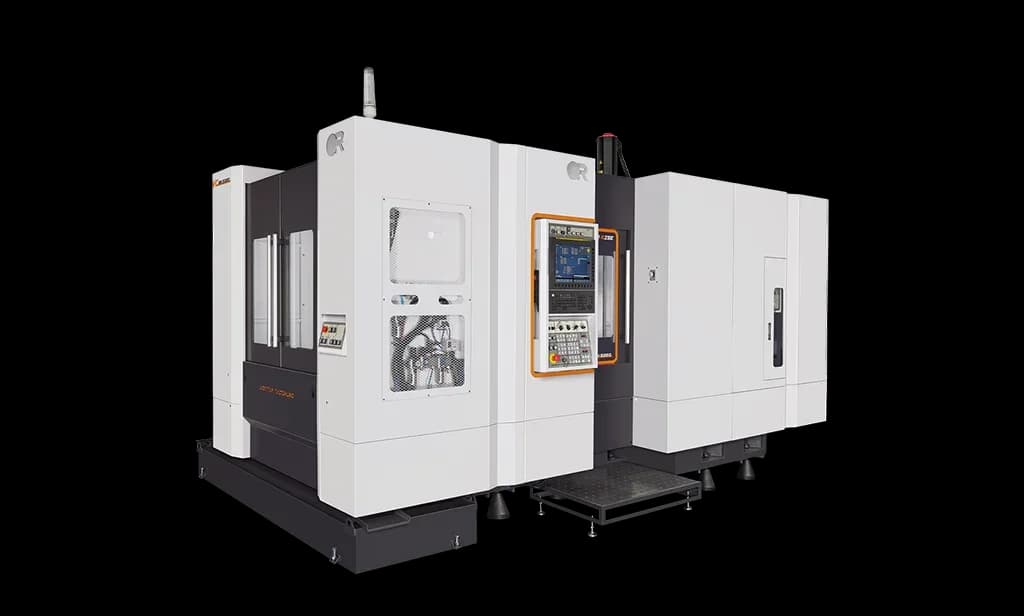

Vcenter-NH5000
A compact horizontal machining center with a directly coupled spindle, sized to ship in a standard 40' HQ container, for shops that want HMC pallet-based…
- Spindle
- Directly coupled, 12,000 rpm, 15/18.5 kW
- Rapid feeds
- 48 / 48 / 48 m/min (X/Y/Z)
- Travels (X/Y/Z)
- 800 / 700 / 800 mm
- Guideways
- Roller-type LM guideways, grease lubrication
Victor Taichung Machining Centers Questions
Answers to common questions about our victor taichung machining centers products.
AMT offers 26 Victor Taichung Vcenter machines: 12 vertical machining centers, 7 horizontal machining centers, 4 five-axis machining centers and 3 wheel machining centers.
Yes. The Vcenter-AX line (AX380, AX630 and AX800) and the Vcenter-FX400 are 5-axis machining centers.
Victor Taichung machines are quoted per configuration and application. Contact AMT Machine Tools with your parts and production requirements, call 416-675-7760, or request a quote online and we will configure and quote the right machine.
