Victor Taichung Machining Centers

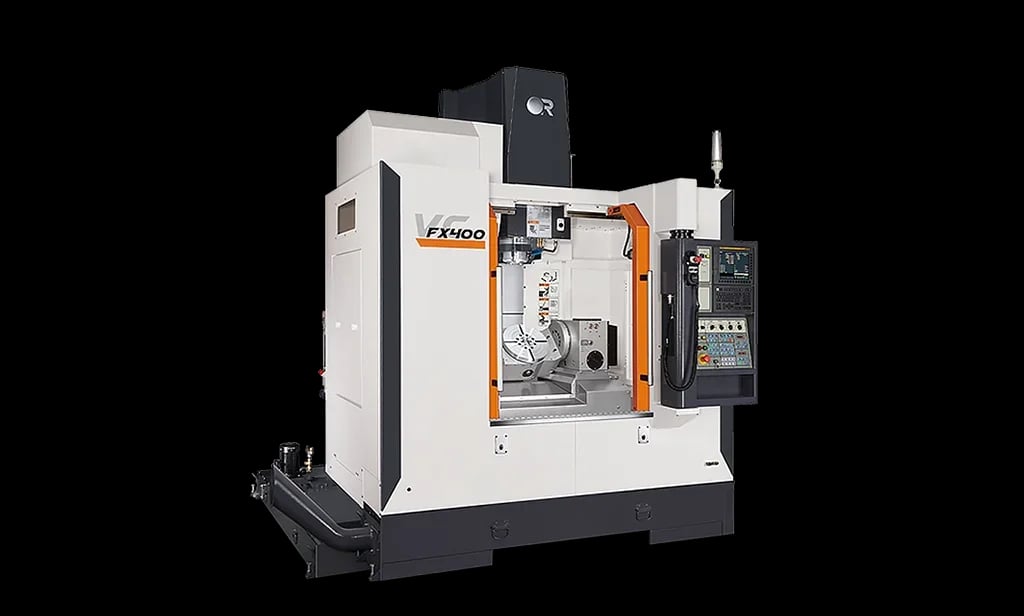

Vcenter-FX400
by Victor Taichung
An entry-priced 5-axis vertical machining center for small parts, with a trunnion tilting table and a Fanuc control built specifically for 4+1 axis machining.
600 / 500 / 500 mm
Travels (X/Y/Z)
32 / 32 / 32 m/min
Rapid feeds
Ø400 x H160 mm + Ø220 x H250 mm
Max. part dimension
Vcenter-FX400 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Rapid feeds: 32 / 32 / 32 m/min
- Control: Fanuc 0i-MF Plus (4+1 axis)
- Spindle: BBT-40, 12,000 rpm, directly coupled
Built-In Extras
- Travels (X/Y/Z): 600 / 500 / 500 mm
- Max. part dimension: Ø400 x H160 mm + Ø220 x H250 mm
- Table: Trunnion type tilting table, Ø320 mm
Victor Taichung Vcenter-FX400 Technical Details
Complete specifications, standard features, and optional upgrades.
- Travels (X/Y/Z)
- 600 / 500 / 500 mm
- Rapid feeds
- 32 / 32 / 32 m/min
- Max. part dimension
- Ø400 x H160 mm + Ø220 x H250 mm
- Table
- Trunnion type tilting table, Ø320 mm
- Control
- Fanuc 0i-MF Plus (4+1 axis)
- Spindle
- BBT-40, 12,000 rpm, directly coupled
| Travels (X/Y/Z) | 600 / 500 / 500 mm |
| Rapid feeds | 32 / 32 / 32 m/min |
| Max. part dimension | Ø400 x H160 mm + Ø220 x H250 mm |
| Table | Trunnion type tilting table, Ø320 mm |
| Control | Fanuc 0i-MF Plus (4+1 axis) |
| Spindle | BBT-40, 12,000 rpm, directly coupled |
Vcenter-FX400 Questions
Answers to common questions about the Vcenter-FX400.
The Vcenter-FX400 is a 5-axis machining center from Victor Taichung. An entry-priced 5-axis vertical machining center for small parts, with a trunnion tilting table and a Fanuc control built specifically for 4+1 axis machining.
Travels (X/Y/Z): 600 / 500 / 500 mm; Rapid feeds: 32 / 32 / 32 m/min; Max. part dimension: Ø400 x H160 mm + Ø220 x H250 mm; Table: Trunnion type tilting table, Ø320 mm; Control: Fanuc 0i-MF Plus (4+1 axis); Spindle: BBT-40, 12,000 rpm, directly coupled.
Victor Taichung machines are quoted per configuration and application. Contact AMT Machine Tools with your parts and production requirements, call 416-675-7760, or request a quote online and we will configure and quote the right machine.
